Запчасти Case IH STX325 (02-25) - CRANKSHAFT 6TAA-8304 / 6TAA-9004 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

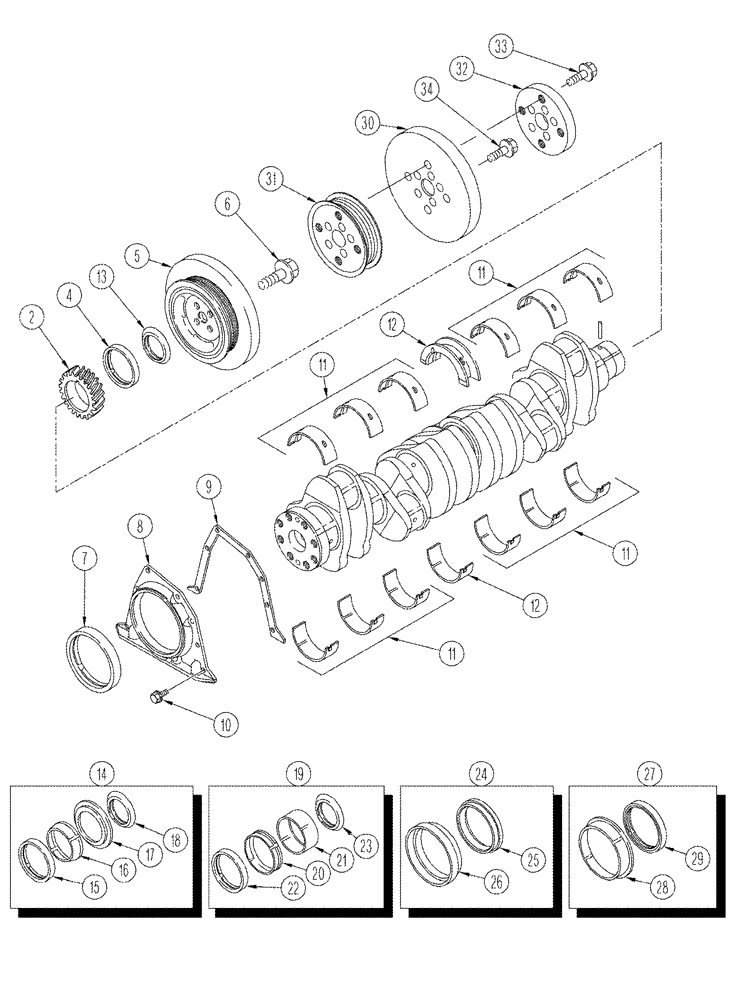

Схема запчастей Case IH STX325 - (02-25) - CRANKSHAFT 6TAA-8304 / 6TAA-9004 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
16
20
12
27
24
2
7
15
22
32
11
34
28
21
26
5
17
14
29
23
33
30
6
12
13
8
19
25
11
4
10
31
11
9
11
18

Артикул

Название

Примечание

Количество

J918986

CRANKSHAFT

6TAA-8304, Includes: Ref. 2 and 3

1шт.

NSS

NOT SOLD SEPARAT

CRANKSHAFT, 6TAA-9004, Includes: Ref. 2 and 3

1шт.

J918986R

REMAN-CRANKSHAFT

6TAA-8304, N.A. only, Includes: Ref. 2 and 3

1шт.

J918986C

CORE-CRANKSHAFT

6TAA-8304

1шт.

1

NSS

NOT SOLD SEPARAT

CRANKSHAFT, 6TAA-8304

1шт.

1

J943033

CRANKSHAFT

6TAA-9004

1шт.

1

J943033R

REMAN-CRANKSHAFT

STX275, STX325, Both CASE IH 4WD TRACTOR, 6TAA-9004 EMISSIONS CERTIFIED ENGINE, BSN JEE0099501

1шт.

1

J943033C

CORE-CRANKSHAFT

Return Number

1шт.

2

J918776

GEAR

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL, see Page(s) 2-71, order A77790

1шт.

5

J925567

DAMPER

vibration, 6TAA-8304

1шт.

6

J906733

BOLT,Hex Flg, M14 x 1.5 x 35mm, Cl 12.9

M14 x 35, 6TAA-8304

4шт.

7

NSS

NOT SOLD SEPARAT

SEAL, see Page(s) 2-71, order J353978

1шт.

8

J933384

REAR COVER

1шт.

9

J914301

GASKET

1шт.

10

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

8шт.

11

J945930

BEARING SET

main, standard

6шт.

11

J945931

BEARING SET

main, oversize, 0.25 mm

6шт.

11

J945932

BEARING SET

main, oversize, 0.50 mm

6шт.

11

J945933

BEARING SET

main, oversize, 0.75 mm

6шт.

11

J945934

BEARING SET

main, oversize, 1.00 mm

6шт.

12

J945929

THRUST BEARING

thrust, standard

1шт.

12

J945922

THRUST BEARING

thrust, oversize, 0.25 mm

1шт.

12

J945923

THRUST BEARING

thrust, oversize, 0.50 mm

1шт.

12

J945924

THRUST BEARING

thrust, oversize, 0.75 mm

1шт.

12

J945925

THRUST BEARING

thrust, oversize, 1.00 mm

1шт.

12

J945926

THRUST BEARING

thrust, standard, oversize, 0.25 mm

1шт.

12

J945927

THRUST BEARING

thrust, standard, oversize, 0.50 mm

1шт.

12

J945928

THRUST BEARING

thrust, oversize, 0.50 mm

1шт.

13

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

order A77790

1шт.

14

A77790

SEAL KIT

crankshaft, front, consists of: Ref. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL

1шт.

16

NSS

NOT SOLD SEPARAT

TOOK

1шт.

17

NSS

NOT SOLD SEPARAT

TOOL

1шт.

18

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

1шт.

19

A77808

SERVICE KIT

crankshaft, front, consists of: Ref. 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

21

NSS

NOT SOLD SEPARAT

TOOL

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL

1шт.

23

J924987

SHIELD,77.14mm ID x 89.38mm OD x 6.35mm Thk

1шт.

24

J934486

SERVICE KIT

crankshaft, rear, consists of: Ref. 25 and 26

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

27

A77810

SERVICE KIT

crankshaft, rear, consists of: Ref. 28 and 29

1шт.

28

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

29

NSS

NOT SOLD SEPARAT

SEAL

1шт.

30

J941092

DAMPER

6TAA-9004

1шт.

31

J943978

PULLEY,199.42mm OD

6TAA-9004

1шт.

32

J943953

ADAPTER

6TAA-9004

1шт.

33

854-12055

BOLT,Hvy Hex, M12 x 55mm, Cl 10.9

4шт.

34

J914118

FLANGE BOLT,Hex, M14 x 1.5 x 60mm, Cl 12.9

M14 x 60, 6TAA-9004

5шт.

Выбрано товаров: 52
