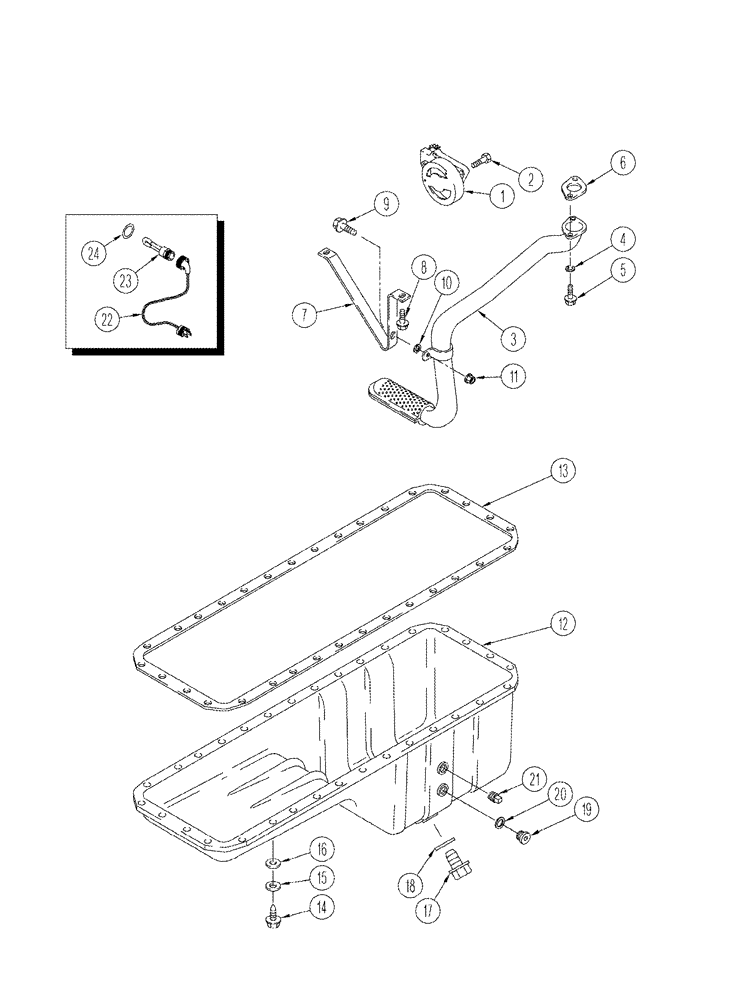

Запчасти Case IH STX325 (02-18) - OIL PUMP AND OIL PAN 6TAA-8304 / 6TAA-9004 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

J948072

ENGINE OIL PUMP

1шт.

1

JR948072

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. Only

1шт.

1

JC948072

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

J900677

BOLT,Hex

M8 x 30

4шт.

3

J910787

TUBE

6TAA-8304

1шт.

3

J944264

TUBE,1.25" OD

6TAA-9004

1шт.

4

J926865

SPACER,6.9mm ID x 12.7mm OD x 14mm L

2шт.

5

845-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

2шт.

6

J914302

GASKET

1шт.

7

J927611

BRACKET

1шт.

8

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

2шт.

9

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

1шт.

10

J910960

WASHER

1шт.

11

J906216

FLANGE NUT

M6

1шт.

12

J914013

PAN, ENGINE OIL

PAN, OIL 6TAA-8304

1шт.

12

J944258

PAN, ENGINE OIL

PAN, OIL 6TAA-9004

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL, order A77679

1шт.

14

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

M8 x 25

32шт.

15

J910266

LOCK WASHER

32шт.

16

J908316

WASHER

M9 x 16 x 1

32шт.

17

J924147

PLUG,M18 x 1.5

M18

1шт.

18

J920773

SEALING WASHER

1шт.

19

J924148

PLUG,M22 x 1.5

M18

1шт.

20

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

21

86637727

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

1-1/4, 6TAA-9004

1шт.

A77999

GASKET KIT

Includes: Ref. 6, 13, 18 and J920773

1шт.

A77580

SERVICE KIT

heater, 120V, Includes: Ref. 22 and 23

1шт.

22

J906388

HEATING ELEMENT

1шт.

23

196466A1

ELECTRIC CABLE

1829 mm (72 in.)

1шт.

A77666

SERVICE KIT

240V, Includes: Ref. 22 and 23

1шт.

22

J906389

HEATING ELEMENT

1шт.

23

J905114

ELECTRIC CABLE

1829 mm (72 in.)

1шт.

24

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.
