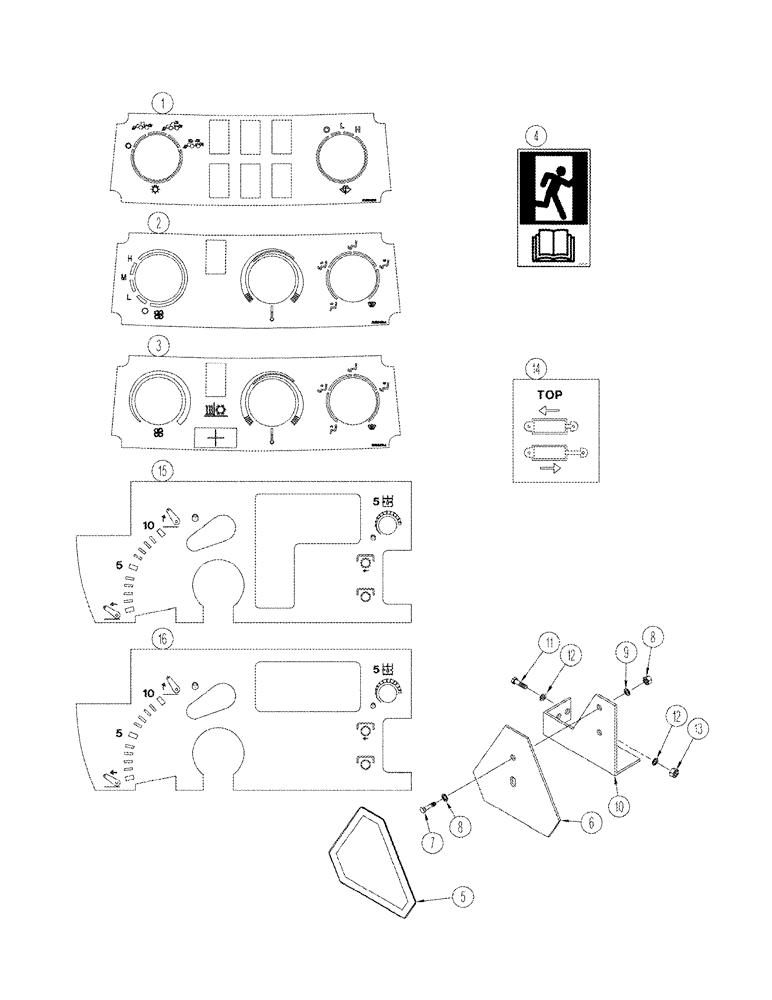

Запчасти Case IH STX325 (09-56) - DECALS (09) - CHASSIS/ATTACHMENTS

1

308645A3

DECAL

light panel

1шт.

2

308646A4

DECAL

climate control, standard cab

1шт.

3

308647A4

DECAL

automatic temperature control, deluxe cab, luxury cab

1шт.

4

329051A1

DECAL

emergency exit

1шт.

311860A1

EMBLEM

slow moving vehicle, consists of: Ref. 5 and 6

1шт.

5

311858A1

DECAL

SMV emblem

1шт.

6

NSS

NOT SOLD SEPARAT

PLATE

1шт.

7

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

2шт.

8

425-104

NUT,1/4"-20, Cl 5

2шт.

9

495-11028

WASHER,1/4", SAE

2шт.

10

398763A1

BRACKET

1шт.

11

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

14

389794A1

DECAL

hydraulic coupler

1шт.

15

375194A1

DECAL

with three-point hitch, right-hand

1шт.

16

348370A1

DECAL

without three-point hitch, right hand

1шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
