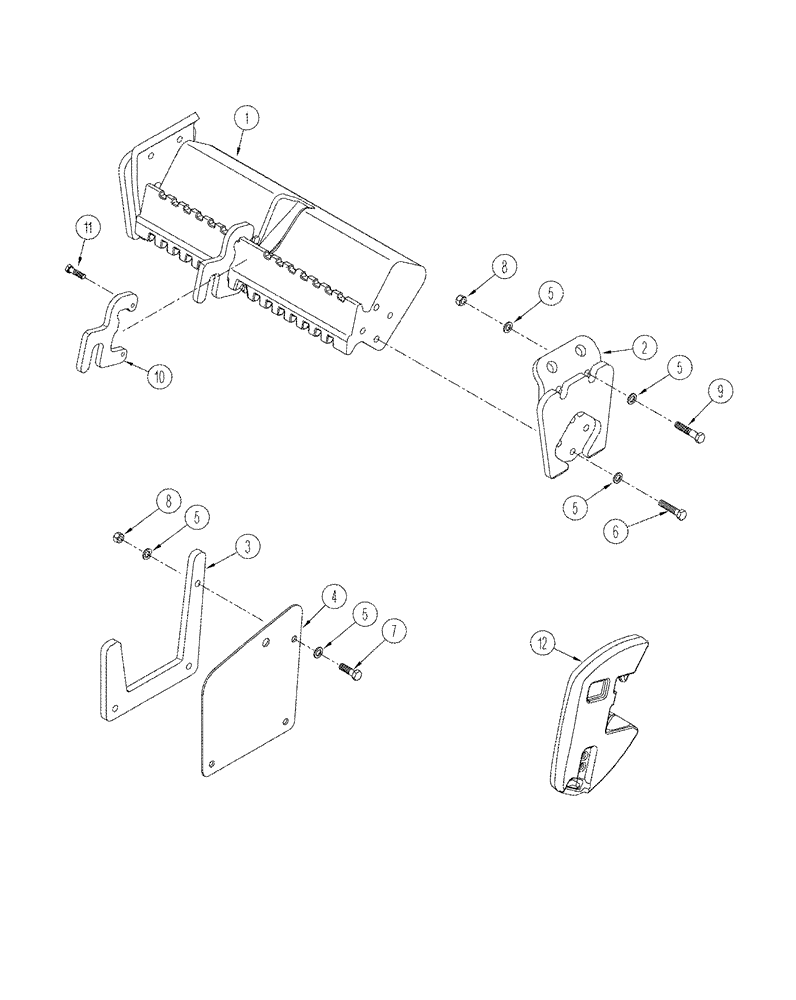

Запчасти Case IH STX325 (09-49) - WEIGHTS REAR FRAME (09) - CHASSIS/ATTACHMENTS

1

369760A1

WEIGHT

hanger, order from machinery price list

1шт.

2

362026A1

BRACKET

2шт.

3

362025A1

BRACKET

support

2шт.

4

379271A1

PLATE

2шт.

5

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

24шт.

6

827-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

8шт.

7

827-20065

BOLT,Hex, M20 x 2.5 x 65mm, Cl 10.9, Full Thd

6шт.

8

829-1420

NUT,M20, Cl 10

8шт.

9

827-20100

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

2шт.

10

379269A2

PLATE

lock

2шт.

11

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

12

224383A2

WEIGHT

45 kg (100 lb.)

1шт.
