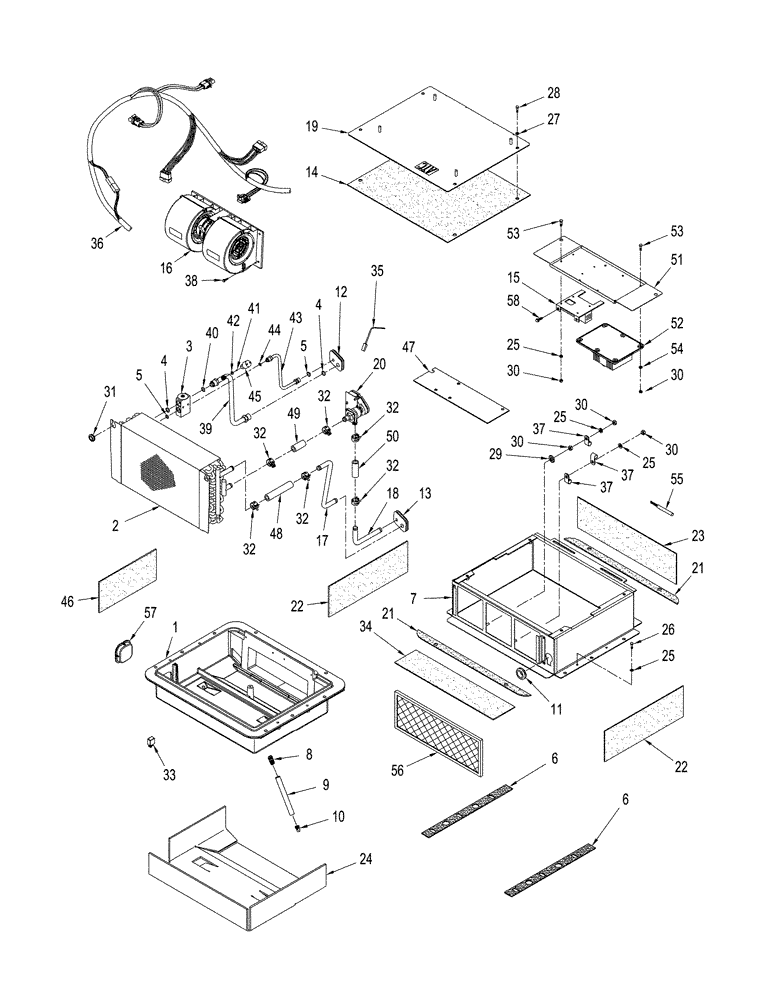

Запчасти Case IH STX325 (09-44) - AIR CONDITIONING CLIMATE CONTROL UNIT With Auto Temp Control (09) - CHASSIS/ATTACHMENTS

316951A2

AIR CONDITIONER

consists of: Ref. 1 - 57

1шт.

1

322996A1

BOX

1шт.

2

322846A1

CORE

evaporator, Includes: Ref. 3 - 5

1шт.

3

1990756C2

VALVE

1шт.

4

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

2шт.

5

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

2шт.

6

322994A1

GASKET,3mm Thk

mounting

4шт.

7

322831A2

CASE

1шт.

8

1250522C3

FITTING

2шт.

9

1977334C1

HOSE

610 mm (24-1/8 in.), cut from 198091CX

2шт.

10

109239C2

CHECK VALVE

2шт.

11

248-2381

GROMMET,1" ID x 1 3/8" Groove Dia

1шт.

12

322989A1

GROMMET

1шт.

13

322990A1

GROMMET

1шт.

14

322992A1

GASKET,3mm Thk

1шт.

15

397780A1

ECU

blower motor, 12V

1шт.

15

397780A1R

REMAN ELECT CONTROL

blower motor, 12V

1шт.

15

397780A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

16

323610A1

BLOWER

1шт.

16

84222524R

REMAN-BLOWER

1шт.

16

84222524C

CORE-BLOWER

Return Number

1шт.

17

322985A1

HEATER TUBE

outlet

1шт.

18

322987A1

HEATER TUBE,0.625" OD, 138.2, 79.2 mm Length

inlet

1шт.

19

323625A1

TOP COVER

1шт.

20

322988A1

VALVE, CONTROL

1шт.

21

322995A1

GASKET,3mm Thk

4шт.

22

322993A1

GASKET

2шт.

23

322991A1

GASKET

1шт.

24

324484A1

INSULATOR

1шт.

25

892-11006

LOCK WASHER,M6

6шт.

26

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

4шт.

27

892-11008

LOCK WASHER,8mm ID

4шт.

29

493-81002

LOCK WASHER,Ext-Int Tooth, 1/4"

1шт.

30

829-1406

NUT,Hex, M6 x 1, Cl 10.9

6шт.

31

248-1243

GROMMET,1/2" ID x 13/16" Groove Dia, Diag Cut

2шт.

32

1954736C1

HOSE CLAMP,#24

6шт.

33

105849A1

RELAY

20 amp

1шт.

34

327306A1

GASKET

1шт.

35

323016A1

SENSOR

1шт.

36

397704A1

WIRE HARNESS

1шт.

37

515-2195

CLAMP,3/8", Insul, 1/4" Bolt

3шт.

38

281-14512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

4шт.

39

322839A1

TUBE,16mm OD, 211.5, 159.8mm Length

Includes: Ref. 40 - 42

1шт.

40

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

41

1250594C2

CORE

Valve

1шт.

42

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

43

322840A1

TUBE,10mm OD, 158.4, 163.9mm L

Includes: Ref. 44

1шт.

44

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

45

284272A2

PRESSURE SWITCH

low pressure

1шт.

46

324484A1

INSULATOR

1шт.

47

397702A1

BRACKET

mounting

1шт.

48

1321290C2

HEATER HOSE,15.50 mm ID x 127.00 mm

Cut from 97252CX

1шт.

49

324022A1

HEATER HOSE,15.50 mm ID x 54.00 mm

Cut from 97252CX

1шт.

50

324023A1

HEATER HOSE,15.50 mm ID x 64.00 mm

Cut from 97252CX

1шт.

51

397702A1

BRACKET

1шт.

52

411438A1

CONTROL

1шт.

52

87429902R

REMAN-MODULE

1шт.

52

87429902C

CORE-MODULE

Return Number

1шт.

53

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

54

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

55

323015A1

SENSOR

air return

1шт.

56

386751A1

CAB FILTER

recirculated air

1шт.

57

368313A1

PLASTIC PLUG

1шт.

58

280-1448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

2шт.

59

397780A1

ECU

blower motor, 12V

1шт.

59

397780A1R

REMAN ELECT CONTROL

blower motor, 12V

1шт.

59

397780A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

28

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.
