Запчасти Case IH STX325 (09-41) - AIR CONDITIONING SYSTEM (09) - CHASSIS/ATTACHMENTS

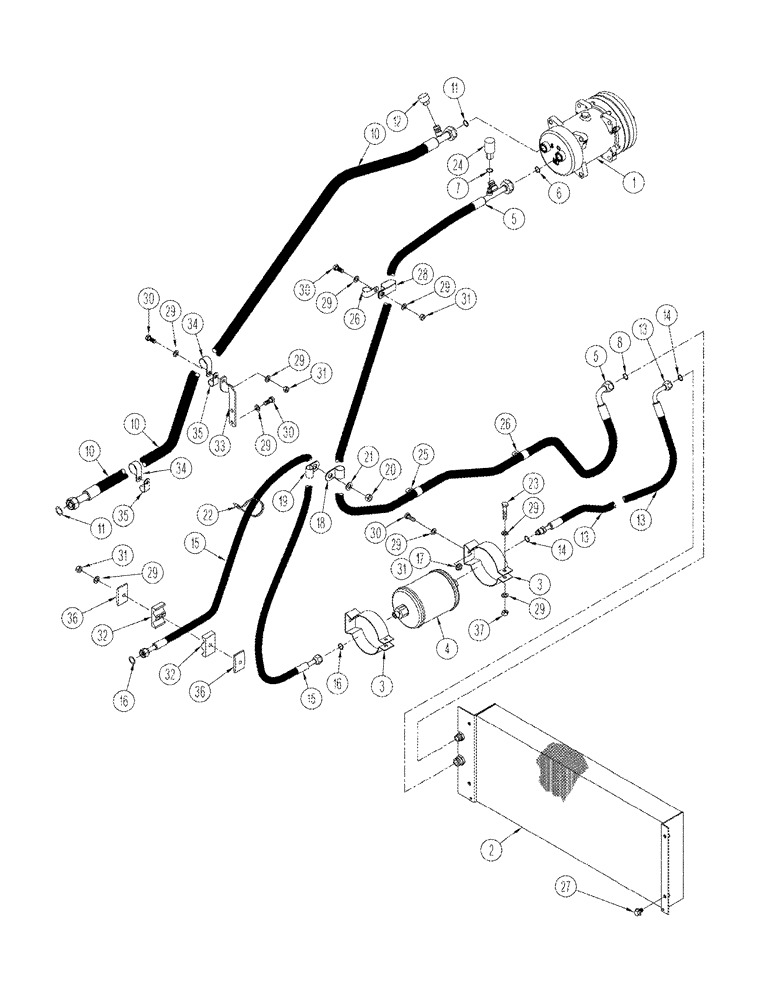

Схема запчастей Case IH STX325 - (09-41) - AIR CONDITIONING SYSTEM (09) - CHASSIS/ATTACHMENTS
29
14
10
12
1
35
16
3
8
7
29
11
15
28
37
3
11
29
30
20
31
5
22
16
26
29
18
5
2
34
17
13
36
31
25
27
13
31
30
34
15
26
19
32
29
33
35
21
4
29
31
10
29
14
10
24
23
30
30
32
29
36
13
29
6

Артикул

Название

Примечание

Количество

1

1999755C3

COMPRESSOR

1шт.

1

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

1

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

1

86993462R

REMAN-COMPRESSOR

STX275, STX325; Reman For New P/N 1999755C3

1шт.

1

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

1

48017123R

REMAN-A/C COMP KIT

Reman Kit -- A/C Compressor, Receiver-Dryer, Valve

1шт.

1

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

2

345226A1

CONDENSER

1шт.

3

70-6589T1

SUPPORT

2шт.

4

295006A1

RECEIVER-DRYER

134a

1шт.

5

367641A1

A/C HOSE

compressor to condenser, Includes: Ref. 6 - 9

1шт.

6

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

7

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

8

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

9

122554A1

CAP

1шт.

10

378073A1

HOSE ASSY.

cab to compressor, ACCUSTEER (1), Includes: Ref. 11 and 12

1шт.

10

367640A1

HOSE ASSY.

cab to compressor, STX 275 (1), STX 325 (1), Includes: Ref. 11 and 12

1шт.

11

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

2шт.

12

122553A1

CAP

1шт.

13

367642A1

HOSE ASSY.

condenser to dryer, Includes: Ref. 14

1шт.

14

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

2шт.

15

378072A1

HOSE ASSY.

dryer to cab, ACCUSTEER (1), Includes: Ref. 16

1шт.

15

367643A1

HOSE ASSY.

dryer to cab, STX 275 (1), STX 325 (1), Includes: Ref. 16

1шт.

16

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

2шт.

17

825-5148

SERRATED NUT,M8, Flg Ser

Accusteer (2)

1шт.

18

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

19

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

20

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

22

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP ACCUSTEER (2)

1шт.

23

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

24

284273A2

SWITCH, A/C HIGH PRE

high pressure

1шт.

25

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Accusteer (1)

1шт.

26

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

STX 275 (3), STX 325 (3), ACCUSTEER (2)

1шт.

27

844-8012

BOLT,M8 x 1.25 x 20.1mm, Cl 8.8

4шт.

28

L101181

CLAMP,0.75" D Clamping pipes x 2

1шт.

29

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

30

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

6шт.

31

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

STX 275 (6), STX 325 (6), ACCUSTEER (3)

1шт.

32

50-2534T1

CLAMP

STX 275 (2), STX 325 (2)

1шт.

33

398725A1

BRACKET

1шт.

34

515-22254

CLAMP,1", Insul, 5/16" Bolt

STX 275 (2), STX 325 (2), ACCUSTEER (3)

1шт.

35

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

STX 275 (1), STX 325 (1), ACCUSTEER (2)

1шт.

36

50-2533T1

PLATE

STX 275 (2), STX 325 (2)

1шт.

37

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.
