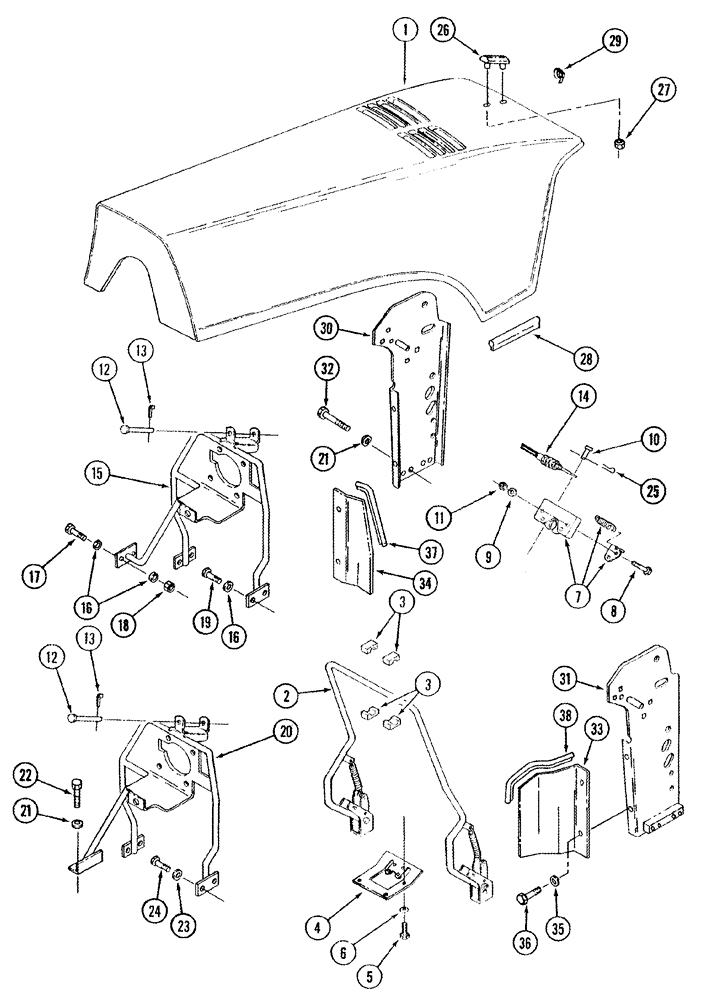

Запчасти Case IH STX325 (09-36) - HOOD AND SUPPORT (09) - CHASSIS/ATTACHMENTS

1

330035A4

HOOD

1шт.

2

313975A2

ARM

lift, rear, see Figure 09-38

1шт.

3

314842A3

BEARING

4шт.

4

352811A2

PLATE

hood latch

1шт.

5

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

5шт.

6

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

7

318159A1

LATCH

1шт.

8

827-6040

BOLT,Hex, M6 x 40mm, Cl 10.9

4шт.

9

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

10

728-620

CLEVIS PIN,M6 x 20

6 x 20 mm

1шт.

11

832-10406

NUT,M6 x 1, Cl 8

4шт.

12

728-16100

CLEVIS PIN,M16 x 100

11/16 x 100

1шт.

13

733-4032

COTTER PIN,M4 x 32

1шт.

14

308453A3

CABLE

1шт.

15

369391A5

SUPPORT

STX 275 (1), STX 325 (1)

1шт.

18

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

19

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

20

362943A5

SUPPORT

ACCUSTEER (1)

1шт.

21

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

9шт.

22

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

1шт.

24

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

25

733-1610

COTTER PIN,M1.6 x 10

1шт.

26

349565A1

GUIDE

hood sight

1шт.

27

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

28

398871A1

SEAL

cut from 369562A1

2шт.

29

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

30

339534A3

SUPPORT

radiator, left-hand

1шт.

31

339537A3

SUPPORT

radiator, right-hand

1шт.

32

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

33

389191A1

COVER

fan, right-hand

1шт.

34

389195A1

COVER

fan, left-hand

1шт.

35

399576A1

WASHER

4шт.

36

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

37

406883A1

PROTECTION STRIP

cut from F64227X

1шт.

38

406885A1

PROTECTION STRIP

cut from F64227X

1шт.

17

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
