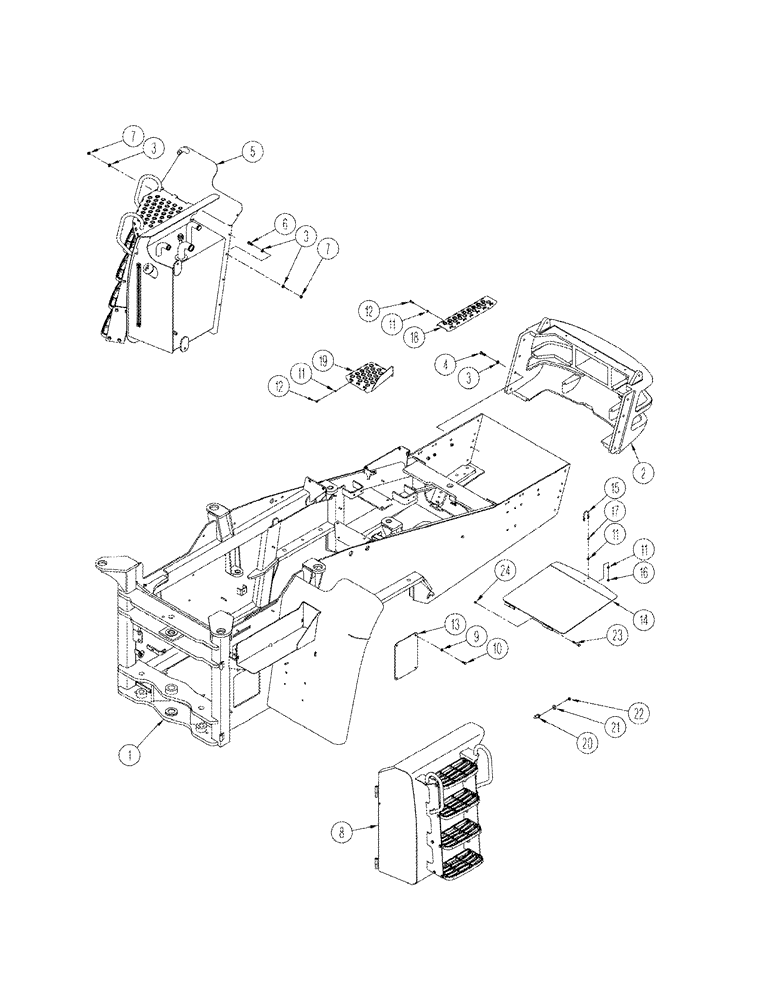

Запчасти Case IH STX325 (09-29) - FRONT FRAME STX 275, STX 325 (09) - CHASSIS/ATTACHMENTS

1

313045A4

FRAME

1шт.

2

325226A2

BUMPER

see Figure 09-33

1шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

19шт.

4

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

5

NSS

NOT SOLD SEPARAT

TANK ASSY hydraulic, see Figure 08-17, order components

1шт.

6

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.

7

829-1412

NUT,M12, Cl 10.9

7шт.

8

NSS

NOT SOLD SEPARAT

DOOR ASSY battery, right-hand, M10; 10, see Figure 09-32, order components

1шт.

10

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

12шт.

13

332313A1

PLATE

cover

1шт.

14

407446A1

COVER

1шт.

15

19-154

U-BOLT,5/16"-18 x 1 3/4" x 3

1шт.

16

231-1445

NUT,5/16"-18, GB

2шт.

17

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

18

385509A1

STEP

1шт.

19

385529A1

PLATFORM

1шт.

20

328534A1

BOLT

1шт.

21

495-21050

WASHER,7/16"

1шт.

22

429-107

NUT,7/16"-14, G8

1шт.

23

827-12120

BOLT,Hex, M12 x 1.75 x 120mm, Cl 10.9

1шт.

24

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

12

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
