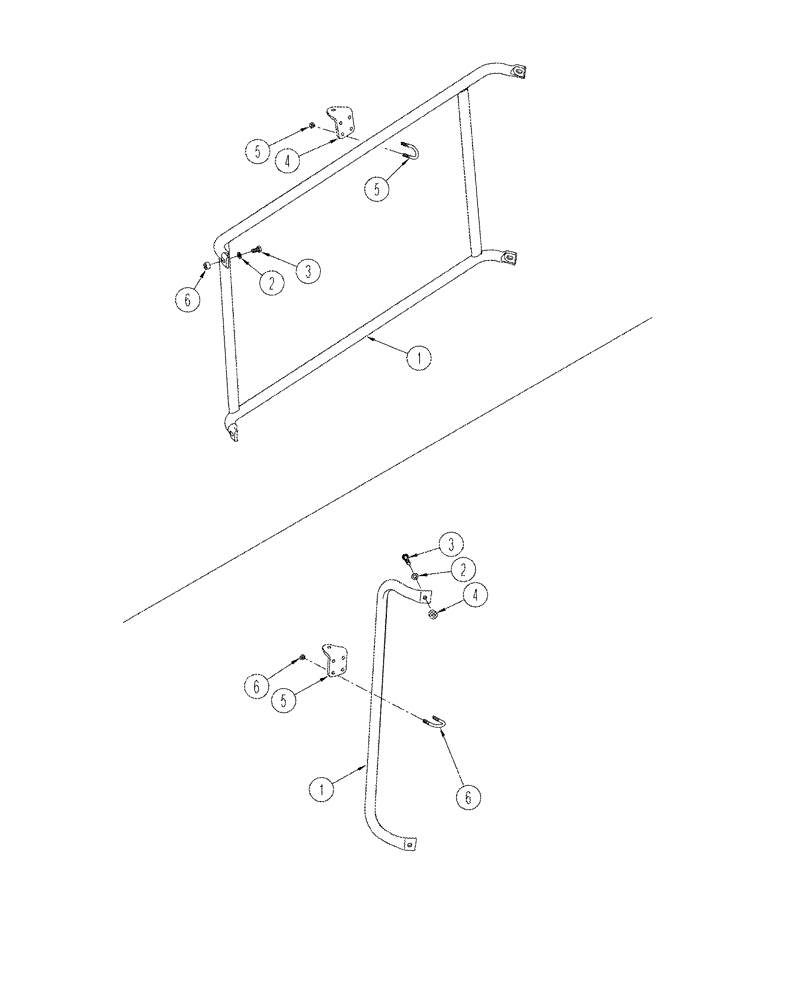

Запчасти Case IH STX325 (09-28) - MONITOR MOUNTING WINDOW (09) - CHASSIS/ATTACHMENTS

1

409391A1

BRACKET

monitor, right-hand

1шт.

2

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

3

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

4шт.

4

372455A1

BRACKET

2шт.

5

19-6258

U-BOLT

1/4 in., Includes: nut

4шт.

6

399367A1

SPACER

A-post

4шт.

1

369275A1

TUBE

monitor

1шт.

2

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

4

371838A1

SPACER,9.5mm ID x 19.1mm OD x 10mm Thk

2шт.

5

372455A1

BRACKET

1шт.

6

19-6258

U-BOLT

1/4 in., Includes: nut

2шт.

3

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

2шт.
