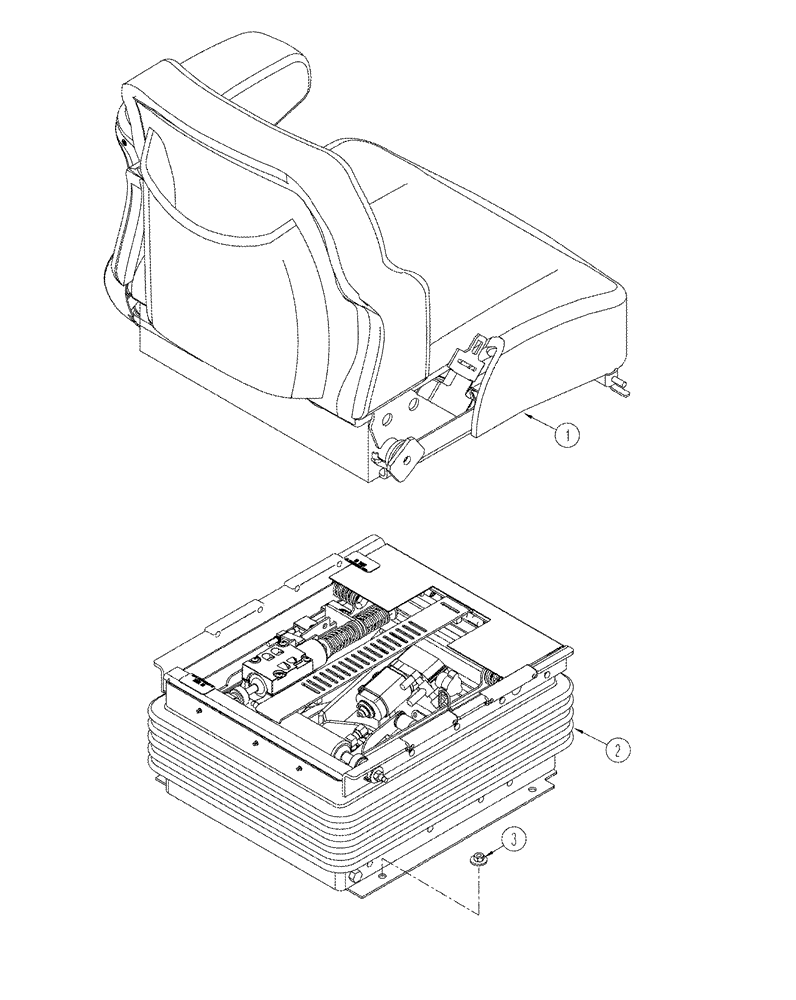

Запчасти Case IH STX325 (09-24) - SEAT OPERATORS (09) - CHASSIS/ATTACHMENTS

358202A2

SEAT ASSY.

cloth, without heat, standard cab

1шт.

397519A1

SEAT ASSY.

cloth, heated, deluxe cab, Includes: Ref. 1 and 2

1шт.

358203A2

SEAT ASSY.

leather, heated, luxury cab, Includes: Ref. 1 and 2

1шт.

1

360319A2

CUSHION ASSY.

cloth, without heat, standard cab, see Page(s) 9-59 - 9-65

1шт.

1

397525A1

CUSHION ASSY.

cloth, heated, deluxe cab, see Figure 09-25

1шт.

1

360321A2

CUSHION ASSY.

leather, heated, luxury cab, see Figure 09-25

1шт.

2

374353A2

PACKAGE,SERVICE

see Figure 09-26

1шт.

3

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.
