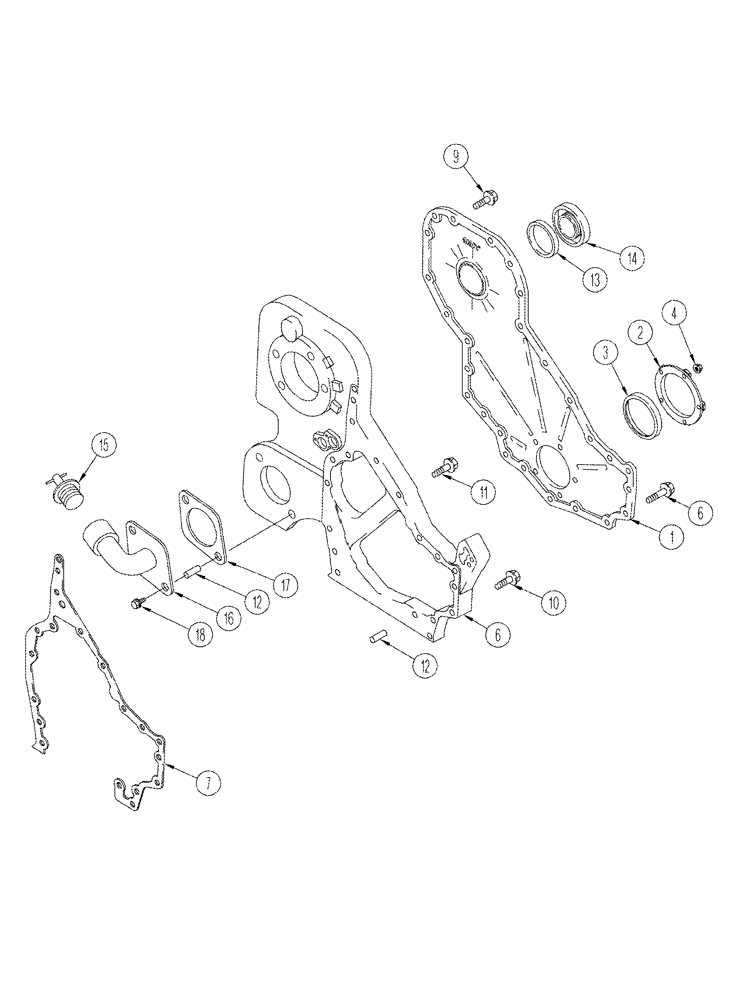

Запчасти Case IH STX325 (02-12) - FRONT GEAR COVER 6TAA-8304 / 6TAA-9004 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

J948044

COVER

1шт.

2

J941786

CARRIER

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL, See Page(s) 2-71, 2-71B, order A77790 or A77808

1шт.

4

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

5шт.

5

J823494

SEALANT

3 oz., not illustrated

1шт.

6

J945595

COVER

1шт.

7

J944293

GASKET,1.01mm Thk

1шт.

8

J926863

FLANGE BOLT

M8 x 50

12шт.

9

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

12шт.

10

J926846

FLANGE BOLT

M8 x 20

3шт.

11

J943885

BOLT

M8 x 40

3шт.

12

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

13

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

14

J903463

PLUG,M63 x 5

1шт.

15

314441A1

FILLER CAP

1шт.

16

J936341

TUBE,38.1 mm OD x 150.2 mm L

fill

1шт.

17

144169C2

GASKET,0.79mm Thk

1шт.

18

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

2шт.
