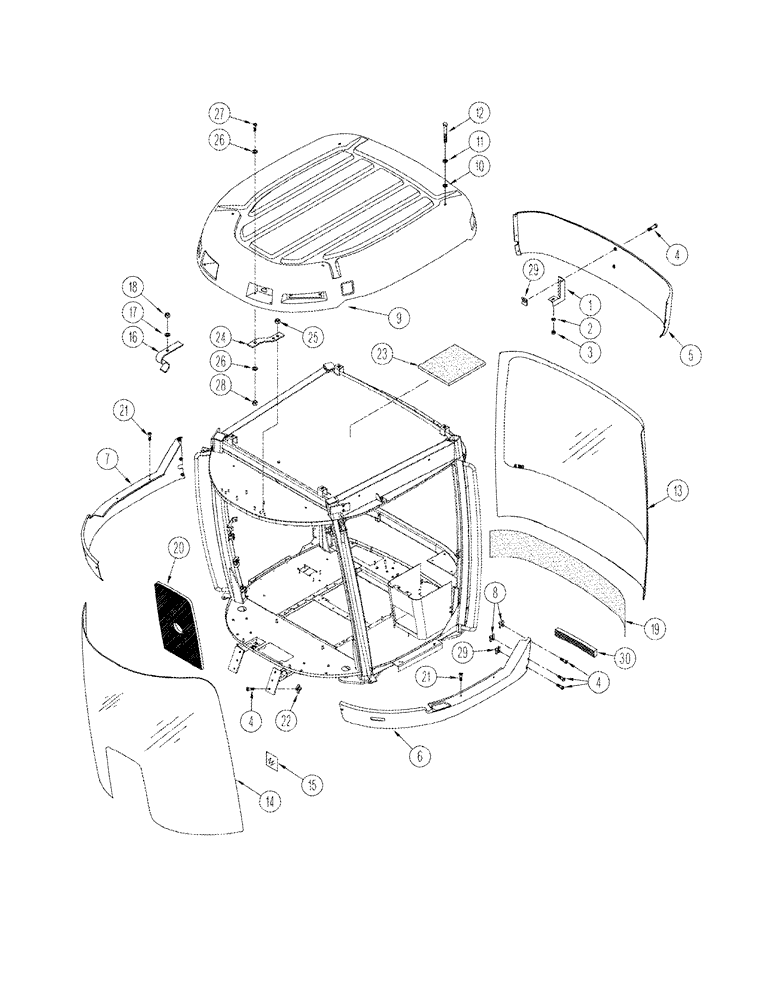

Запчасти Case IH STX325 (09-15) - CAB SKIRTS AND GLASS (09) - CHASSIS/ATTACHMENTS

1

341574A3

BRACKET

1шт.

2

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

3

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

4

357481A1

SCREW,Truss, #10 - 16 x 3/4"

No. 10

10шт.

5

341236A3

SKIRT

rear

1шт.

6

341234A2

SKIRT

left-hand

1шт.

6

357135A2

SKIRT

left-hand, with lower front wiper

1шт.

7

341235A2

SKIRT

right-hand

1шт.

7

357132A2

SKIRT

right-hand, with lower front wiper

1шт.

8

345816A1

FASTENER

4шт.

9

NSS

NOT SOLD SEPARAT

ROOF ASSY, see Figure 09-16

1шт.

10

361191A1

GROMMET

4шт.

11

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

4шт.

12

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

13

181240A2

GLASS

rear

1шт.

14

181241A2

GLASS

windshield

1шт.

15

97268C1

SPACER

34шт.

16

117707A3

CLAMP

window

7шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

19

259462A1

FOAM INSULATION

1525 mm (60 in.)

1шт.

20

283531A1

FOAM INSULATION

1шт.

21

840-2820

SCREW,Pan, M8 x 20mm, Cl 4.8

4шт.

22

131-642

SPRING NUT,Tinn, U, #10

6шт.

23

355716A2

FOAM INSULATION

1шт.

24

364156A1

BRACKET

roof support

4шт.

25

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

8шт.

28

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

29

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

4шт.

30

403325A1

FOAM

4шт.

27

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

26

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.
