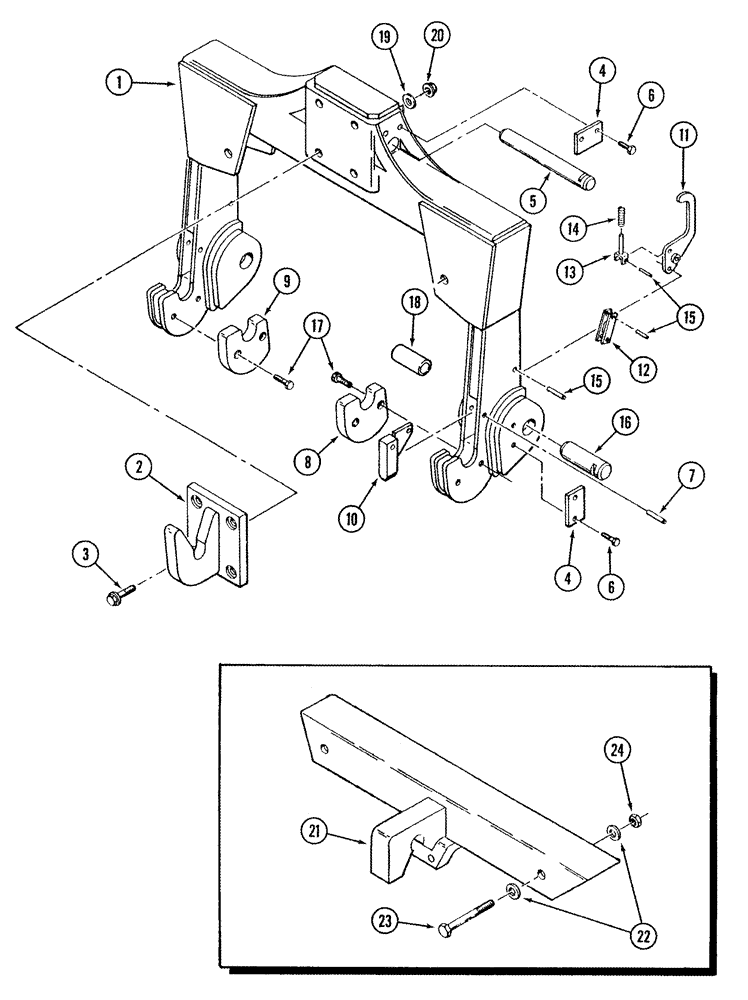

Запчасти Case IH STX325 (09-06) - QUICK HITCH CATEGORY IV-NARROW (09) - CHASSIS/ATTACHMENTS

1

281462A1

COUPLING

1шт.

2

70-1869T1

HOOK

1шт.

3

460-1240

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

4шт.

4

70-3082T2

LARGE PLATE

PLATE, LARGE retainer

3шт.

5

70-1895T1

PIN

1шт.

6

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

6шт.

7

38-33240

PIN,1/2" x 2 1/2", Coiled

4шт.

8

70-1920T1

CAP

spacer, right-hand

1шт.

9

70-1921T1

CAP

spacer, left-hand

1шт.

10

70-1890T2

STOP

hitch release

2шт.

11

70-1880T1

LATCH

2шт.

12

70-1887T1

PITMAN

2шт.

13

70-1884T1

PITMAN

2шт.

14

2-4345T1

SPRING

2шт.

15

38-32018

PIN,5/16" x 1 1/8", Coiled

6шт.

16

70-1894T1

PIN

2шт.

17

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

18

383347A1

SPACER,38.1mm ID x 50.8mm OD x 70.9mm L

2шт.

19

495-11081

WASHER,3/4", SAE

4шт.

20

232-41112

NUT,3/4"-10, GC

4шт.

21

70-1913T1

HOOK

1шт.

22

496-21106

WASHER,1 1/16" x 2" x .209", HDN

4шт.

23

426-16120

BOLT,Hex, 1" - 8 x 7-1/2", Gr 8

2шт.

24

429-1016

NUT,1"-8, G8

2шт.
