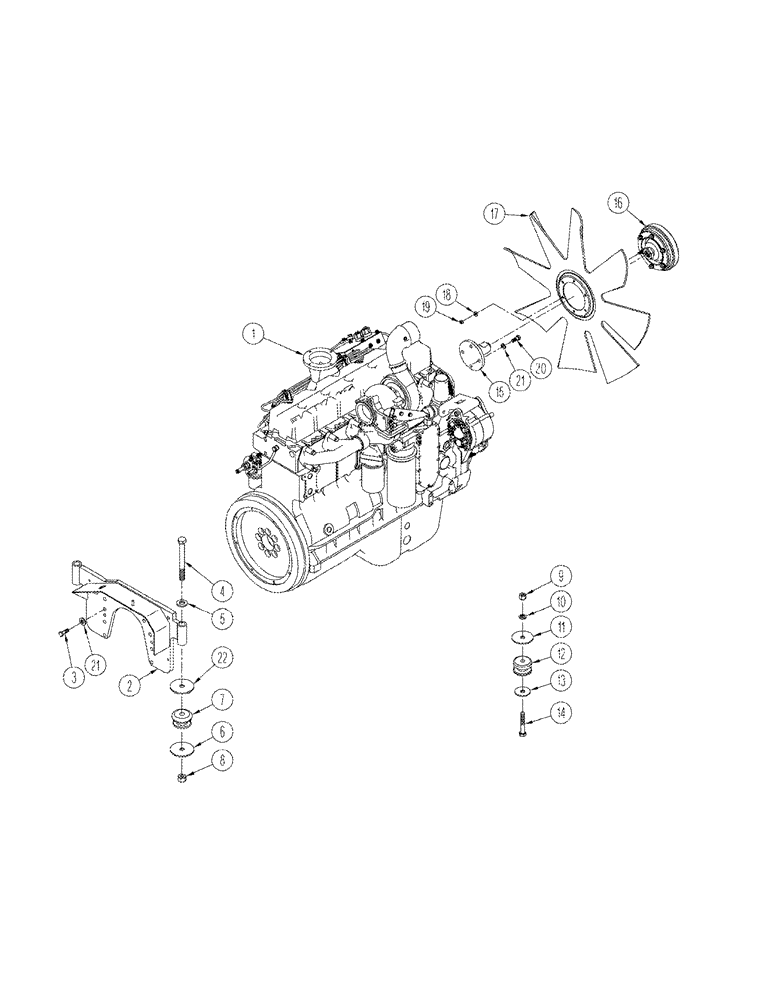

Запчасти Case IH STX325 (02-10) - ENGINE MOUNTING (02) - ENGINE

1

382365A1

BASIC ENGINE

STX275 8.3L, 24 Valve, 6 Cyl.

1шт.

1

84252737R

REMAN-BASIC ENGINE

STX275, Reman For New P/N 382365A1

1шт.

1

84252737C

CORE-BASIC ENGINE

Return Part Number

1шт.

1

364962A1

BASIC ENGINE

325 hp, See Page(s) 2 -57B, 6TAA-9004, STX 325 (1)

1шт.

Use on Engines with SN Prior to 46344789 Until Exhausted Then Use 87422225 and 6 of 87422170 Injectors. Recalibrate Engine with ECU J91846.00

1шт.

For Models with SN Prior to 46344789, Use 87422226 with 6 of 87422170 Injectors. Recalibrate Engine with ECU J91846.00

1шт.

1

87422226

REMAN-BASIC ENGINE

Reman For New PN's 364962A1 and 87422225

1шт.

1

87422226C

CORE-BASIC ENGINE

Return Part Number

1шт.

2

379558A1

HOUSING

1шт.

3

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

10шт.

4

827-20190

BOLT,Hex, M20 x 2.5 x 190mm, Cl 10.9

2шт.

5

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

22 x 44 x 5 mm

2шт.

6

495-81238

WASHER,13/16" x 3" x .238", HDN

4шт.

7

304561A1

ENGINE MOUNT

2шт.

8

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

9

832-10416

NUT,M16 x 2, Cl 8

1шт.

10

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

11

51-128

WASHER

21/32 x 3-1/2 x 3/16

1шт.

12

24-231

RUBBER MOUNTING

1шт.

13

19-408

WASHER

21/32 x 2-1/2 x 7/32

1шт.

14

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

1шт.

15

304040A1

SHAFT

STX 275 (1)

1шт.

15

336336A2

SHAFT

STX 325 (1)

1шт.

16

353846A1

DRIVE

fan

1шт.

17

314317A1

FAN

1шт.

19

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

20

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

21

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

14шт.

22

331663A1

WASHER

20.6 x 98.6 x 1.7 mm

2шт.

18

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.
