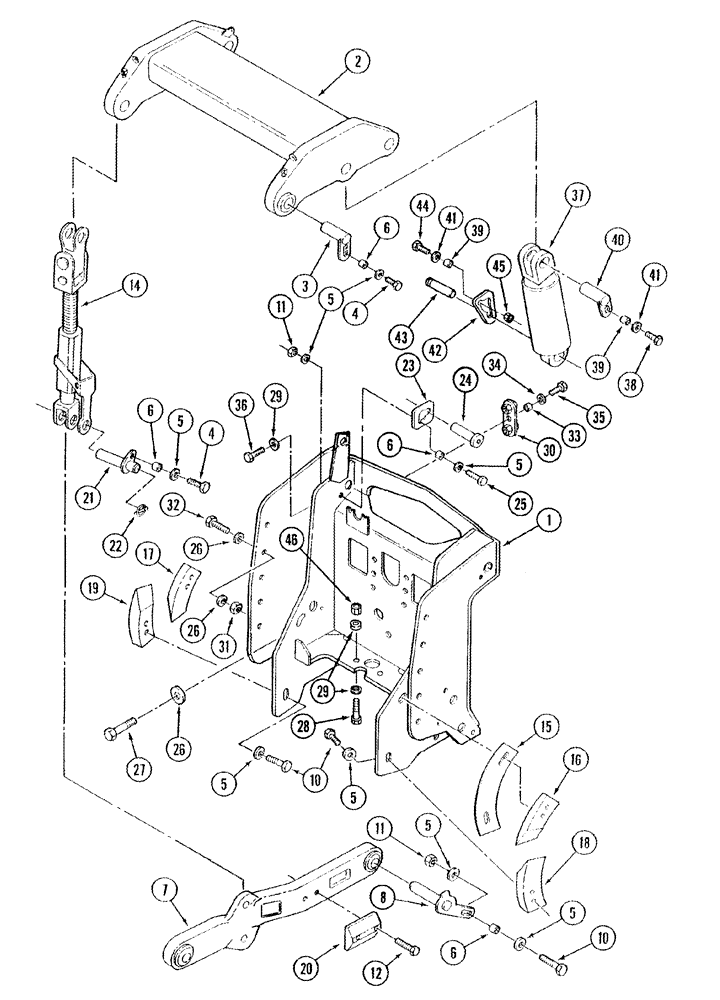

Запчасти Case IH STX325 (09-01) - THREE POINT HITCH (09) - CHASSIS/ATTACHMENTS

320681A1

MOUNTING PARTS

Includes: Ref. 1 - 25

1шт.

1

363383A4

MOUNTING PARTS

1шт.

2

320514A1

ROCKSHAFT

see Figure 09-02

1шт.

3

70-6013T2

PIN

2шт.

4

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

20шт.

6

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

8шт.

7

254576A2

LOWER LINK

draft

2шт.

8

348061A1

PIN

left-hand

1шт.

9

347641A1

PIN

right-hand, not illustrated

1шт.

10

627-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9, Full Thd

10шт.

11

829-1416

NUT,M16, Cl 10

4шт.

12

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

4шт.

13

NSS

NOT SOLD SEPARAT

LINK ASSY lift, left-hand, see Figure 09-05, not illustrated

1шт.

14

NSS

NOT SOLD SEPARAT

LINK ASSY lift, right-hand, see Figure 09-05

1шт.

15

70-6387T1

LARGE PLATE

PLATE, LARGE

2шт.

16

279611A1

BLOCK ASSY.

1шт.

17

279608A1

BLOCK ASSY.

1шт.

18

279610A1

BLOCK ASSY.

1шт.

19

279607A1

BLOCK ASSY.

1шт.

20

279613A1

BLOCK ASSY.

2шт.

21

322096A1

PIN,31.85mm OD x 132mm L

2шт.

22

A30338

PIN

2шт.

23

326573A3

LARGE PLATE

PLATE, LARGE

2шт.

24

321188A2

PIN,50.9mm OD x 215mm L

2шт.

25

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

2шт.

26

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

(26 ID x 44 x 5 mm)

28шт.

27

827-24110

BOLT,Hex, M24 x 3 x 110mm, Cl 10.9

4шт.

28

827-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

2шт.

29

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

8шт.

30

259389A1

PLATE

2шт.

31

829-1424

NUT,M24, Cl 10

12шт.

32

627-24060

BOLT,Hex, M24 x 3 x 60mm, Cl 10.9, Full Thd

12шт.

33

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

2шт.

34

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

35

627-16025

BOLT,Hex, M16 x 2 x 25mm, Cl 10.9, Full Thd

2шт.

36

627-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

4шт.

37

339830A1

CYLINDER

lift, see Figure 08-45

2шт.

37

87304295R

REMAN-HYD CYLINDER

STX275, STX325, Reman for New P/N 339830A1

2шт.

37

87304295C

CORE-HYD CYLINDER

Return Number

2шт.

38

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

39

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

4шт.

40

70-5973T2

PIN

2шт.

41

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

42

326573A3

LARGE PLATE

PLATE, LARGE retainer

2шт.

43

321188A2

PIN,50.9mm OD x 215mm L

2шт.

44

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

2шт.

45

829-1416

NUT,M16, Cl 10

2шт.

46

829-1420

NUT,M20, Cl 10

2шт.
