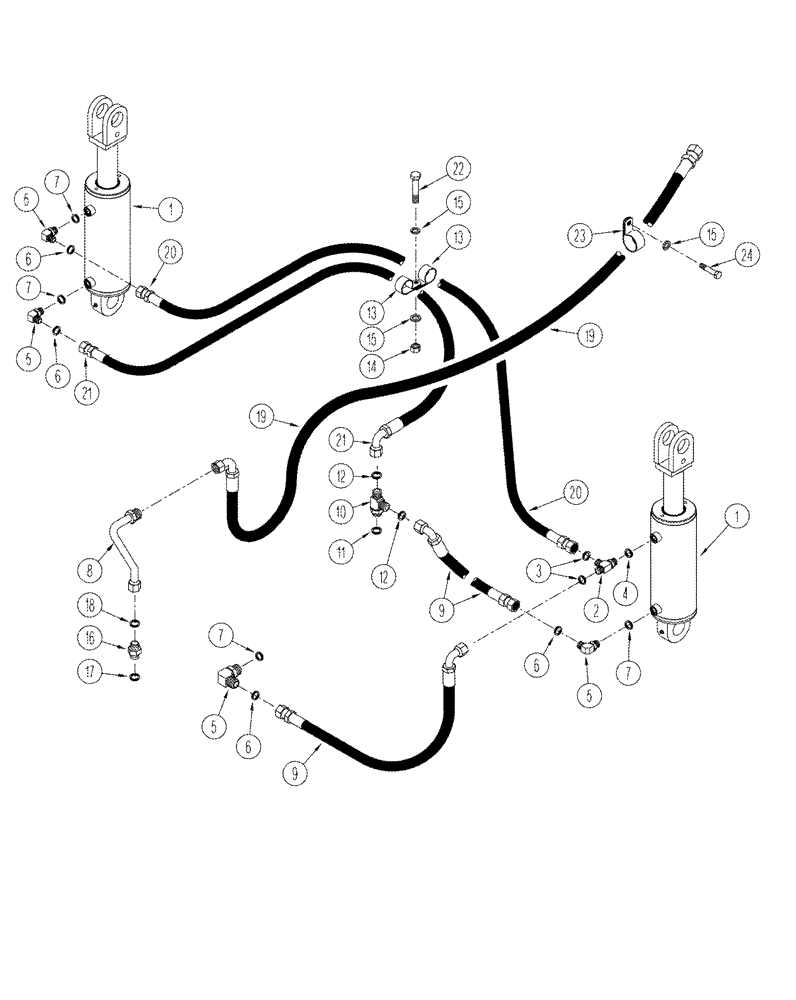

Запчасти Case IH STX325 (08-43) - THREE POINT HITCH HYDRAULICS ELECTRONIC CONTROLLED HITCH SYSTEM (08) - HYDRAULICS

1

349116A1

CYLINDER

see Page(s) 8-129

2шт.

2

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Includes: Ref. 3 and 4

1шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

4

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

5

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. Ref. 6 and 7

4шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

7

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

4шт.

8

370980A1

TUBE

1шт.

9

360496A1

HOSE ASSY.

cylinder supply, 505 mm (20 in.)

2шт.

10

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. Ref. 11 and 12

1шт.

11

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Pressure line

2шт.

13

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

P-type

4шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

16

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 17, 18

1шт.

17

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

18

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

19

371017A2

HOSE ASSY.

return, 3425 mm (135 in.)

1шт.

20

394732A1

HOSE ASSY.

return, 1410 mm (55-1/2 in.)

1шт.

21

394733A1

HOSE ASSY.

pressure line, 1397 mm (55 in.)

1шт.

23

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

1шт.

24

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

1шт.

22

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.
