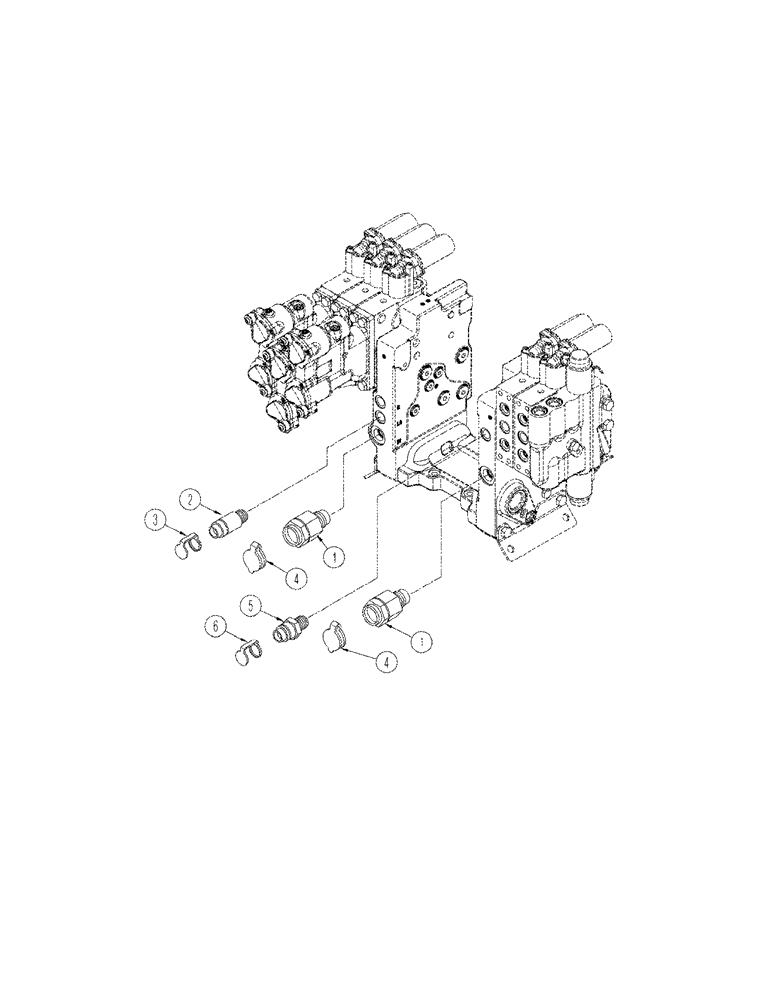

Запчасти Case IH STX325 (08-41) - COUPLERS POWER BEYOND (08) - HYDRAULICS

1

298291A1

COUPLING, QUICK, FEM,Assembly, 3/4"

auxiliary, 3/4 in.

2шт.

1

445015A1

SEAL KIT

For Ref 1

1шт.

2

294603A1

BODY

auxiliary, 1/4 in.

1шт.

3

334218A1

CAP

1шт.

4

334216A1

CAP

2шт.

5

380739A1

COUPLING, BREAK AWAY

low pressure return, 3/8

1шт.

6

380740A1

CAP

1шт.

7

347756A1

QUICK MALE COUPLING,ISO 6.3, 1/4" x 9/16" - 18, Fem SAE ORB

1/4 in., Includes: Ref. 8, not illustrated

2шт.

9

347755A1

COUPLING,ISO 20, 3/4" x 1 1/16" - 12, Fem SAE ORB

3/4 in., Includes: Ref. 10, not illustrated

2шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

11

385358A1

QUICK MALE COUPLING,3/8"

case drain, 3/8, not illustrated

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.
