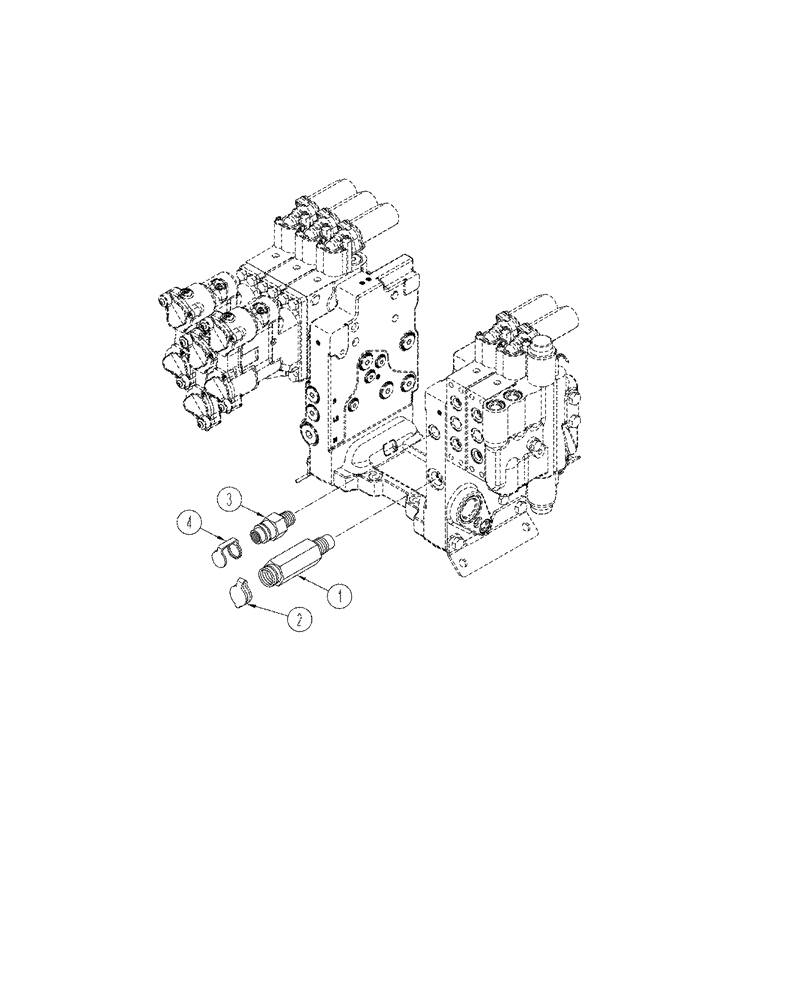

Запчасти Case IH STX325 (08-40) - MOTOR RETURN (08) - HYDRAULICS

1

298291A1

COUPLING, QUICK, FEM,Assembly, 3/4"

auxiliary, main return, 3/4 in.

1шт.

1

445015A1

SEAL KIT

For Ref 1

1шт.

2

334216A1

CAP

1шт.

3

380739A1

COUPLING, BREAK AWAY

low pressure return, 3/8

1шт.

4

380740A1

CAP

1шт.

5

347755A1

COUPLING,ISO 20, 3/4" x 1 1/16" - 12, Fem SAE ORB

3/4 in., Includes: Ref 6, not illustrated

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

385358A1

QUICK MALE COUPLING,3/8"

case drain, 3/8, not illustrated

1шт.
