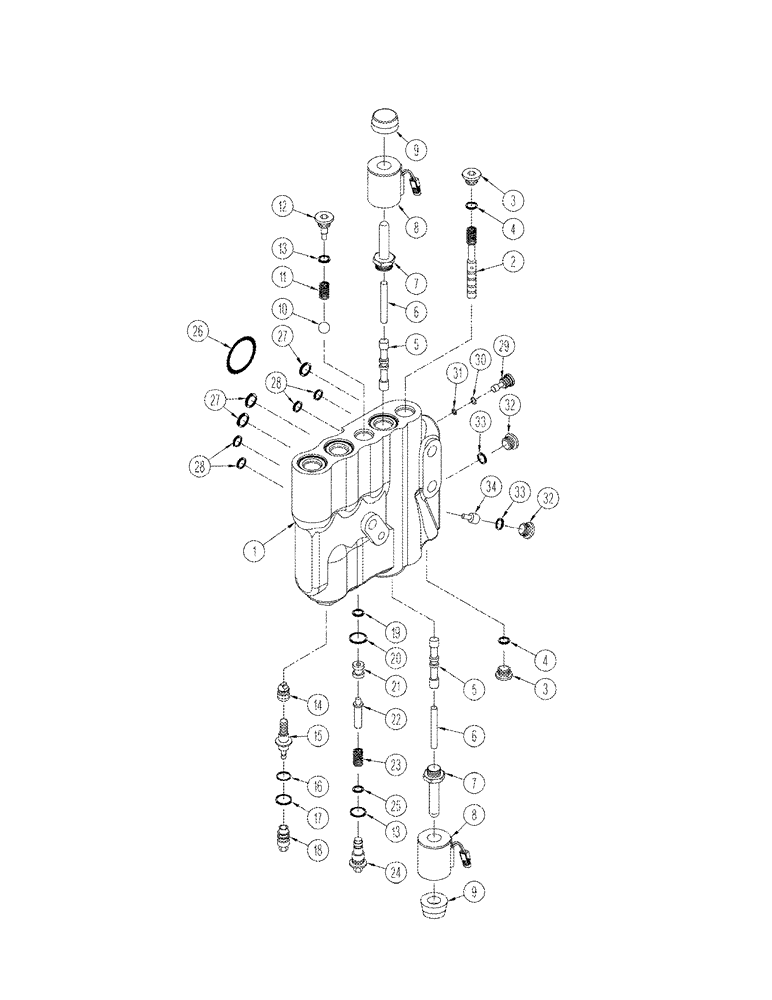

Запчасти Case IH STX325 (08-39) - HITCH VALVE ASSEMBLY ELECTRONIC CONTROLLED (08) - HYDRAULICS

319131A2

VALVE

consists of: Ref. 1 - 34

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

3

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 4

2шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

5

188104A1

SPOOL

pilot

2шт.

6

188116A1

PIN,3.25mm OD x 39.93mm L

2шт.

7

188117A1

CARTRIDGE,72.25mm OAL

override

2шт.

8

243254A1

KIT

COIL

2шт.

9

188106A1

NUT

2шт.

10

511-10200

BALL,20mm Dia

Gr 28

1шт.

11

188114A1

SPRING

compression

1шт.

12

373760A1

PLUG

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

14

NSS

NOT SOLD SEPARAT

POPPET valve

1шт.

15

NSS

NOT SOLD SEPARAT

STEM servo

1шт.

16

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

1шт.

17

238-5023

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

1шт.

18

188111A1

PLUG,1-1/16" - 18

Meter Out

1шт.

19

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

20

373767A1

RING,Split, 83.06mm ID

1шт.

21

NSS

NOT SOLD SEPARAT

Seat, Releif (Order kit 373756A1)

1шт.

22

NSS

NOT SOLD SEPARAT

Poppet (Order kit 373756A1)

1шт.

23

NSS

NOT SOLD SEPARAT

Check Valve (Order kit 373756A1)

1шт.

24

NSS

NOT SOLD SEPARAT

Relief Plug (Order kit 373756A1)

1шт.

25

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

26

238-5142

O-RING,0.103" Thk x 2.362" ID, -142, Cl 5, 75 Duro

1шт.

27

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

3шт.

28

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

5шт.

29

373761A1

PLUG

1шт.

30

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

31

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

2шт.

32

86529630

PLUG,Hex Soc, 3/8"-24 ORB

2шт.

33

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

2шт.

34

373758A1

VALVE

load sense

1шт.
