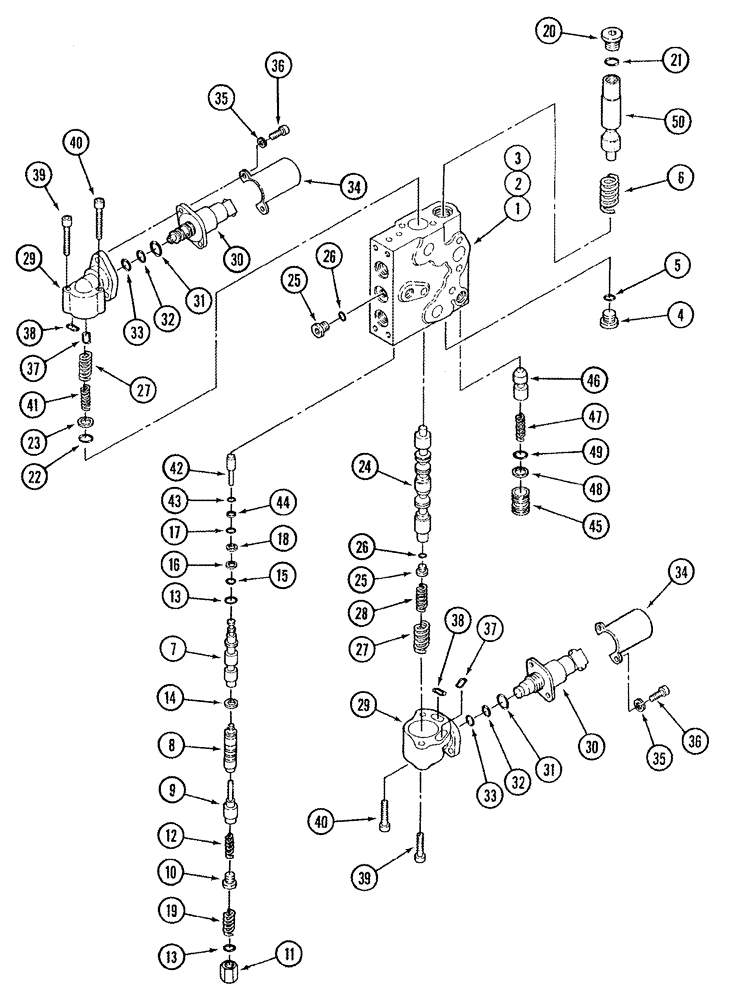

Запчасти Case IH STX325 (08-38) - MAIN AND AUXILIARY VALVE ASSY ELECTRONIC REMOTE (08) - HYDRAULICS

292295A1

VALVE

main, consists of: Ref. 1, 4 - 50

1шт.

292295A3R

REMAN-HYD VALVE

STX275, STX325, Reman For New P/N 292295A1

1шт.

292295A3C

CORE-VALVE HYD

Return Number

1шт.

393972A1

VALVE

auxiliary, left-hand, consists of: Ref. 2, 4 - 50

1шт.

393972A3R

REMAN-HYD VALVE

STX275, STX325 Reman For New P/N 393972A1

1шт.

393972A3C

CORE-VALVE HYD

Return Number

1шт.

393973A1

VALVE

auxiliary, right-hand, consists of: Ref. 3 - 50

1шт.

393973A3R

REMAN-HYD VALVE

1шт.

393973A3C

CORE-VALVE HYD

STX325 BSN JEE0099501 MAIN AND AUXILIARY VALVE , Reman For New P/N: 393973A1

1шт.

1

292296A1

VALVE BODY

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY

1шт.

3

NSS

NOT SOLD SEPARAT

BODY

1шт.

4

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 5

1шт.

6

301973A1

SPRING

1шт.

393973A3R

REMAN-HYD VALVE

STX275 BSN JEE0099501 MAIN AND AUXILIARY VALVE , Reman For New P/N: 393973A1

1шт.

393973A3C

CORE-VALVE HYD

Return Number

1шт.

278550A1

CHECK VALVE

logic, consists of: Ref. 7 - 19

1шт.

278550A2R

REMAN-HYD VALVE

STX325,STX275, Reman For New P/N 278550A1

1шт.

278550A2C

CORE-VALVE HYD

Return Number

1шт.

7

NSS

NOT SOLD SEPARAT

BODY

1шт.

8

NSS

NOT SOLD SEPARAT

POPPET valve

1шт.

9

NSS

NOT SOLD SEPARAT

Poppet, Lock Check Pilot

1шт.

10

1957964C1

RETAINER

1шт.

11

NSS

NOT SOLD SEPARAT

CAP

1шт.

12

1957817C1

VALVE SPRING

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

14

G108727

BACK-UP RING,13.27mm ID x 15.87mm OD x 1.32mm Thk

1шт.

15

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

16

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

1шт.

17

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

18

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

1шт.

19

NSS

NOT SOLD SEPARAT

SPRING

1шт.

20

86625138

PLUG,7/18" - 14

Includes Ref. 21

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

238-5120

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

2шт.

23

280927A1

WASHER

2шт.

24

283514A3

SPOOL

1шт.

25

86632547

PLUG,Hex, 5/16"-24 ORB

Includes Ref. 26

2шт.

26

238-6006

O-RING,0.07" Thk x 0.114" ID, -6, Cl 6, 90 Duro

2шт.

27

301969A2

SPRING

outer

2шт.

28

321689A1

SPRING

inner-B

1шт.

336278A1

VALVE

pilot block, consists of: Ref. 29 - 40

2шт.

29

NSS

NOT SOLD SEPARAT

BODY

1шт.

30

278506A1

SOLENOID VALVE

consists of: Ref. 31 - 33

2шт.

31

319723A1

O-RING,2.4mm Thk x 8.3mm ID

8.3 ID x 2.4

2шт.

32

319722A1

O-RING,2.4mm Thk x 10.3mm ID

10.3 ID x 2.4

2шт.

33

319721A1

O-RING,2.4mm Thk x 15.3mm ID

15.3 ID x 2.4

2шт.

34

353830A1

GUARD

2шт.

35

892-11004

LOCK WASHER,M4

4шт.

36

864-4012

HEX SOC SCREW,M4 x 12mm, Cl 8.8

4шт.

37

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

38

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

2шт.

39

864-6055

HEX SOC SCREW,M6 x 55mm, Cl 8.8

2шт.

40

864-6070

HEX SOC SCREW,M6 x 70mm, Cl 8.8

2шт.

41

301970A1

SPRING

return, inner-A

1шт.

42

1957862C1

PISTON

1шт.

43

1957861C1

WASHER

1шт.

44

1957859C1

SNAP RING

1шт.

1542563C1

KIT

logic, consists of: Ref. 45 - 49

1шт.

45

1994580C1

PLUG

1шт.

46

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

1шт.

47

1994581C1

SPRING,6.1mm OD x 31.1mm L

1шт.

48

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

1шт.

49

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

50

292321A2

SPOOL

pressure, compensation

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
