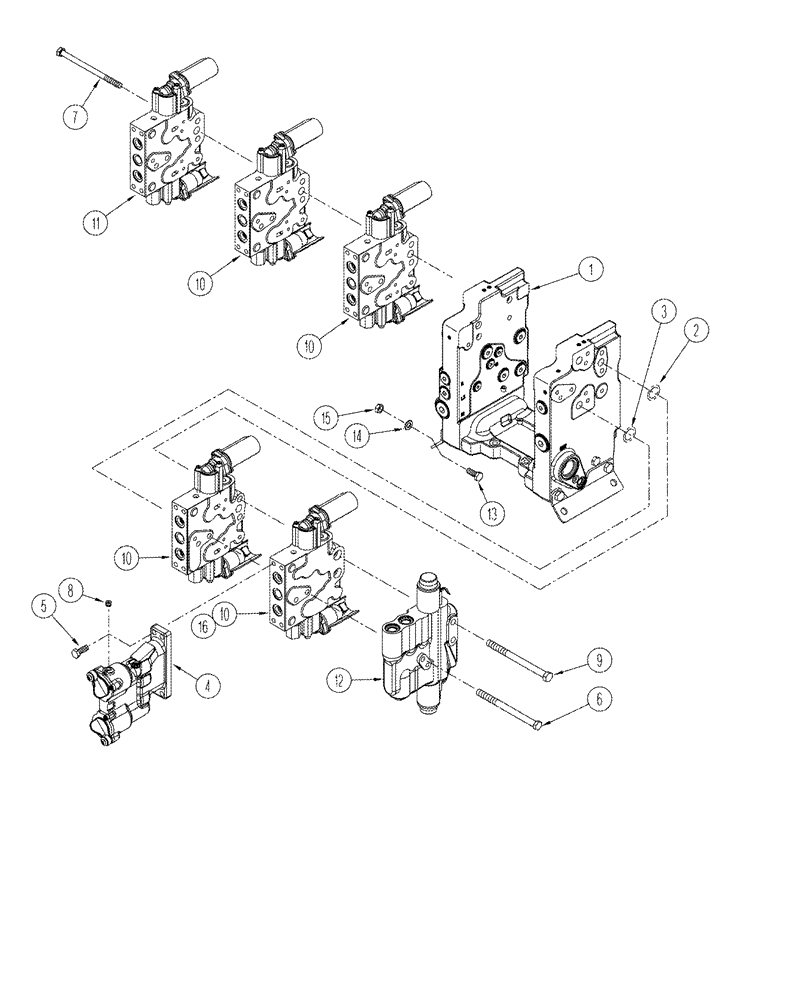

Запчасти Case IH STX325 (08-35) - REMOTE VALVE ASSY ELECTRONIC REMOTE (08) - HYDRAULICS

1

337882A2

VALVE

manifold, see Figure 08-33

1шт.

2

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

3

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

4

292322A1

COUPLING, BREAK AWAY

see Figure 08-36

1шт.

5

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

20шт.

6

828-10160

BOLT,Hex, M10 x 1.5 x 160mm, Cl 10.9

2шт.

7

863-12150

HEX SOC SCREW,M12 x 150mm, Cl 12.9

2шт.

8

86637724

PLUG,1/8" - 27 NPT

5шт.

9

828-12160

BOLT,Hex, M12 x 1.75 x 160mm, Cl 10.9

2шт.

10

292295A1

VALVE

main, four and five-stack, see Figure 08-38

1шт.

292295A3R

REMAN-HYD VALVE

STX275, STX325, Reman For New P/N 292295A1

1шт.

292295A3C

CORE-VALVE HYD

Return Number

1шт.

11

393972A1

VALVE

auxiliary, left-hand, see Figure 08-38

1шт.

393972A3R

REMAN-HYD VALVE

STX275, STX325 Reman For New P/N 393972A1

1шт.

393972A3C

CORE-VALVE HYD

Return Number

1шт.

12

319131A2

VALVE

hitch, see Figure 08-39

1шт.

13

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

14

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

15

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

16

393973A1

VALVE

auxiliary, right-hand, see Figure 08-38

1шт.

393973A3R

REMAN-HYD VALVE

STX325 BSN JEE0099501 REMOTE VALVE , Reman For New P/N: 393973A1

1шт.

393973A3C

CORE-VALVE HYD

Return Number

1шт.

365947A1

KIT

remote valve, five-stack, see Figure 08-32, consists of: Ref. 2 - 8 and 10

1шт.

292295A3R

REMAN-HYD VALVE

STX275, STX325, Reman For New P/N 365947A1

1шт.

292295A3C

CORE-VALVE HYD

Return Number

1шт.
