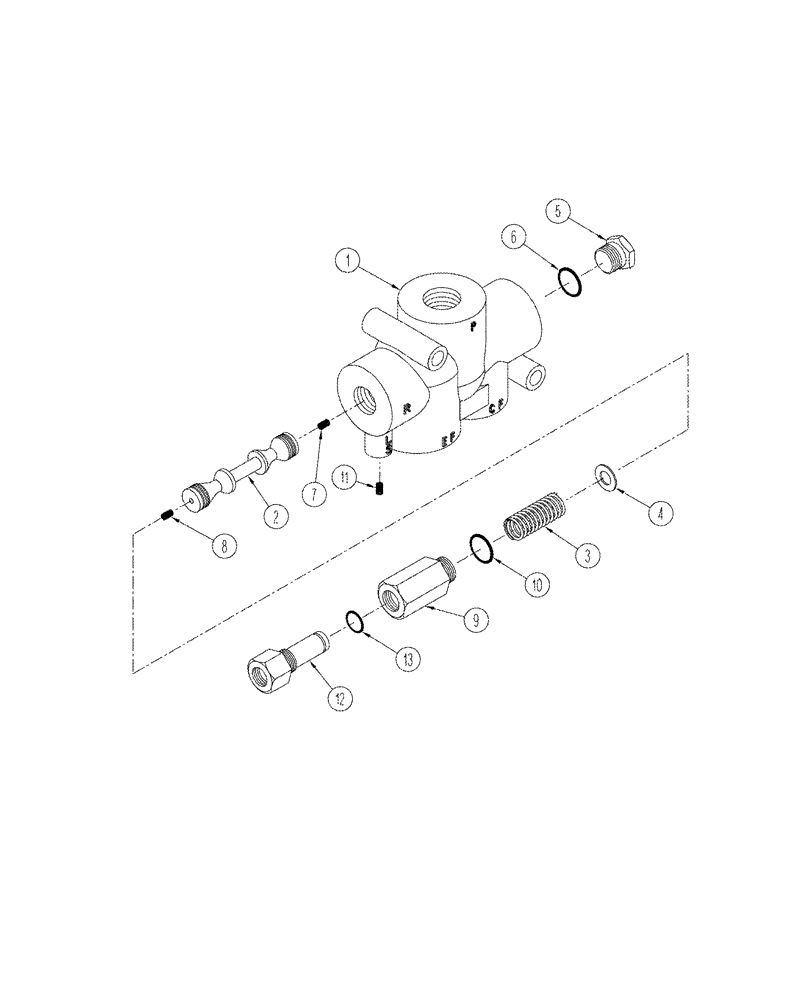

Запчасти Case IH STX325 (08-31) - PRIORITY VALVE ASSY HIGH OUTPUT HYDRAULICS (08) - HYDRAULICS

337481A1

VALVE

consists of: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

NSS

NOT SOLD SEPARAT

PISTON

1шт.

3

NSS

NOT SOLD SEPARAT

SPRING

1шт.

4

S302014

WASHER

1шт.

5

S302018

PLUG

Includes: Ref. 6

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING

1шт.

7

S300792

SCREW

orificed

1шт.

8

S300791

SCREW

orificed

1шт.

9

S302016

PLUG

1шт.

10

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

11

NSS

NOT SOLD SEPARAT

ORIFICE

1шт.

12

370152A1

VALVE

Includes: Ref. 13

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING

1шт.
