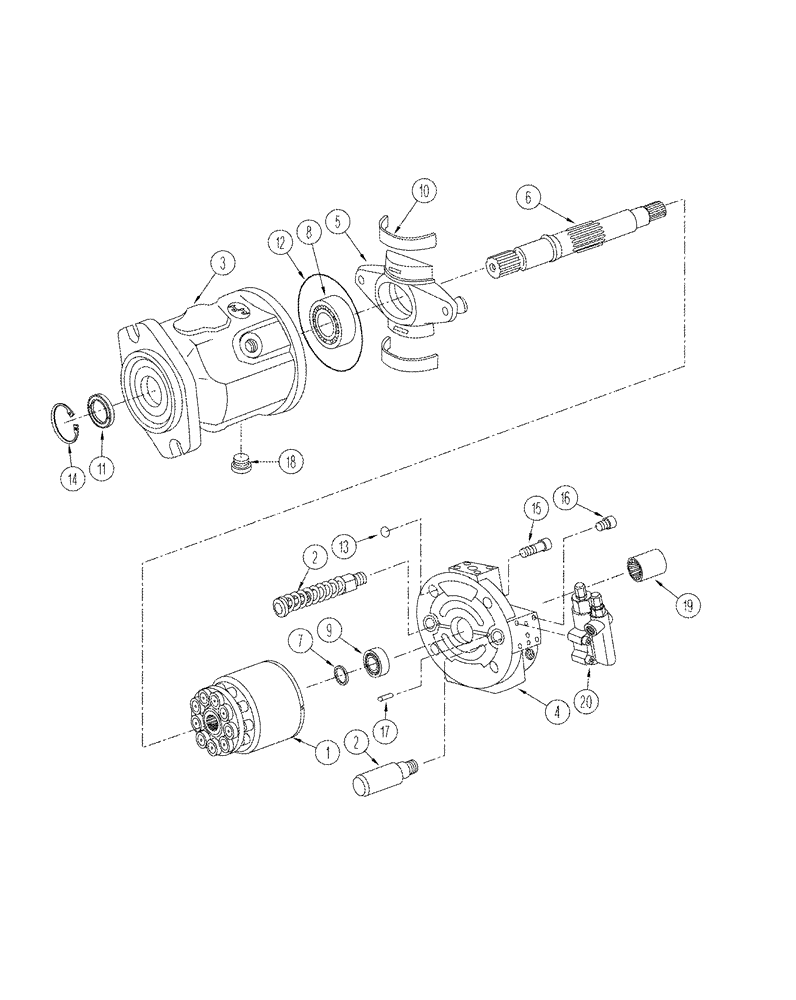

Запчасти Case IH STX325 (08-29) - HIGH OUTPUT HYDRAULICS PISTON PUMP ASSY (08) - HYDRAULICS

192296A3

PUMP

consists of: Ref. 1 - 20

1шт.

87308196R

REMAN-HYD PUMP,100 CC

Reman for New PN 192296A3

1шт.

87308196C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

CYLINDER ASSY

1шт.

2

NSS

NOT SOLD SEPARAT

PISTON ASSY

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

4

NSS

NOT SOLD SEPARAT

BLOCK

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE swash

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

7

NSS

NOT SOLD SEPARAT

SPACER

1шт.

8

NSS

NOT SOLD SEPARAT

BEARING roller

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING roller

1шт.

10

NSS

NOT SOLD SEPARAT

BEARING support

2шт.

11

NSS

NOT SOLD SEPARAT

SEAL

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING

4шт.

14

NSS

NOT SOLD SEPARAT

RING retaining

1шт.

15

NSS

NOT SOLD SEPARAT

SCREW

4шт.

16

9841223

PLUG,1-1/16" - 12 ORB

1шт.

17

NSS

NOT SOLD SEPARAT

PIN dowel

1шт.

18

NSS

NOT SOLD SEPARAT

PLUG

2шт.

19

NSS

NOT SOLD SEPARAT

COUPLING

1шт.

20

352875A1

VALVE, CONTROL

1шт.

21

409986A1

O-RING

1шт.

388292A1

SEAL KIT

Includes: Ref. 11 - 13 and 21

1шт.
