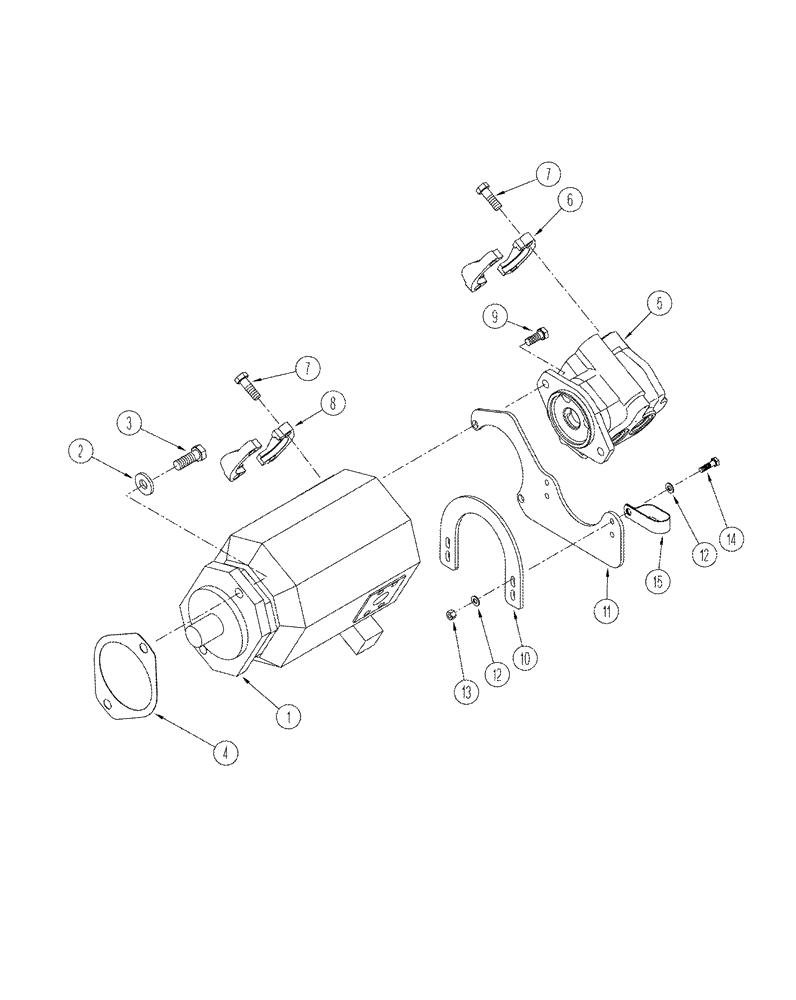

Запчасти Case IH STX325 (08-28) - HIGH OUTPUT HYDRAULICS PUMP MOUNTING (08) - HYDRAULICS

1

192296A3

PUMP

piston, see Figure 08-29

1шт.

1

87308196R

REMAN-HYD PUMP,100 CC

Reman for New PN 192296A3

1шт.

1

87308196C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

496-81022

WASHER

11/16 x 1-1/4 x 1/4 in.

2шт.

3

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

2шт.

4

D53692

GASKET,0.79mm Thk

1шт.

5

227748A3

PUMP, HYDRAULIC

gear, see Figure 08-30

1шт.

432244A3R

REMAN-HYD PUMP

STX275, STX325 all Reman for New P/N 227748A3

1шт.

432244A3C

CORE-HYDRAULIC PUMP

Return Number

1шт.

6

A14141

FLANGE

split

2шт.

7

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

8шт.

8

L14386

CLAMP

split

2шт.

9

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

10

90-6743T1

SHIELD

lower

1шт.

11

293405A1

BRACKET

1шт.

12

495-11034

WASHER,5/16", SAE

8шт.

13

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

15

L111928

CLAMP

1шт.

14

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.
