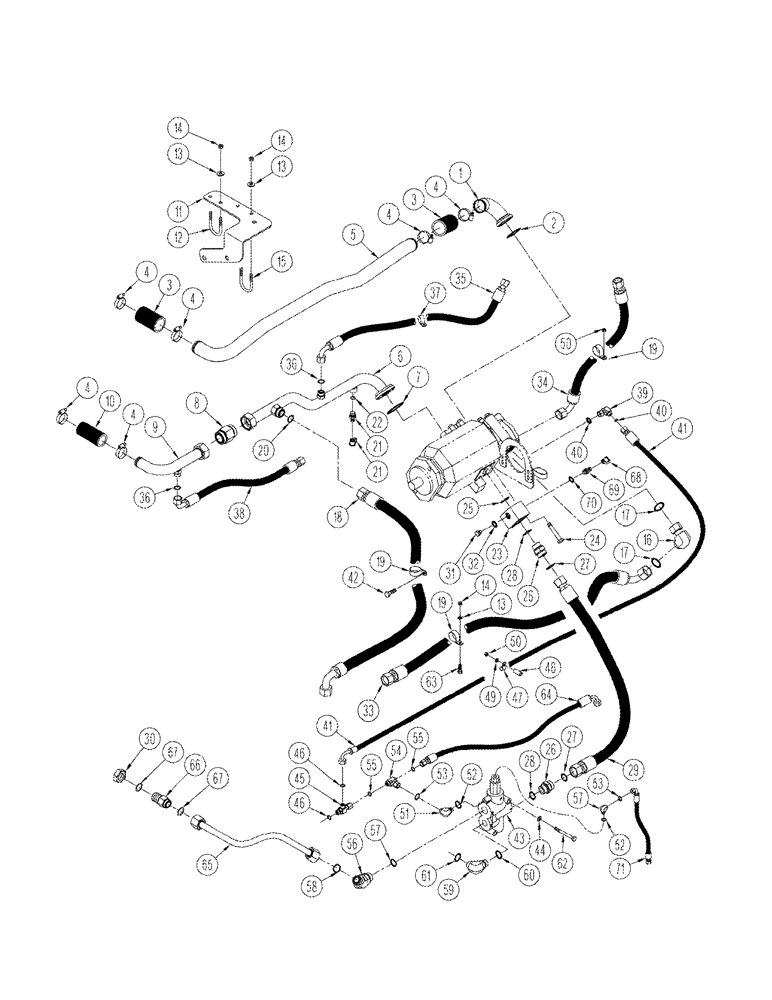

Запчасти Case IH STX325 (08-26) - HIGH OUTPUT HYDRAULICS PUMP LUBRICATION CIRCUIT STX 275, STX 325 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
348596A2
TUBE,38.1 mm OD, 490, 100 mm Length
1шт.
2
238-6228
O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro
1шт.
3
31-2427
HOSE,2.00" ID x 6.00"
102 mm (4 in.), cut from 4-4568
2шт.
5
365938A1
TUBE
suction
1шт.
6
348596A2
TUBE,38.1 mm OD, 490, 100 mm Length
1шт.
7
238-5232
O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro
1шт.
8
275680A1
VALVE
1-1/2
1шт.
9
365939A1
TUBE,38.1 mm OD, 332, 126 mm Length
1шт.
10
1-4571
HOSE
114 mm (4-1/2 in.)
1шт.
11
357400A1
BRACKET
1шт.
12
19-154
U-BOLT,5/16"-18 x 1 3/4" x 3
1шт.
13
495-21038
WASHER,5/16"
4шт.
14
231-1445
NUT,5/16"-18, GB
4шт.
15
19-1049
U-BOLT,5/16" - 18 x 50.80mm W x 76.20mm L
1шт.
16
701-339
ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS
Incl. Ref. 17
1шт.
18
366503A1
HOSE ASSY.
1330 mm (52-3/8")
1шт.
19
515-23381
CLAMP,1 1/2", Insul, 3/8" Bolt
4шт.
22
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
23
316457A1
BLOCK
1шт.
24
426-848
BOLT,Hex, 1/2" - 13 x 3", Gr 8
4шт.
25
238-6029
O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro
1шт.
26
700-105
HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB
1-7/16 fc sl x 33 or, Includes: Ref. 27 and 28
2шт.
28
637-64296
O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro
1шт.
29
327464A1
HOSE ASSY.
950 mm (37 in.)
1шт.
30
701-908
BHD LOCK NUT,1-7/16" - 12
M25
1шт.
31
220064A1
PLUG,M14 x 1.5, ORB
Incl. Ref. 32
1шт.
32
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
1шт.
33
315573A1
HOSE ASSY.
1700 mm (67 in.)
1шт.
34
364315A1
HOSE,25.4mm ID x 1305mm L
1305 mm (51 in.)
1шт.
35
366502A1
HOSE ASSY.
787 mm (31 in.)
1шт.
36
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
2шт.
37
515-22254
CLAMP,1", Insul, 5/16" Bolt
1шт.
38
327463A2
HOSE
622 mm (24 in.)
1шт.
39
701-319
ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS
Incl. 40
1шт.
40
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
41
379590A1
HOSE ASSY.
1270 mm (50 in.)
1шт.
43
337481A1
VALVE
see Figure 08-31
1шт.
46
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
2шт.
47
515-22159
CLAMP,5/8", Insul, 5/16" Bolt
2шт.
48
L126936
SPACER
1шт.
49
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
2шт.
50
829-1408
NUT,Hex, M8 x 1.25, Cl 10.9
3шт.
51
700-304
ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB
Incl. 52 and 53
2шт.
52
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
2шт.
53
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
2шт.
54
701-434
TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS
Incl. Ref. 55
1шт.
55
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
2шт.
56
700-318
ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB
Incl. Ref. 57 and 58
1шт.
57
637-64296
O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro
1шт.
59
700-307
ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB
Incl. 60 and 61
1шт.
60
637-64236
O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro
1шт.
61
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
62
827-10100
BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9
2шт.
64
327474A1
HOSE
1650 mm (65 in.)
1шт.
65
389297A2
TUBE,25.4 mm OD, 407, 114 mm Length
1шт.
66
701-116
UNION,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS
1-7/16 fc sl x blkhd, Includes: Ref. 67
1шт.
178889A1
DIAGNOSTIC COUPLER
diagnostic, Includes: Ref. 68 and 69
1шт.
68
H434163
DUST CAP
1шт.
69
182606A1
HYD CONNECTOR
Includes: Ref. 70
1шт.
70
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
1шт.
71
327471A1
HOSE
724 mm (28 in.)
1шт.
42
627-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd
1шт.
63
627-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd
1шт.
17
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
2шт.
20
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
1шт.
27
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
1шт.
58
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
1шт.
67
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
2шт.
44
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
2шт.
Выбрано товаров: 72
