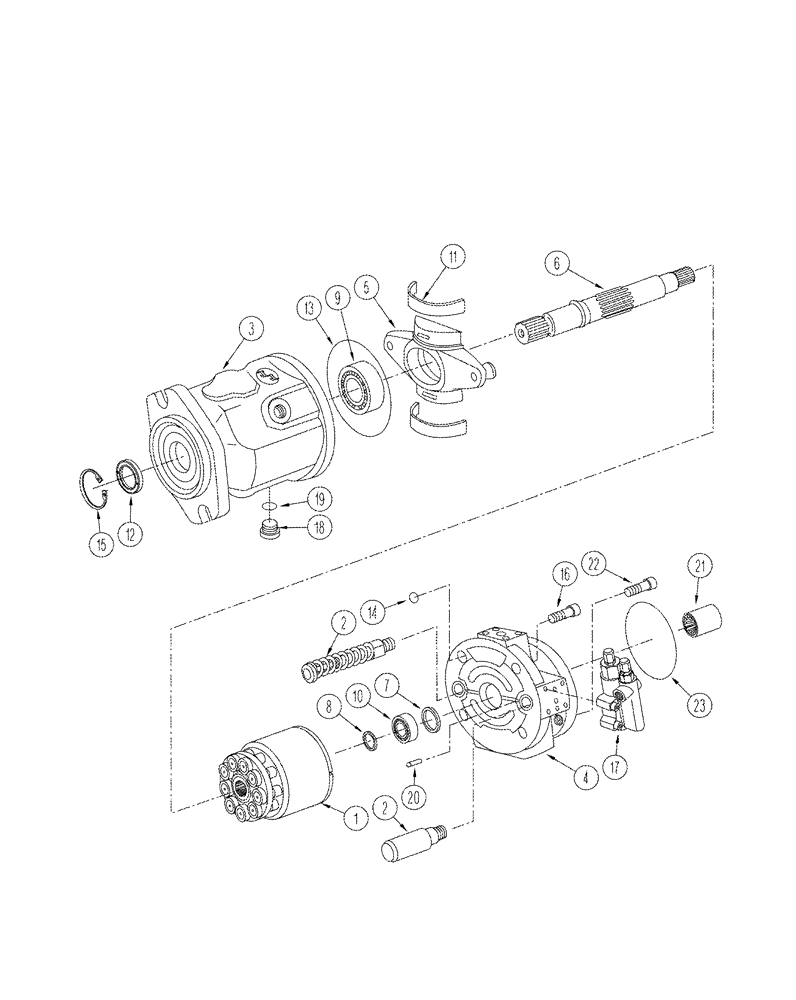

Запчасти Case IH STX325 (08-24) - PISTON PUMP ASSY STANDARD HYDRAULICS (08) - HYDRAULICS

278872A2

PUMP

71 cc, consists of: Ref. 1 - 23

1шт.

278872A2R

REMAN-HYD PUMP

STX275, STX325

1шт.

278872A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

CYLINDER ASSY

1шт.

2

NSS

NOT SOLD SEPARAT

PISTON ASSY control

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

4

NSS

NOT SOLD SEPARAT

BLOCK

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE swash

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING roller

1шт.

10

NSS

NOT SOLD SEPARAT

BEARING roller

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING support

2шт.

12

NSS

NOT SOLD SEPARAT

SEAL

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING

4шт.

15

NSS

NOT SOLD SEPARAT

RING snap

1шт.

16

NSS

NOT SOLD SEPARAT

SCREW

4шт.

17

352875A1

VALVE, CONTROL

1шт.

18

NSS

NOT SOLD SEPARAT

PLUG

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING

1шт.

20

NSS

NOT SOLD SEPARAT

PIN

1шт.

21

NSS

NOT SOLD SEPARAT

COUPLING

1шт.

22

NSS

NOT SOLD SEPARAT

SCREW

2шт.

23

409986A1

O-RING

1шт.

388293A1

SEAL KIT

Includes: Ref. 12 - 14 and 23

1шт.
