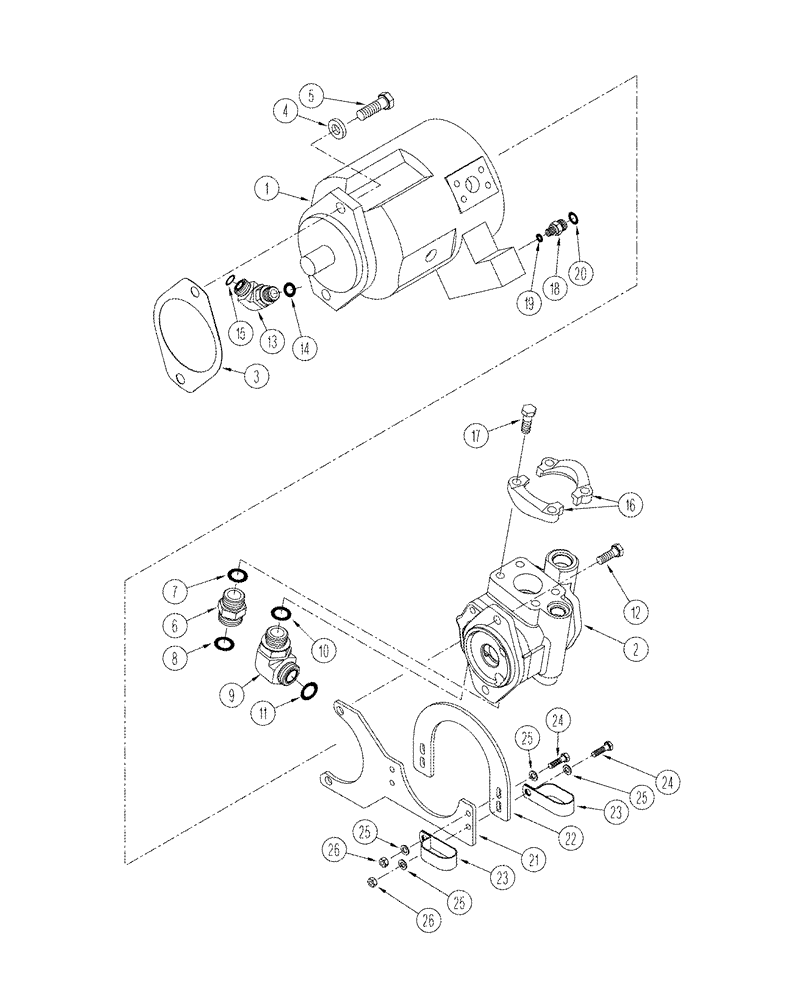

Запчасти Case IH STX325 (08-23) - STANDARD HYDRAULICS PUMP MOUNTING (08) - HYDRAULICS

1

278872A2

PUMP

piston, 71 cc, see Figure 08-24

1шт.

278872A2R

REMAN-HYD PUMP

STX275, STX325

1шт.

278872A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

227748A3

PUMP, HYDRAULIC

gear, See Figure 08-30

1шт.

432244A3R

REMAN-HYD PUMP

STX275, STX325 all Reman for New P/N 227748A3

1шт.

432244A3C

CORE-HYDRAULIC PUMP

Return Number

1шт.

3

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

Replaces D53692

1шт.

3

D53692

GASKET,0.79mm Thk

Order 238-5250

1шт.

4

496-81022

WASHER

11/16 x 1-1/4 x 1/4 in.

2шт.

5

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

2шт.

6

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

Incl. Ref. 7 and 8

1шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

9

201-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

1-7/16 fc x 1-5/16 or, Includes: Ref. 10 and 11

1шт.

10

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

12

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

13

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

Includes: Ref. 14 and 15

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

15

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

16

A14141

FLANGE

4шт.

17

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

8шт.

18

1957867C1

FILTER SCREEN

Includes: Ref. 19 and 20

1шт.

19

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

20

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

21

339186A1

BRACKET

1шт.

22

90-6743T1

SHIELD

1шт.

23

L111928

CLAMP

2шт.

25

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

26

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

24

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

8

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

11

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.
