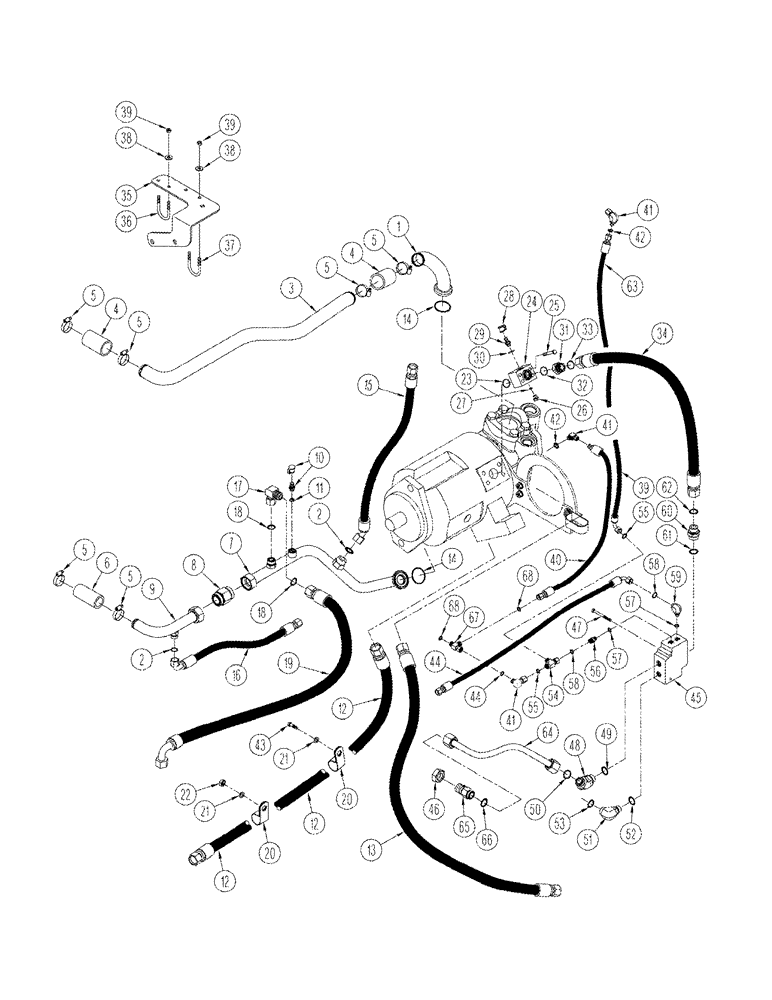

Запчасти Case IH STX325 (08-22) - STANDARD HYDRAULICS PUMP LUBRICATION CIRCUIT (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
357514A1
TUBE,50.8 mm OD, 150, 123 mm Length
1шт.
2
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
2шт.
3
374480A1
TUBE
1шт.
4
31-2427
HOSE,2.00" ID x 6.00"
102 mm (4 in.), cut from 4-4568
2шт.
6
1-4571
HOSE
114 mm (4-1/2 in.), cut from 1-4482
1шт.
7
357516A2
TUBE
1шт.
8
275680A1
VALVE
1-1/2
1шт.
9
374478A1
TUBE,38.1 mm OD, 159 mm Length
1шт.
11
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
12
397577A1
HOSE ASSY.
1550 mm (61 in.)
1шт.
13
375333A1
HOSE ASSY.
1372 mm (54 in.)
1шт.
14
238-6228
O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro
2шт.
15
390574A1
HOSE ASSY.
584 mm (23 in.)
1шт.
16
327499A1
HOSE ASSY.
665 mm (26-1/2")
1шт.
17
701-339
ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS
Incl. Ref. 18
1шт.
19
375334A2
HOSE ASSY.
1486 mm (58-1/2 in.)
1шт.
20
515-23381
CLAMP,1 1/2", Insul, 3/8" Bolt
5шт.
21
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
15шт.
22
829-1408
NUT,Hex, M8 x 1.25, Cl 10.9
8шт.
24
347314A1
BLOCK
1шт.
25
426-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8
4шт.
26
220064A1
PLUG,M14 x 1.5, ORB
1шт.
27
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
1шт.
178889A1
DIAGNOSTIC COUPLER
diagnostic, Includes: Ref. 28 and 29
1шт.
28
H434163
DUST CAP
1шт.
29
182606A1
HYD CONNECTOR
Includes: Ref. 30
1шт.
30
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
1шт.
31
700-159
HYD CONNECTOR,1-7/16" - 12 Male ORFS x M22 x 1.5 Male ORB
Incl. Ref. 32 and 33
1шт.
32
637-63193
O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro
1шт.
34
375332A1
HOSE ASSY.
1308 mm (51 in.)
1шт.
35
357400A1
BRACKET
1шт.
36
19-154
U-BOLT,5/16"-18 x 1 3/4" x 3
1шт.
37
19-1049
U-BOLT,5/16" - 18 x 50.80mm W x 76.20mm L
1шт.
38
495-21038
WASHER,5/16"
4шт.
39
231-1445
NUT,5/16"-18, GB
4шт.
40
375336A1
HOSE ASSY.
991 mm (39 in.)
1шт.
41
701-319
ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS
Incl. 42
1шт.
42
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
44
327471A1
HOSE
724 mm (28 in.)
1шт.
45
363294A1
VALVE
see Figure 08-25
1шт.
46
701-908
BHD LOCK NUT,1-7/16" - 12
M25
1шт.
47
827-8090
BOLT,Hex, M8 x 1.25 x 90mm, Cl 10.9
2шт.
48
700-318
ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB
Incl. Ref. 49 and 50
1шт.
49
637-64296
O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro
1шт.
51
700-307
ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB
Incl. 52 and 53
1шт.
52
637-64236
O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro
1шт.
53
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
54
701-422
TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS
Incl. Ref. 55
1шт.
55
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
2шт.
56
700-101
HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB
Incl. 57, 58
1шт.
57
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
2шт.
58
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
2шт.
59
700-304
ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB
Incl. 57 and 58
1шт.
60
700-105
HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB
1-7/16 fc sl x 33 or, Includes: Ref. 61 and 62
1шт.
61
637-64296
O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro
1шт.
63
327474A1
HOSE
1650 mm (65 in.)
1шт.
64
391035A2
TUBE
1шт.
65
701-116
UNION,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS
1-7/16 fc sl x blkhd, Includes: Ref. 66
1шт.
68
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
2шт.
43
627-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd
1шт.
18
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
2шт.
33
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
1шт.
50
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
1шт.
62
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
1шт.
66
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
1шт.
Выбрано товаров: 69
