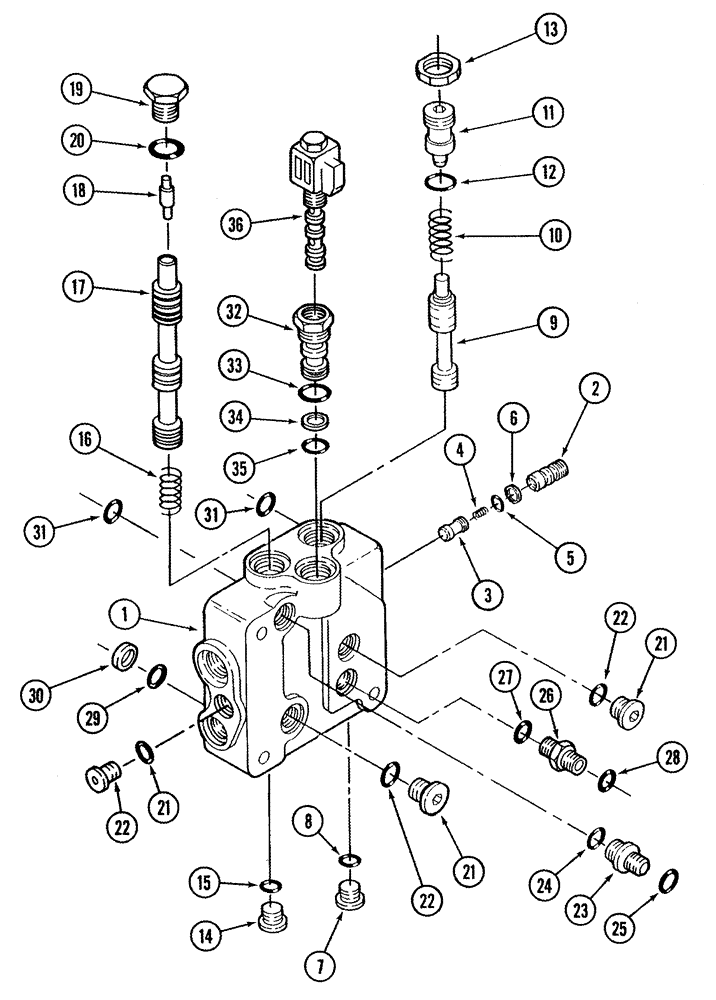

Запчасти Case IH STX325 (08-15) - REGULATOR VALVE ASSY (08) - HYDRAULICS

339014A2

VALVE

consists of: Ref. 1 - 36

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

1542563C1

KIT

consists of: Ref. 2 - 6

1шт.

2

1994580C1

PLUG

1шт.

3

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

1шт.

4

1994581C1

SPRING,6.1mm OD x 31.1mm L

1шт.

5

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

6

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

1шт.

7

221579A1

PLUG,M22 x 1.5 ORB

Includes Ref. 8

1шт.

8

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

9

119182A3

SPOOL

1шт.

10

176312A1

SPRING

1шт.

11

313941A1

PLUG

1шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

13

218-1280

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

344573A1

PLUG

lube, consists of: Ref. 14 - 15

1шт.

14

NSS

NOT SOLD SEPARAT

PLUG

1шт.

15

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

16

330105A1

SPRING

1шт.

17

330103A1

SPOOL

1шт.

18

330104A1

PIN

1шт.

19

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 20

1шт.

21

221578A1

PLUG,M18 x 1.5 ORB

Includes Ref. 22

3шт.

22

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

3шт.

339487A2

HYD CONNECTOR

orificed, consists of: Ref. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

ADAPTER

1шт.

24

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

25

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

26

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 27, 28

1шт.

27

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

28

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

29

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

30

339489A1

WASHER

1шт.

31

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

2шт.

339107A1

PLUG

consists of: Ref. 32 - 35

1шт.

32

NSS

NOT SOLD SEPARAT

PLUG

1шт.

33

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

34

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

1шт.

35

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

36

325409A2

SOLENOID VALVE

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
