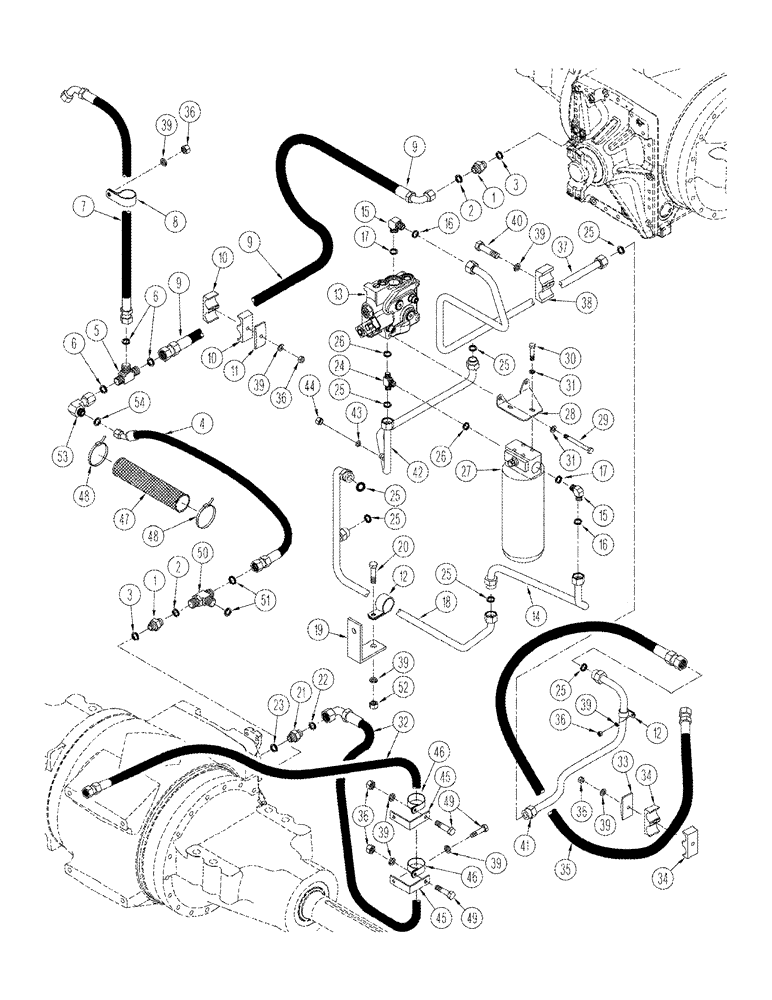

Запчасти Case IH STX325 (08-14) - AXLE HYDRAULICS LUBRICATION AND COOLING CIRCUIT ACCUSTEER Tractor (08) - HYDRAULICS

1

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. Ref. 2 and 3

2шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

3

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

4

392471A1

HOSE ASSY.

1810 mm (71 in.)

1шт.

5

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

M12 fc sl x blkhd fc sl, Includes: Ref. 6

1шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

7

327488A2

HOSE

880 mm (34-1/2 in.)

1шт.

8

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

P-type

1шт.

9

327478A2

HOSE ASSY.

1615 mm (63-1/2 in.)

1шт.

10

50-2551T1

CLAMP

4шт.

11

50-2533T1

PLATE

2шт.

12

515-22254

CLAMP,1", Insul, 5/16" Bolt

3шт.

13

339014A2

VALVE

see Figure 08-15

1шт.

14

338905A1

TUBE

1шт.

15

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. Ref. 16 and 17

2шт.

17

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

18

338907A3

TUBE

1шт.

19

383715A2

BRACKET

2шт.

21

700-106

HYD CONNECTOR,11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. Ref. 22 and 23

1шт.

22

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

23

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

24

328232A1

TEE

1шт.

26

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

27

296309A1

FILTER

see Figure 08-04

1шт.

28

347167A2

BRACKET

mounting, filter

1шт.

29

827-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

3шт.

30

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

31

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

32

387467A1

HOSE ASSY.

1853 mm (73 in.)

1шт.

33

50-2668T1

PLATE

1шт.

34

50-2965T1

HOSE CLAMP

2шт.

35

361770A1

HOSE ASSY.

1270 mm (50 in.)

1шт.

36

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

7шт.

37

341298A3

TUBE

1шт.

38

R15257

CLAMP

1шт.

39

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

14шт.

40

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

41

352556A3

TUBE,25.4 mm OD, 650, 490 mm Length

1шт.

42

389353A1

TUBE

Includes: Ref. 43 and 44

1шт.

43

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

44

201-906

CAP,1"-14 ORFS

1шт.

45

384501A1

PLATE

2шт.

46

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

2шт.

47

S120426

TUBE

1шт.

48

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in.

2шт.

49

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

50

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. Ref. 51

1шт.

51

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

52

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

53

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. Ref. 54

1шт.

54

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

20

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

16

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

25

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

6шт.
