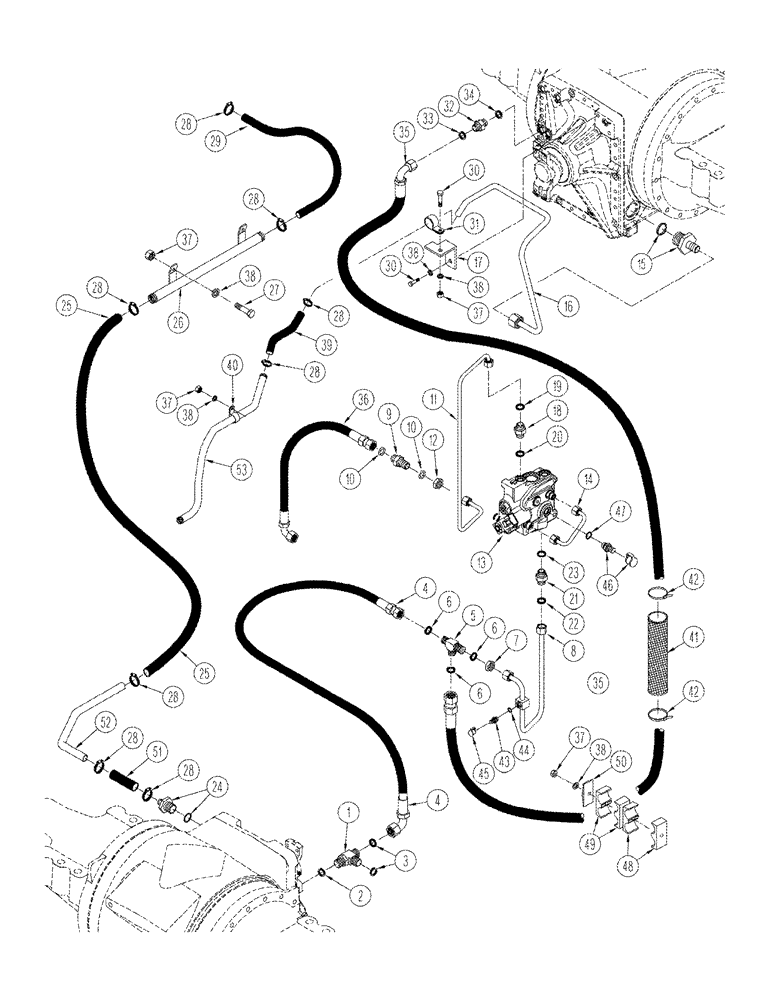

Запчасти Case IH STX325 (08-13) - AXLE HYDRAULICS LUBRICATION CIRCUIT ACCUSTEER Tractor (08) - HYDRAULICS

1

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. Ref. 2 and 3

1шт.

2

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

4

360201A4

HOSE ASSY.

1925 mm (75-1/2 in.)

1шт.

5

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

M12 fc sl x blkhd fc sl, Includes: Ref. 6

1шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

7

701-903

NUT,13/16" - 16

1шт.

8

341282A2

TUBE

1шт.

9

X4837565

FITTING

13/16 fc sl x blkhd, Includes: Ref. 10

1шт.

10

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

11

391409A1

TUBE

1шт.

12

701-903

NUT,13/16" - 16

1шт.

13

339014A2

VALVE

see Figure 08-15

1шт.

14

341290A1

TUBE,9.5 mm OD, 101, 46 mm Length

1шт.

15

352734A1

HYD CONNECTOR

1шт.

16

360356A3

TUBE

1шт.

17

358915A1

BRACKET

1шт.

18

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. Ref. 19 and 20

1шт.

19

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

20

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

21

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. Ref. 22 and 23

1шт.

22

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

23

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

24

337545A1

HYD CONNECTOR

1шт.

25

370250A1

HOSE

990 mm (39 in.), cut from S118383

1шт.

26

363713A1

TUBE,25.4 mm OD, 625, 55 mm Length

1шт.

28

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

8шт.

29

327491A1

HOSE ASSY.

660 mm (26 in.), cut from 2-7659

1шт.

30

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

31

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

32

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. Ref. 33 and 34

1шт.

33

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

34

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

35

360199A1

HOSE ASSY.

1903 mm (75 in.)

1шт.

36

406045A1

HOSE ASSY.

394 mm (15-1/2 in.)

1шт.

37

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

8шт.

38

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

9шт.

39

408000A1

HOSE

609 mm (24 in.), cut from 31-2755

1шт.

40

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

1-1/16 ID

2шт.

41

S120426

TUBE

1шт.

42

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in.

2шт.

43

392690A1

COUPLING

diagnostic, Includes: Ref. 44

1шт.

44

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

45

399032A1

CAP

1шт.

46

358968A1

FITTING

diagnostic, M18 orb x 1.5, Includes: Ref. 47

1шт.

47

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

48

50-2551T1

CLAMP

4шт.

49

50-2534T1

CLAMP

4шт.

50

50-2533T1

PLATE

2шт.

51

31-2257

HOSE

2шт.

52

404960A1

TUBE

1шт.

53

406581A1

TUBE

1шт.

27

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.
