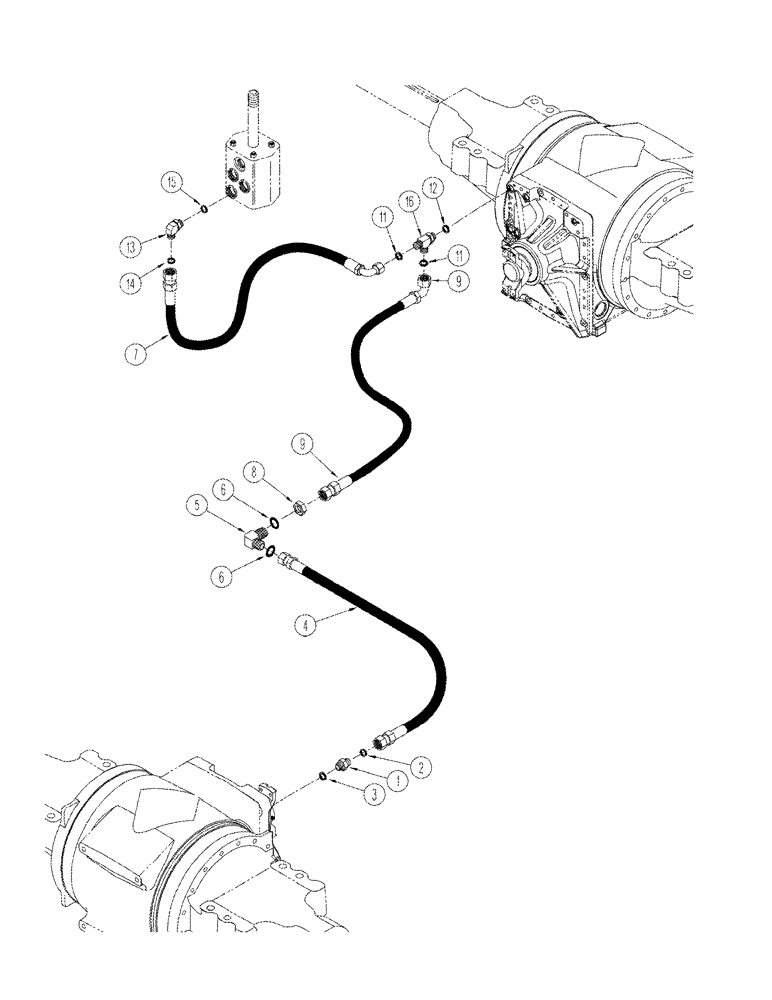

Запчасти Case IH STX325 (08-10) - AXLE HYDRAULICS SERVICE BRAKE CIRCUIT ACCUSTEER Tractor (08) - HYDRAULICS

1

401760A1

VALVE

13/16 fc sl x 22 or, Includes: Ref. 2 and 3

1шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

3

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

4

360203A3

HOSE ASSY.

1803 mm (71 in.)

1шт.

5

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

1шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

7

349482A2

HOSE ASSY.

1238 mm (48-1/2 in.)

1шт.

8

701-903

NUT,13/16" - 16

1шт.

9

361951A2

HOSE ASSY.

1677 mm (66 in.)

1шт.

10

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. Ref. 11 and 12

1шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

12

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

13

700-348

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. Ref. 14 and 15

1шт.

14

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

15

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.
