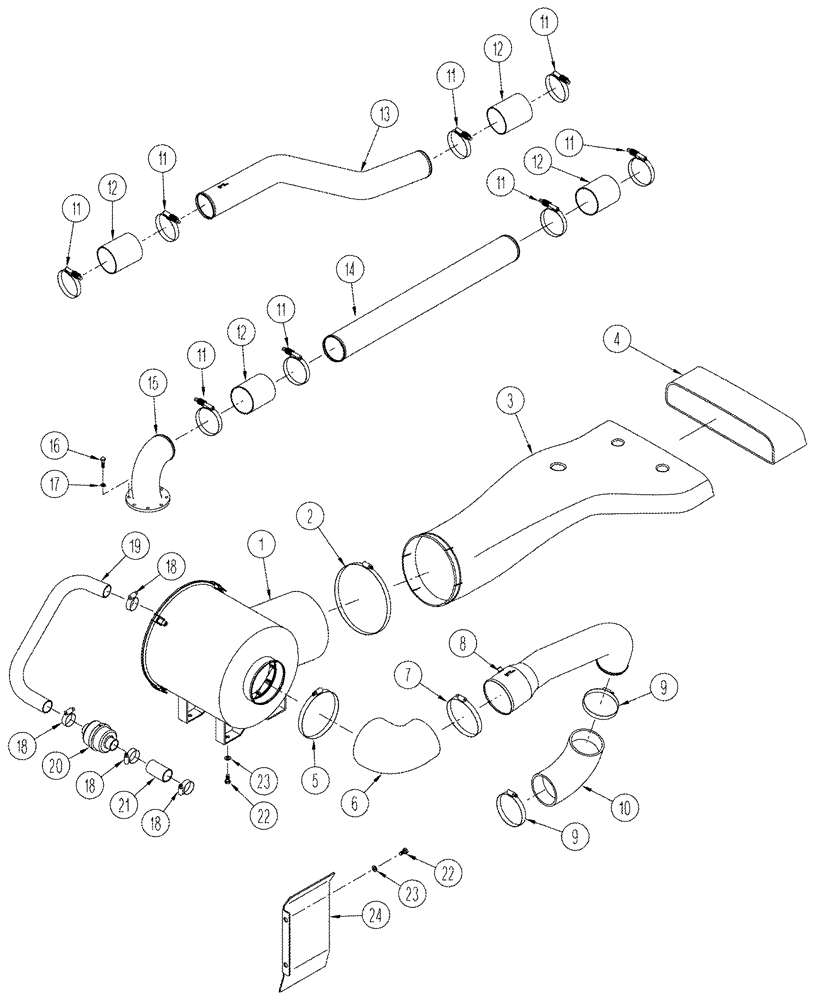

Запчасти Case IH STX325 (02-05) - AIR INTAKE (02) - ENGINE

1

363786A1

AIR CLEANER

see Figure 02-08

1шт.

2

214-31160

HOSE CLAMP,9-1/4" - 10-1/8", HD Worm

1шт.

3

369874A1

DUCT

1шт.

4

341855A2

FOAM INSULATION

1шт.

5

214-32104

HOSE CLAMP,5-3/4" - 6-5/8", HD Worm, W/ Liner

5-3/4 - 6-5/8

1шт.

6

70-5833T1

ELBOW

reducing

1шт.

7

214-3288

HOSE CLAMP,4-3/4" - 5-5/8", HD Worm, W/ Liner

140 mm (5-1/2 in.)

1шт.

8

362622A1

AIR INTAKE TUBE,101.6 mm OD, 511.7, 193.9 mm Length

1шт.

9

214-3272

HOSE CLAMP,3-3/4" - 4-5/8", HD Worm, W/ Liner

114 mm ( 4-1/2 in.)

2шт.

10

335853A1

ELBOW

air intake

1шт.

11

L116820

CLAMP,82.55mm - 104.78mm

8шт.

12

329737A1

HOSE

110 mm (4 in.)

4шт.

13

364260A2

AIR INTAKE TUBE,88.9 mm OD, 790.7, 150 mm Length

1шт.

14

393911A1

AIR INTAKE TUBE,88.9 mm OD

1шт.

15

391692A1

ELBOW

1шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

18

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

4шт.

19

396042A1

TUBE

aspirator

1шт.

20

307123A1

VALVE

aspirator exhaust

1шт.

21

370853A2

HOSE

aspirator, cut from 1-4482

1шт.

22

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

6шт.

24

396041A1

BRACKET

support

1шт.

16

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.
