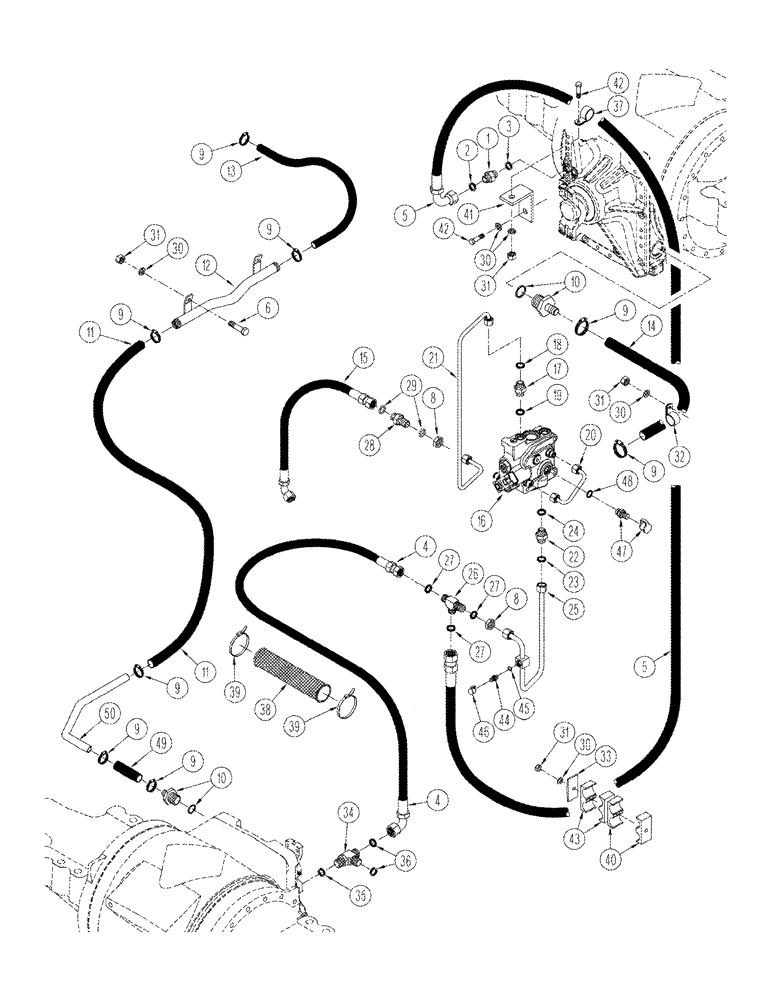

Запчасти Case IH STX325 (08-08) - AXLE HYDRAULICS LUBRICATION CIRCUIT (08) - HYDRAULICS

1

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. Ref. 2 and 3

1шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

3

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

4

360201A4

HOSE ASSY.

1925 mm (75-1/2 in.)

1шт.

5

391243A2

HOSE ASSY.

2184 mm (86 in.)

1шт.

7

701-909

NUT,11/16" - 16

M10

1шт.

8

701-903

NUT,13/16" - 16

2шт.

9

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

6шт.

10

337545A1

HYD CONNECTOR

axle drain

2шт.

11

370250A1

HOSE

990 mm (39 in.), cut from S118383

1шт.

12

363713A1

TUBE,25.4 mm OD, 625, 55 mm Length

1шт.

13

327491A1

HOSE ASSY.

660 mm (26 in.), cut from 31-2755

1шт.

14

353649A1

HOSE,1.00" ID x 56.00"

1346 mm (53 in.), cut from 31-2755

1шт.

15

406045A1

HOSE ASSY.

394 mm (15-1/2 in.)

1шт.

16

339014A2

VALVE

See Figure 08-15

1шт.

17

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. Ref. 18 and 19

1шт.

18

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

19

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

20

341290A1

TUBE,9.5 mm OD, 101, 46 mm Length

1шт.

21

391409A1

TUBE

1шт.

22

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. Ref. 23 and 24

1шт.

23

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

24

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

25

341282A2

TUBE

1шт.

26

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

M12 fc sl x blkhd fc sl, Includes: Ref. 27

1шт.

27

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

28

701-121

UNION,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. Ref. 29

1шт.

29

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

30

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

11шт.

31

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

10шт.

32

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

2шт.

33

50-2533T1

PLATE

3шт.

34

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. Ref. 35 and 36

1шт.

35

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

36

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

37

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

38

387840A1

SLEEVE

protective

1шт.

39

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in.

2шт.

40

50-2551T1

CLAMP

6шт.

41

384501A1

PLATE

1шт.

42

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

43

50-2534T1

CLAMP

6шт.

44

392690A1

COUPLING

diagnostic, Includes: Ref. 45

1шт.

45

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

46

399032A1

CAP

1шт.

47

358968A1

FITTING

diagnostic, M18 orb x 1.5, Includes: Ref. 48

1шт.

48

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

49

31-2757

HOSE,1.00" ID x 4.00"

102 mm (4 in.), cut from S118383X

1шт.

50

404960A1

TUBE

1шт.

6

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.
