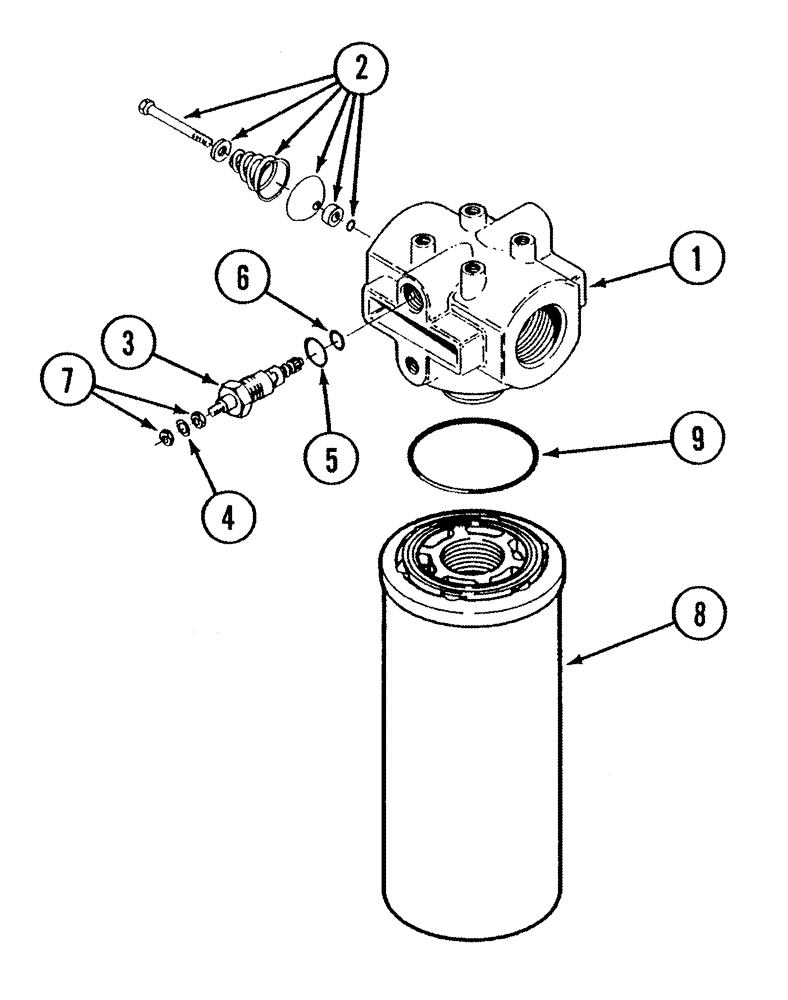

Запчасти Case IH STX325 (08-04) - OIL FILTER - MAIN HYDRAULICS (BELOW BATTERY) (08) - HYDRAULICS

296309A1

FILTER

consists of: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE bypass

1шт.

N6755

PRESSURE SWITCH

restriction, consists of: Ref. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

INDICATOR

1шт.

4

493-21020

LOCK WASHER,Int Tooth, #10

1шт.

6

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

7

129-667

NUT,#10-32, LH

2шт.

254353A1

HYDRAULIC OIL FILTER

consists of: Ref. 8 - 9

1шт.

8

NSS

NOT SOLD SEPARAT

ELEMENT

1шт.

9

70923815

O-RING,-230, 70 Duro, 2.484" ID x .139" Thk

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
