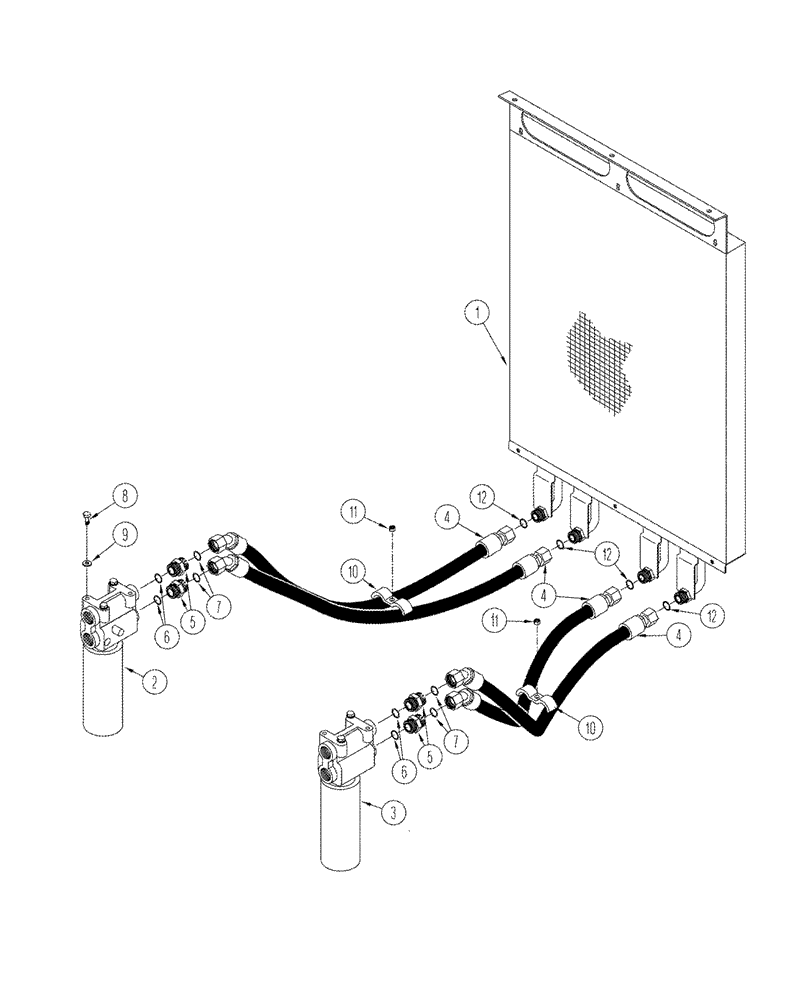

Запчасти Case IH STX325 (08-01) - HYDRAULIC OIL COOLER (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

361082A1

COOLER

1шт.

2

296313A2

FILTER

left-hand, see Figure 08-03

1шт.

3

324570A3

FILTER

right-hand, See Figure 08-03

1шт.

4

377528A1

HOSE ASSY.

971 mm (38 in.)

4шт.

5

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 6, 7

4шт.

6

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

4шт.

7

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

8

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

10

R15257

CLAMP

2шт.

12

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

Выбрано товаров: 11
