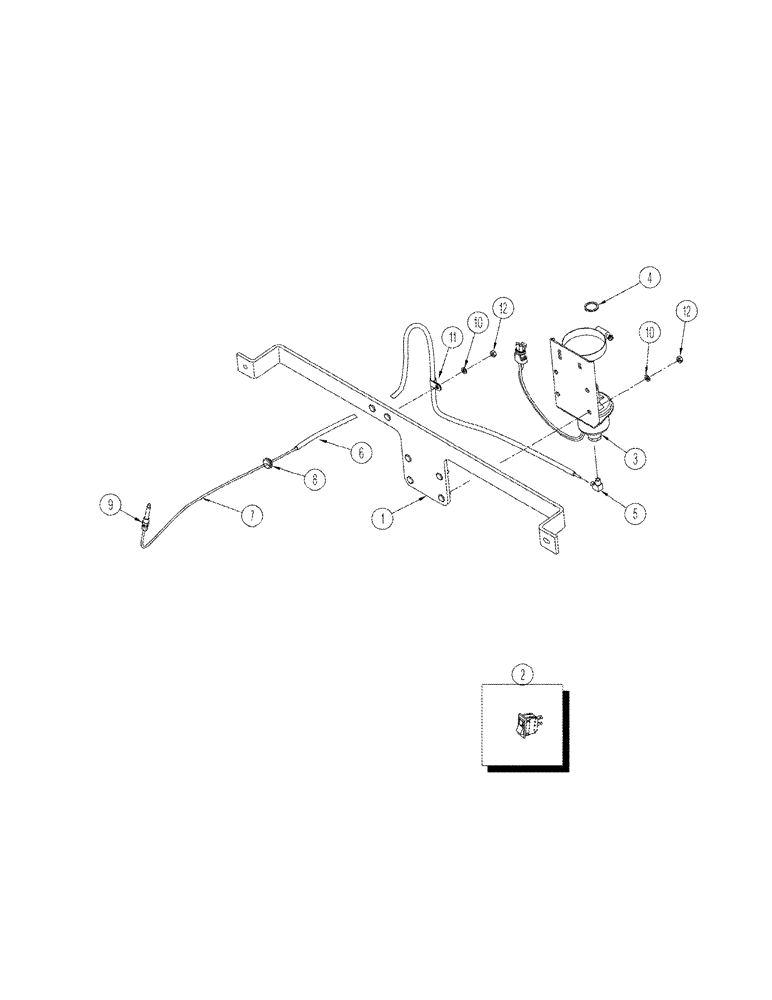

Запчасти Case IH STX325 (02-04) - ETHER START SYSTEM (02) - ENGINE

1

391689A1

BRACKET

1шт.

2

229364A1

SWITCH

rocker, ether start

1шт.

392355A1

SOLENOID VALVE

consists of: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

VALVE control, electrical

1шт.

4

392377A1

GASKET

1шт.

5

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube OD

1шт.

6

391542A1

PLASTIC-RUBBER TUBE,0.234" ID, 928" Length

1шт.

7

340977A2

TUBE

1шт.

8

248-2331

GROMMET,1/8" ID x 5/8" Groove Dia, Str Cut

1шт.

9

389903A1

INJECTOR ASSY.

atomizer

1шт.

10

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

11

515-2195

CLAMP,3/8", Insul, 1/4" Bolt

2шт.

12

829-1406

NUT,Hex, M6 x 1, Cl 10.9

6шт.

13

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

(7.9 mm) Ether start harness, Not illustrated

1шт.
