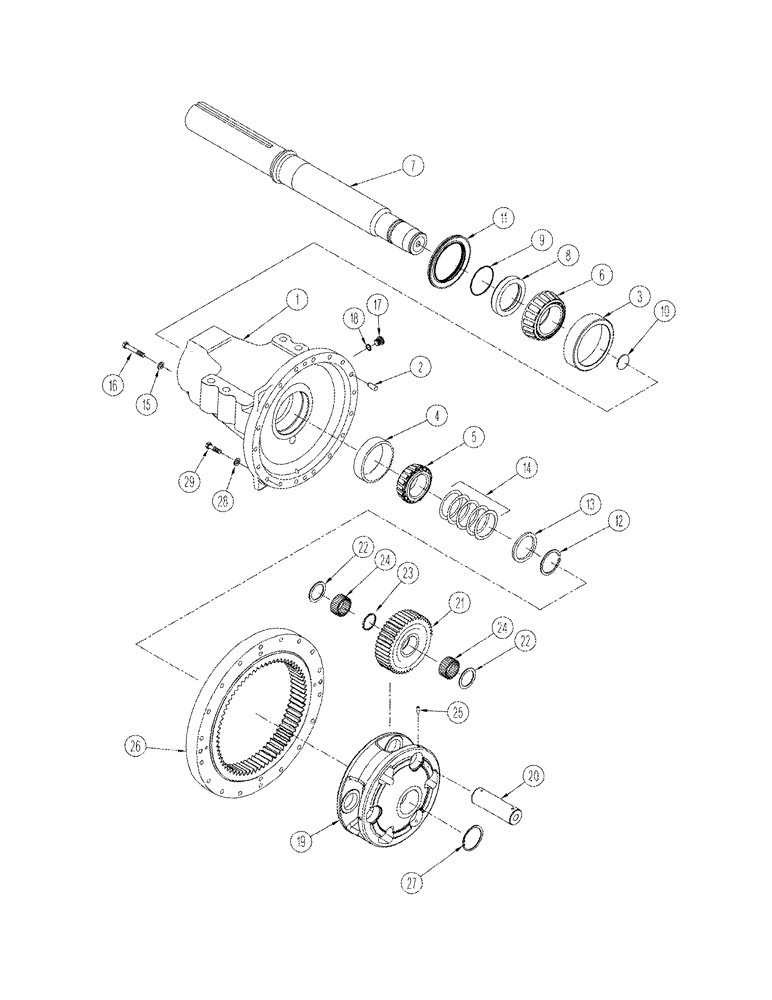

Запчасти Case IH STX325 (06-44) - AXLE ASSY FINAL DRIVE (06) - POWER TRAIN

307347A2

CARRIER

4, consists of: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

837-16040

DOWEL,M16 x 40

2шт.

3

619697C1

BEARING CUP,149.98mm OD x 26.90mm W

1шт.

4

368991A1

BEARING, CUP,180.96mm OD x 37.98mm W

1шт.

5

1963841C1

ROLLER BEARING,95.26mm ID x 36.22mm W

1шт.

6

368992A1

ROLLER BEARING,104.77mm ID x 47.93mm W

1шт.

360336A4

SHAFT

axle, 4, consists of: Ref. 7 - 10

1шт.

7

NSS

NOT SOLD SEPARAT

SHAFT, 4

1шт.

8

1963837C1

BUSHING,104.83mm ID x 132.65mm OD x 18mm L

outboard

1шт.

9

238-5155

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

10

1981270C1

INSERT

1шт.

11

1963839C1

OIL SEAL

1шт.

12

243856A1

RING, SNAP

RING SNAP

1шт.

13

124744C1

WASHER,95.63mm ID x 120mm OD x 8mm Thk

1шт.

14

143921C1

SHIM,95mm ID x 120mm OD x 0.76mm Thk

1шт.

14

143922C1

SHIM,95mm ID x 120mm OD x 0.3mm Thk

1шт.

14

143923C1

SHIM,95mm ID x 120mm OD x 0.13mm Thk

1шт.

14

143924C1

SHIM,95mm ID x 120mm OD x 0.1mm Thk

1шт.

14

143925C1

SHIM,95mm ID x 120mm OD x 0.08mm Thk

1шт.

15

95-31038

WASHER,5/16"

4шт.

16

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

4шт.

17

221578A1

PLUG,M18 x 1.5 ORB

Includes Ref. 18

1шт.

18

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

19

388366A1

PINION CARRIER

GEAR CARRIER planetary

1шт.

20

310697A3

SHAFT,31.75mm ID x 63.4mm OD x 130mm L

3шт.

21

310694A2

PLANETARY GEAR,29T

29 T

3шт.

22

385900A1

THRUST WASHER

6шт.

23

310728A2

RING

3шт.

24

1349347C1

NEEDLE ROLLER,Needle, 6.65mm OD x 34.09mm L

1шт.

25

838-3826

PIN,M8 x 26, Coiled

3шт.

26

310695A1

RING GEAR,77T

77 T

2шт.

27

101-11350

SNAP RING,#350, Ext

2шт.

28

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

36шт.

29

828-16150

BOLT,Hex, M16 x 2 x 150mm, Cl 10.9

18шт.
