Запчасти Case IH STX325 (06-40) - AXLE ASSY CENTER AND LEFT-HAND CARRIER (06) - POWER TRAIN

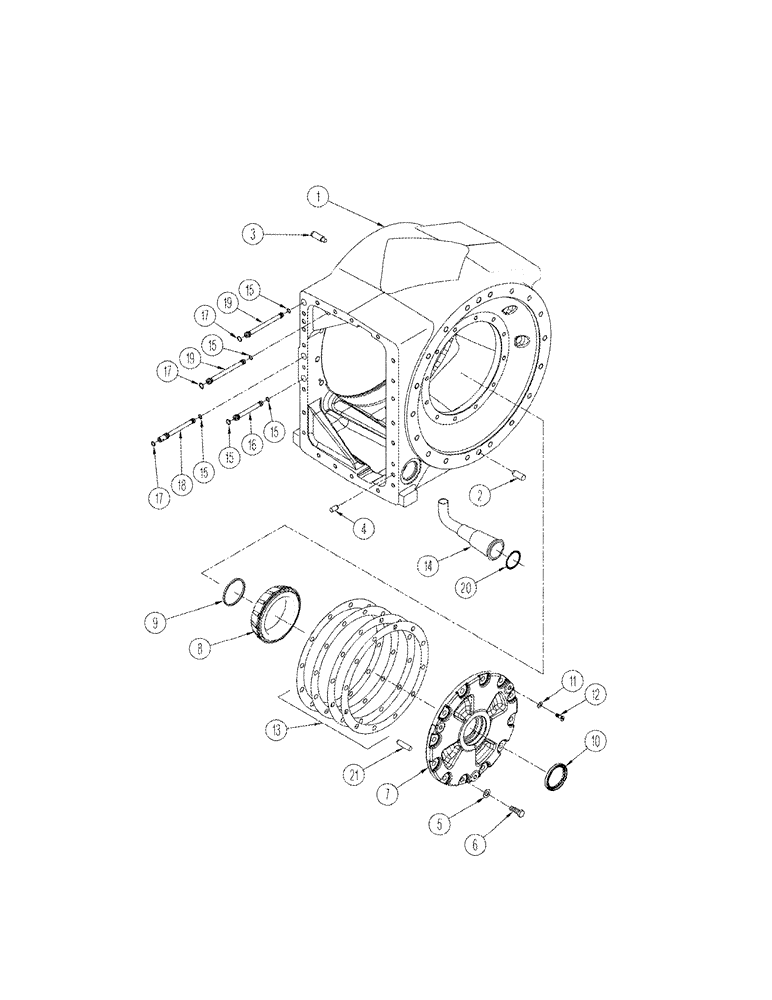

Схема запчастей Case IH STX325 - (06-40) - AXLE ASSY CENTER AND LEFT-HAND CARRIER (06) - POWER TRAIN
9
20
18
2
15
12
4
14
19
1
5
13
17
7
6
3
15
8
10
17
15
19
15
17
16
15
21
11

Артикул

Название

Примечание

Количество

388968A1

CARRIER

center, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

CARRIER

1шт.

2

NSS

NOT SOLD SEPARAT

PIN dowel

2шт.

3

NSS

NOT SOLD SEPARAT

PIN, 16 x 40 mm

2шт.

4

NSS

NOT SOLD SEPARAT

PIN, 12 x 25 mm

2шт.

5

1251958C1

WASHER,13mm ID x 25.40mm OD x 1.367mm, HTS

12шт.

6

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

12шт.

7

231637A2

COVER,66 mm ID x 136 mm OD x 71.45 mm

bearing, left-hand

1шт.

8

253932A1

ROLLER BEARING,119.99mm ID x 37.98mm W

1шт.

9

139060C2

SEAL,82.6mm ID x 88.6mm OD x 4.5mm Thk

1шт.

10

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

1шт.

11

95-81100

WASHER,33/64" x 7/8" x .049"

3шт.

12

843-1812

SCREW,Flat, M8 x 12mm, Class 4.8

3шт.

13

255121A1

SHIM,290mm ID x 345mm OD x 0.076mm Thk

1шт.

13

255122A1

SHIM,290mm ID x 345mm OD x 0.102mm Thk

1шт.

13

255123A1

SHIM,290mm ID x 345mm OD x 0.13mm Thk

1шт.

13

255124A1

SHIM,290mm ID x 345mm OD x 0.5mm Thk

1шт.

14

229553A3

TUBE

suction

1шт.

15

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

5шт.

16

245162A1

TUBE,7mm ID x 11.85mm OD x 110.5mm Length

jumper, lubrication

1шт.

17

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

3шт.

18

329808A1

TUBE,7.5 mm ID, 11.85 - 15 mm OD, 117 mm Length

jumper, lubrication

1шт.

19

228893A2

TUBE,7.47 mm ID, 11.85 mm OD

service/park brake

2шт.

20

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

1шт.

21

837-6055

DOWEL,M6 x 55

1шт.

Выбрано товаров: 25
