Запчасти Case IH STX325 (06-38) - AXLE ASSY FRONT COVER (06) - POWER TRAIN

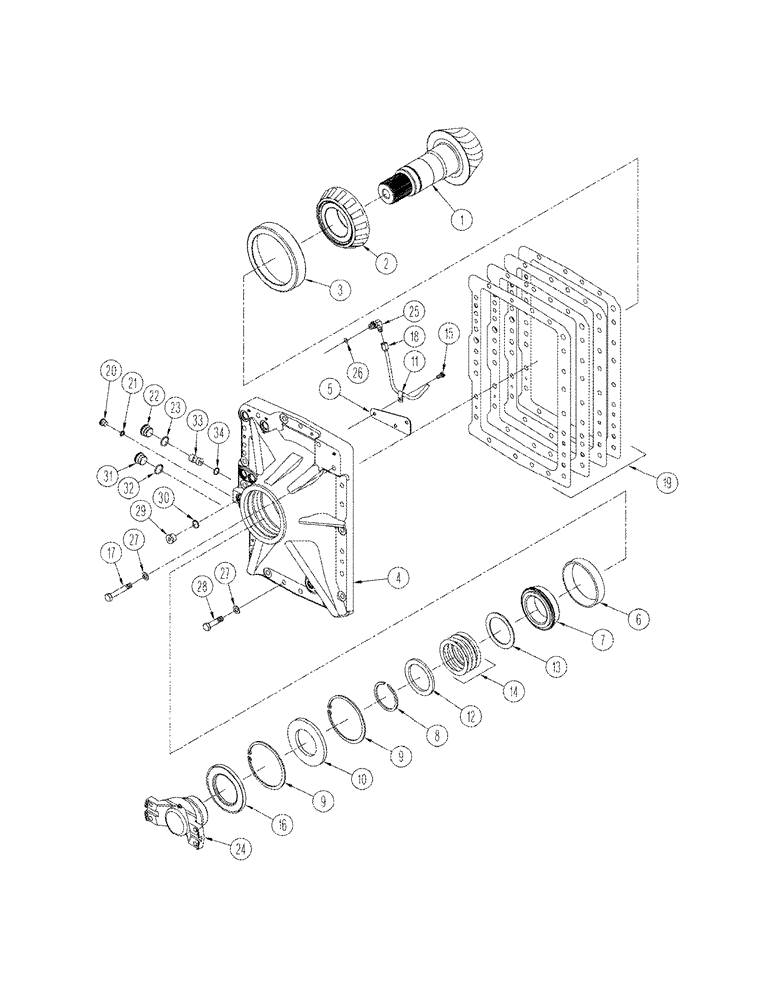

Схема запчастей Case IH STX325 - (06-38) - AXLE ASSY FRONT COVER (06) - POWER TRAIN
18
11
28
23
21
26
19
24
2
30
33
20
3
8
13
17
9
27
12
9
16
31
22
29
14
1
7
5
25
32
27
4
34
15
6
10

Артикул

Название

Примечание

Количество

302259A2

BEVEL GEAR

pinion shaft, see Figures 06-41, 06-42, consists of: Ref. 1

1шт.

1

NSS

NOT SOLD SEPARAT

SHAFT pinion, 12 T / 53 T

1шт.

2

248118A1

TAPERED BEARING,88.9125 mm ID x 52.8625 mm

1шт.

3

248114A1

BEARING, CUP,200.01mm OD x 34.82mm W

1шт.

4

328429A3

COVER

1шт.

5

246146A1

BAFFLE

1шт.

6

191440A1

BEARING CUP,140 mm OD x 28.4734 mm

1шт.

7

67190R91

BEARING ASSY,82.5627 mm ID x 36.6135 mm

1шт.

8

229515A1

RING, SNAP

RING SNAP M4

1шт.

9

100-21550

SNAP RING,5.50", Int, #550

2шт.

10

259516A1

OIL SEAL

1шт.

11

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

(M7.9)

1шт.

12

228968A2

SPACER

thick

1шт.

13

191713A1

SPACER

thin

1шт.

14

191709A1

SHIM,0.076mm Thk

1шт.

14

191711A1

SHIM,0.101mm Thk

1шт.

14

191712A1

SHIM,0.130mm Thk

1шт.

14

220785A1

SHIM,84mm ID x 110mm OD x 0.5mm Thk

1шт.

15

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

4шт.

16

284186A1

SEAL,88.9mm ID x 146.15mm OD x 10mm Thk

1шт.

17

828-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

8шт.

18

234433A1

TUBE

lubrication

1шт.

19

226492A2

SHIM,0.076mm Thk

1шт.

19

226493A2

SHIM,393mm OD x 0.1mm Thk

1шт.

19

226494A2

SHIM,393mm OD x 0.13mm Thk

1шт.

19

226496A2

SHIM,0.508mm Thk

1шт.

20

221573A1

PLUG,Hex Soc, M12 x 1.5, ORB

M12 orb x 13, Incl. Ref. 21

2шт.

21

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

2шт.

22

221580A1

PLUG,M27 x 2 ORB

Includes Ref. 23

1шт.

23

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

24

375092A1

YOKE

UNIVERSAL JOINT YOKE 7C, STX 275 (1)

1шт.

24

395209A1

YOKE

UNIVERSAL JOINT YOKE STX 325 (1)

1шт.

25

218-5284

ELBOW,90 Degree, 1/2"-20, 37 Degree x 9/16"-18, O-Ring

5/16 x 3/8, Includes: Ref. 26

1шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

27

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

22шт.

28

828-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

14шт.

29

86625138

PLUG,7/18" - 14

Includes Ref. 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

31

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Includes Ref. 32

1шт.

32

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

33

347294A3

PUMP

jet

1шт.

34

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

1шт.

Выбрано товаров: 42
