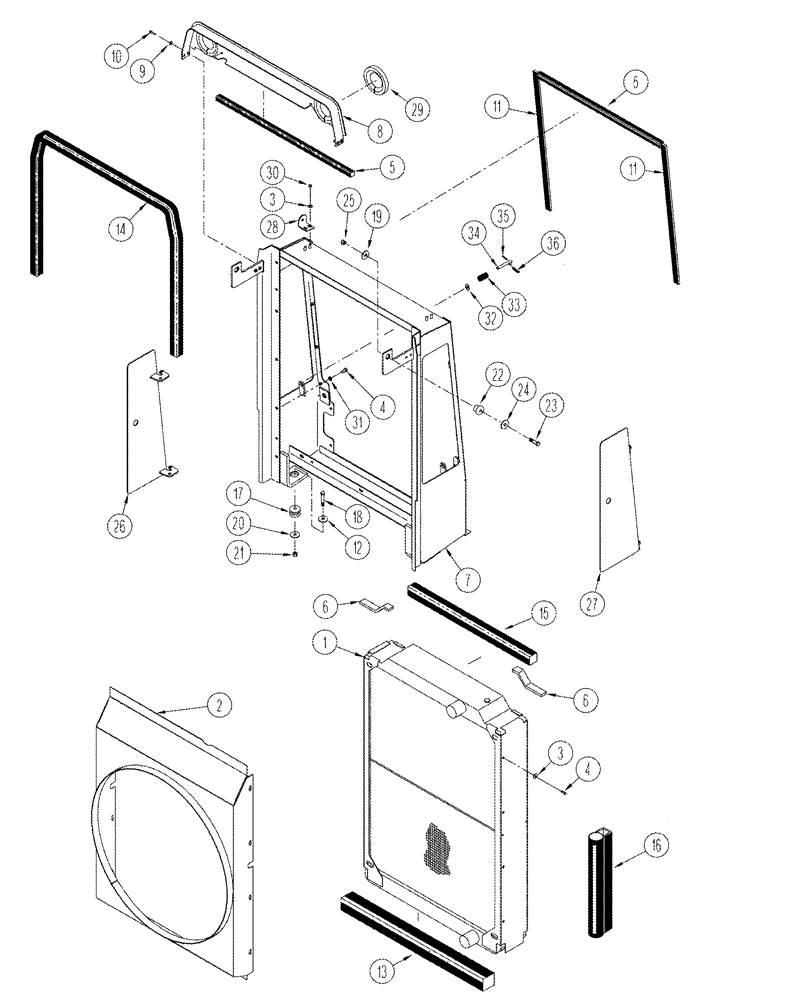

Запчасти Case IH STX325 (02-03) - RADIATOR MOUNTING STX 325 TRACTOR (02) - ENGINE

1

259331A1

RADIATOR

1шт.

2

298266A2

SHROUD

1шт.

4

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

18шт.

5

336684A1

SEAL

811 mm (32 in.)

1шт.

6

336689A1

SEAL

200 mm (8 in.)

2шт.

7

382903A1

FRAME

1шт.

8

373582A2

BRACKET

hood

1шт.

9

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

14шт.

10

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

14шт.

11

336686A1

SEAL

725 mm (29-1/2 in.)

2шт.

12

19-961

WASHER,17/32" x 1 1/2" x 1/8"

2шт.

13

336685A1

SEAL

835 mm (33 in.)

1шт.

14

336690A1

SEAL

2660 mm (105 in.), cut from 90-6833T1

1шт.

15

336688A1

SEAL

845 mm (33 in.)

1шт.

16

336691A1

SEAL

342 mm (13 in.), cut from 90-2894TA1

2шт.

17

47-4208

RUBBER BUSHING

2шт.

18

827-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

2шт.

19

496-41041

WASHER,13/32" x 1 1/8" x .134"

2шт.

20

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

21

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

22

179601A1

RUBBER BLOCK

RUBBER BLOCK

2шт.

23

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

25

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

26

380779A2

DOOR

cooler access, left-hand

1шт.

27

380778A2

DOOR

cooler access, right-hand

1шт.

28

361250A1

BRACKET

mounting, air cooler

2шт.

29

364921A1

SEAL

cut from 90-2894T1

2шт.

30

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

31

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

33

L129280

SPRING

2шт.

34

381794A1

ROD

cooler access door

2шт.

35

38-3816

PIN,1/8" x 1", Coiled

2шт.

36

19-5380

PIN

2шт.

32

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

3

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

24

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
