Запчасти Case IH STX325 (06-31) - POWER TAKEOFF LUBRICATION (06) - POWER TRAIN

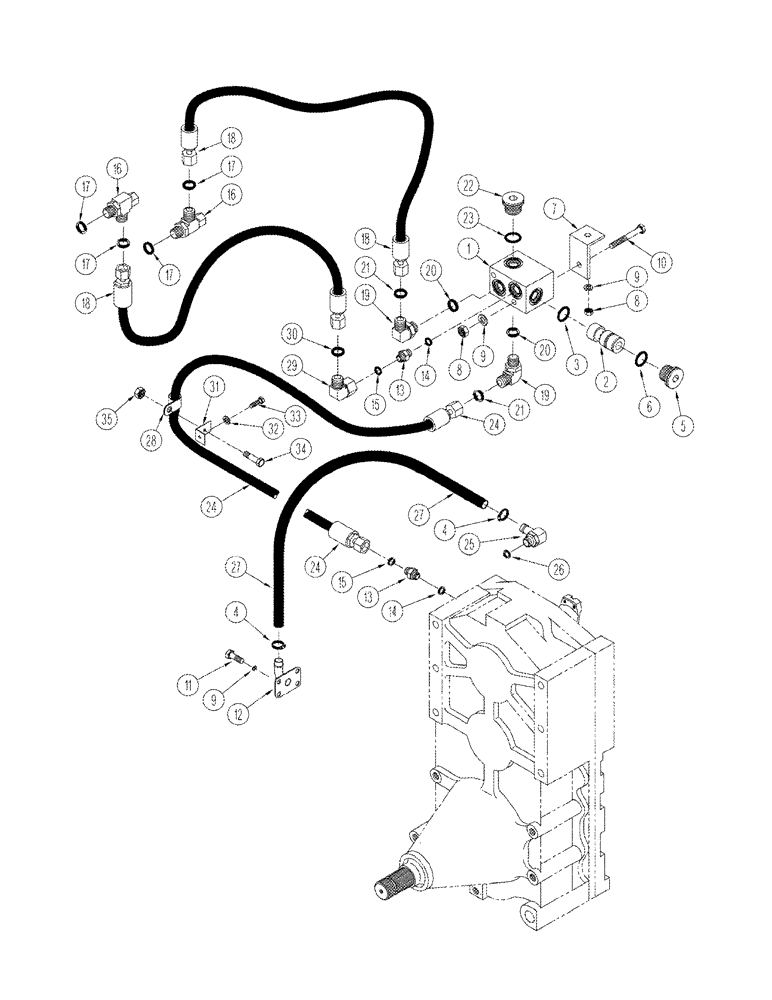

Схема запчастей Case IH STX325 - (06-31) - POWER TAKEOFF LUBRICATION (06) - POWER TRAIN
32
19
5
6
16
17
17
3
9
4
18
22
4
33
31
15
8
19
27
18
20
13
12
24
18
13
10
11
14
23
9
24
17
20
29
16
26
1
25
34
27
21
28
30
9
14
2
24
35
7
15
21
17
8

Артикул

Название

Примечание

Количество

1

370157A1

BODY

jet pump

1шт.

2

347294A3

PUMP

jet

1шт.

3

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

1шт.

4

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

2шт.

5

221580A1

PLUG,M27 x 2 ORB

Includes Ref. 6

1шт.

6

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

7

370163A1

BRACKET

1шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

10

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

1шт.

11

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

12

90-7256T1

FITTING

1шт.

13

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. Ref. 14 and 15

2шт.

14

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

16

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. Ref. 17

2шт.

17

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

18

365039A1

HOSE

430 mm (17 in.)

2шт.

19

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. Ref. 20 and 21

2шт.

20

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

21

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

22

221578A1

PLUG,M18 x 1.5 ORB

Includes Ref. 23

1шт.

23

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

24

366702A2

HOSE

1975 mm (77-1/2 in.)

1шт.

25

370246A1

ELBOW

M33 orb x 2.0, Includes: Ref. 26

1шт.

26

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

27

366701A1

HOSE

1092 mm (43 in.), cut from 31-2755

1шт.

28

515-25238

CLAMP,15/16", Insul, 1/2" Bolt

1шт.

29

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. Ref. 30

1шт.

30

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

31

90-6894T1

SUPPORT

1шт.

32

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

33

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

34

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

35

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

Выбрано товаров: 35
