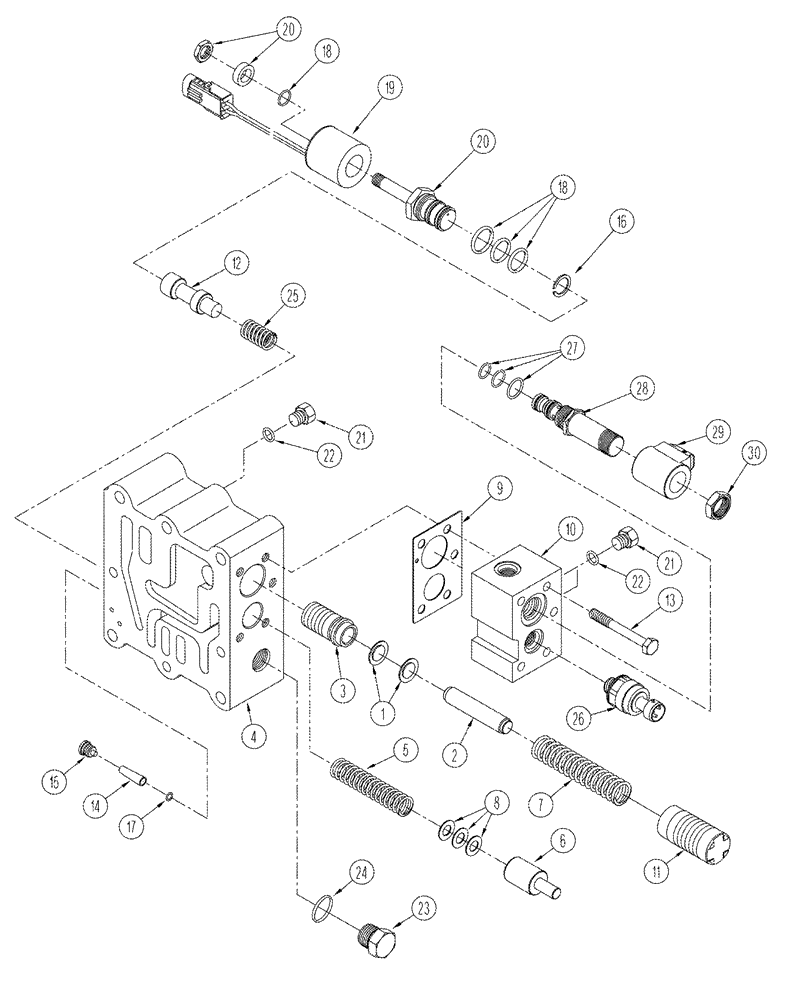

Запчасти Case IH STX325 (06-13) - REGULATOR VALVE ASSY (06) - POWER TRAIN

385957A1

VALVE

consists of: Ref. 1 - 24

1шт.

1

395752A1

SHIM

1 mm

1шт.

2

385780A1

ROD

pressure

1шт.

3

385781A1

VALVE

1шт.

4

370590A2

VALVE BODY

1шт.

5

398443A1

SPRING

2шт.

6

398444A1

VALVE

lube

1шт.

7

370591A1

SPRING

1шт.

8

398445A1

SHIM,0.79mm Thk

0.79 mm

1шт.

9

370593A1

GASKET

1шт.

10

385778A1

VALVE BODY

1шт.

11

391884A1

PISTON

1шт.

12

370597A1

SPOOL

1шт.

13

426-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 8

5шт.

14

33-1538T1

FILTER

1шт.

15

33-1539T1

PLUG

1шт.

16

33-1534T1

RING, SNAP

RING SNAP

1шт.

17

33-1537T1

O-RING

filter

1шт.

371737A1

SOLENOID VALVE

three-way, consists of: Ref. 18 - 20

1шт.

371737A1R

REMAN-SOLENOID

STX275 , STX 275

1шт.

371737A1C

CORE-SOLENOID

Return Number

1шт.

18

371738A1

O-RING KIT

O-ring

1шт.

19

371739A1

COIL

1шт.

20

370600A1

SOLENOID VALVE

1шт.

398441A1

GASKET KIT

transmission repair, short, see Figures 06-09, 06-10, 06-14, Includes: Ref. 9

1шт.

398440A1

GASKET KIT

transmission repair, see Figures 06-09, 06-10, 06-14, 06-15, 06-18, 06-22, 06-23, 06-24, Includes: Ref. 9 and 18

1шт.

21

220064A1

PLUG,M14 x 1.5, ORB

Incl. Ref. 22

2шт.

22

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

23

220066A1

PLUG,M18 x 1.5, ORB

Includes Ref. 24

1шт.

24

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

25

370596A1

SPRING

1шт.

26

231751A1

PRESSURE SWITCH

pressure

1шт.

239552A2

SOLENOID VALVE

pulse with modulation, consists of: Ref. 27 - 30

1шт.

27

308245A1

SEAL KIT

1шт.

28

304831A1

SPOOL

1шт.

29

304834A1

SOLENOID

1шт.

30

NSS

NOT SOLD SEPARAT

NUT

1шт.
