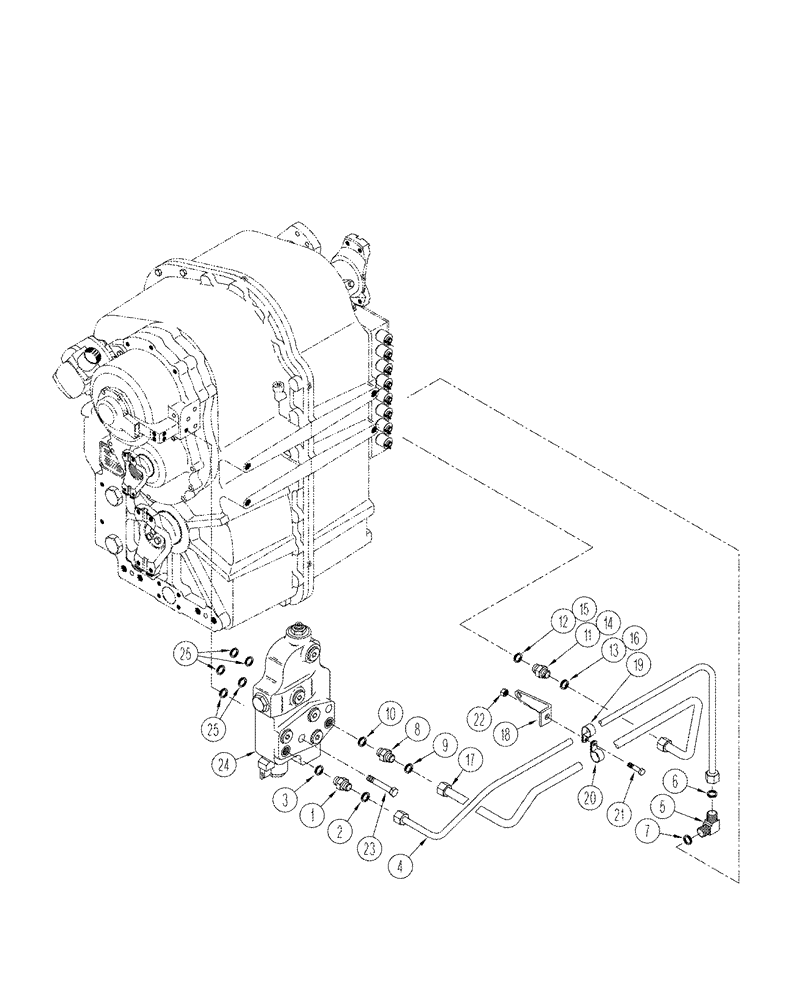

Запчасти Case IH STX325 (06-08) - POWER TAKEOFF CLUTCH LUBRICATION (06) - POWER TRAIN

1

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 2, 3

1шт.

2

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

3

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

4

334860A2

TUBE

1шт.

5

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Includes: Ref. 6 and 7

1шт.

6

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. Ref. 9 and 10

1шт.

9

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

10

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

11

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Prior to PIN JEE0097600, Includes Ref. 12 and 13, Serial Range: -JEE0097600

1шт.

12

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

After PIN JEE0097600, Includes Ref. 15 and 16, Start Serial: JEE0097600

1шт.

15

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

16

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

17

334862A1

TUBE

1шт.

18

334976A2

BRACKET

1шт.

19

515-2195

CLAMP,3/8", Insul, 1/4" Bolt

1шт.

20

515-21127

CLAMP,1/2", Insul, 1/4" Bolt

1шт.

21

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

22

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

23

828-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

1шт.

24

338820A1

VALVE

power takeoff, see Figure 06-16

1шт.

25

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

5шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
