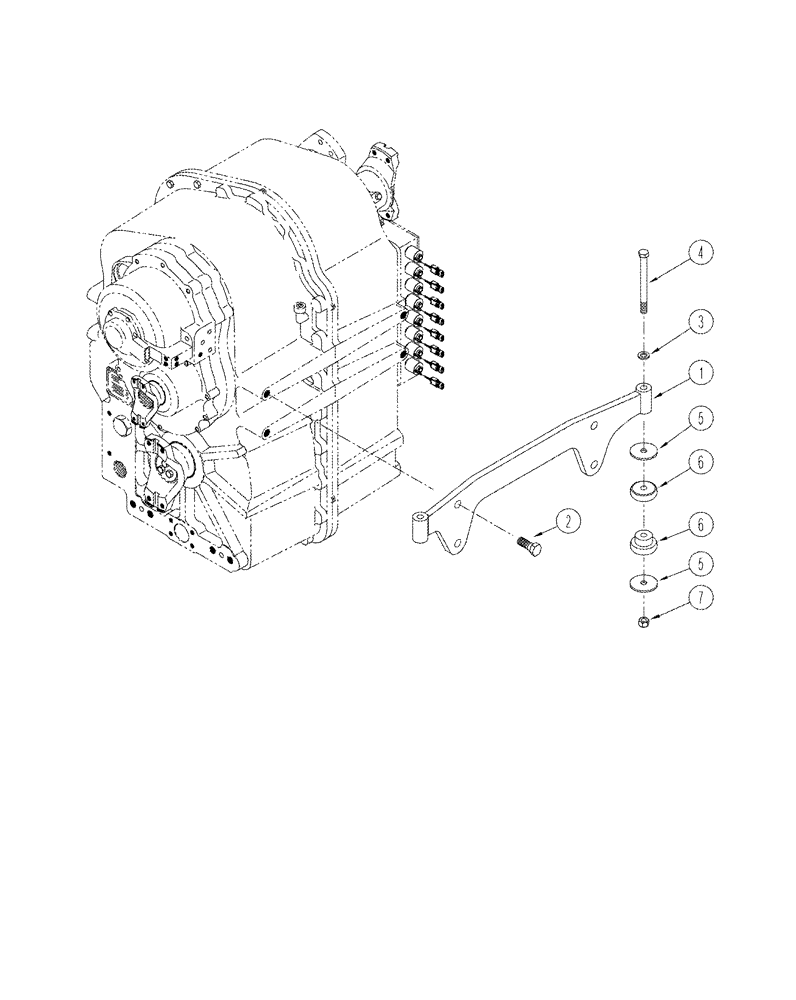

Запчасти Case IH STX325 (06-05) - TRANSMISSION MOUNTING, POWER SHIFT TRANSMISSION (06) - POWER TRAIN

403066A1

TRANSMISSION

TRANSMISSION, 8.5C Yoke, 16 SPD

1шт.

87627458R

REMAN-TRANSMISSION

TRANSMISSION, 8.5C Yoke, 16 SPD

1шт.

87627458C

CORE-TRANSMISSION

Return Part Number, PS3

1шт.

87416587

TRANSMISSION

TRANSMISSION, Closed Loop PS3 - 8C

1шт.

87627456R

REMAN-TRANSMISSION

TRANSMISSION, Closed Loop PS3 - 8C

1шт.

87627456C

CORE-TRANSMISSION

Return Part Number

1шт.

1

259669A1

PLATE

mounting

2шт.

2

627-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

8шт.

3

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

4

827-16180

BOLT,Hex, M16 x 2 x 180mm, Cl 10.9

4шт.

5

227809A1

WASHER

16.7 x 71.4 x 4.8 mm

8шт.

6

227810A1

RUBBER MOUNTING

4шт.

7

832-10416

NUT,M16 x 2, Cl 8

4шт.
