Запчасти Case IH STX325 (06-03) - WHEELS SINGLE AND DUALS WITH SPACERS (06) - POWER TRAIN

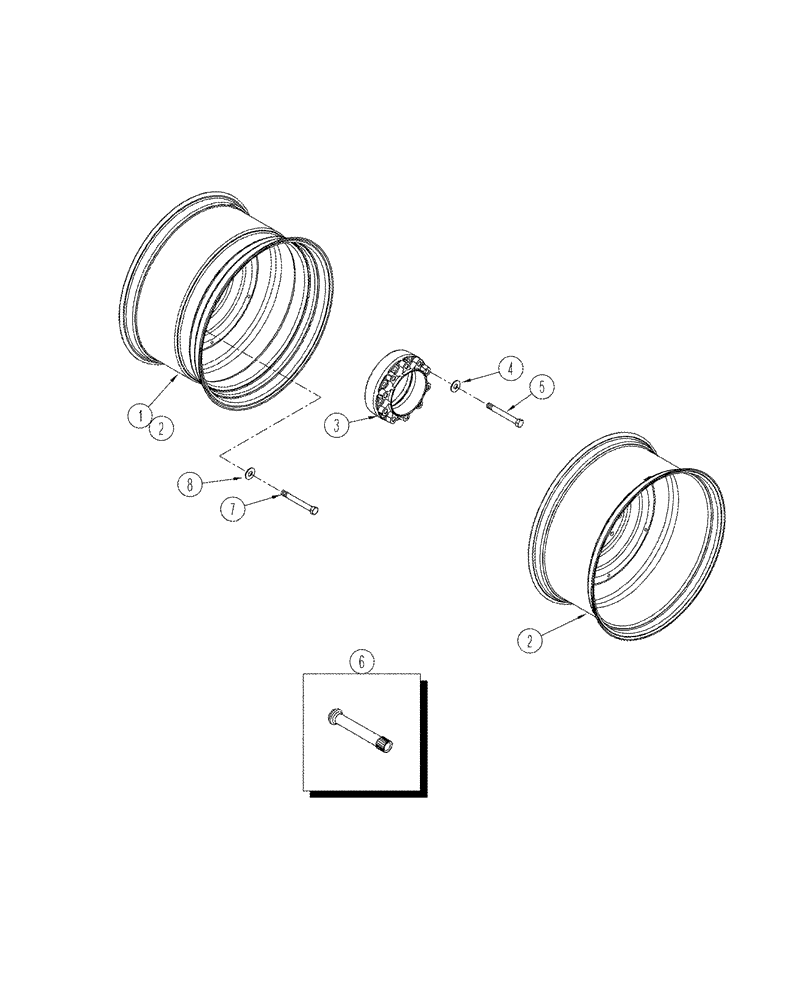

Схема запчастей Case IH STX325 - (06-03) - WHEELS SINGLE AND DUALS WITH SPACERS (06) - POWER TRAIN
2
4
8
1
6
5
2
7
3

Артикул

Название

Примечание

Количество

1

196488A1

WHEEL

single or dual, W16A x 46

1шт.

1

222665A1

WHEEL

single or dual, W18A x 38

1шт.

1

193857A1

WHEEL

single or dual, W18A x 42

1шт.

1

305792A1

RIM

single, MW23A x 42

4шт.

1

193273A1

WHEEL

single, 27 x 32

4шт.

1

311352A1

WHEEL

single, 28 x 42

4шт.

1

403037A1

RIM

single, MW25 x 38

4шт.

2

196254A1

WHEEL

dual, W13 x 46

8шт.

2

326630A1

WHEEL

dual, 12 x 54, STX 275 (8)

1шт.

2

221362A1

WHEEL

single or dual, W16A x 42

8шт.

2

376687A1

dual, 19 x 42, STX 325 (8)

1шт.

311363A1

KIT

254 mm (10 in.), consists of: Ref. 3 - 5

4шт.

311364A1

KIT

330 mm (13 in.), consists of: Ref. 3 - 5

4шт.

3b

250750A3

SPACER

127 mm (5 in.)

1шт.

3c

248484A3

SPACER

254 mm (10 in.)

1шт.

3d

248487A3

SPACER

330 mm (13 in.)

1шт.

4

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

10шт.

5

827-22160

BOLT,Hex, M22 x 2.5 x 160mm, Cl 10.9

Used with 3A

10шт.

5

827-22130

BOLT,Hex, M22 x 2.5 x 130mm, Cl 10.9

Used with 3B, 3C

10шт.

6

A20058

VALVE STEM

1шт.

7

827-22080

BOLT,Hex, M22 x 2.5 x 80mm, Cl 10.9

40шт.

8

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

40шт.

Выбрано товаров: 22
