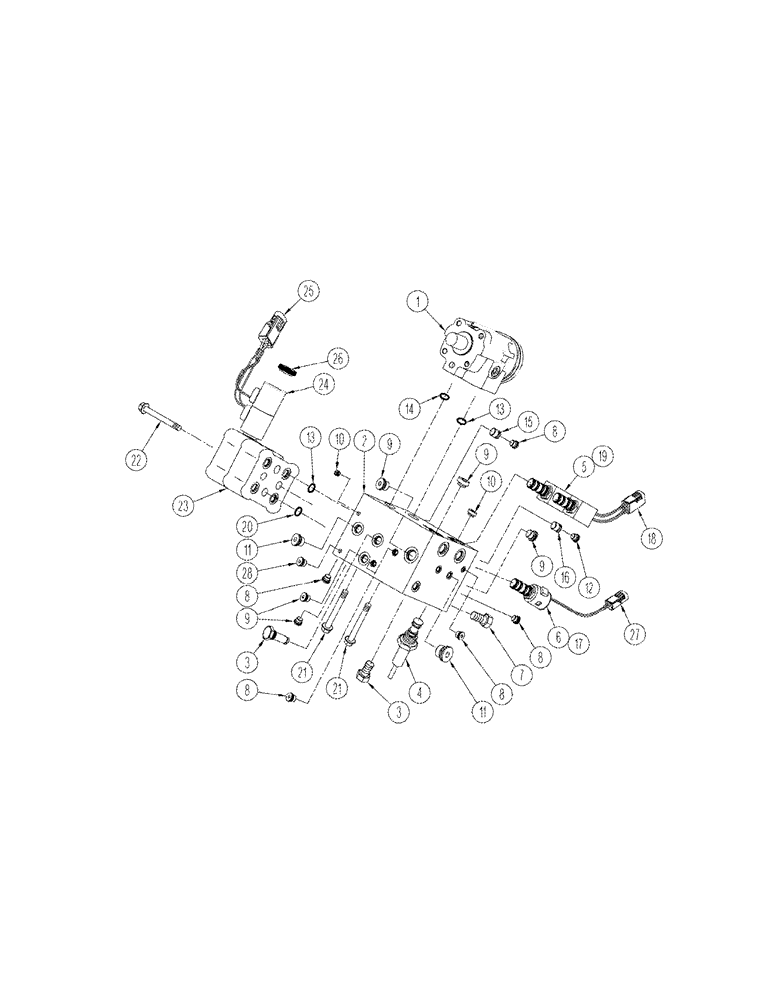

Запчасти Case IH STX325 (05-15) - STEERING CONTROL VALVE ASSY, ACCUSTEER TRACTOR (05) - STEERING

373378A3

VALVE, CONTROL

steering, consists of: Ref. 1 - 25

1шт.

1

374207A1

CONTROL VALVE

steering, see Figure 05-09

1шт.

2

390297A2

VALVE

Includes: Ref. 3 - 19

1шт.

3

389941A1

VALVE

shuttle

2шт.

4

400598A1

BALANCE VALVE

counter

2шт.

5

389945A1

SOLENOID VALVE

2шт.

6

389946A1

VALVE

flow control

1шт.

7

389947A1

VALVE

dual pilot operated

1шт.

8

86632547

PLUG,Hex, 5/16"-24 ORB

20шт.

9

71100209

PLUG,Hex Soc, 3/4"-16 ORB

5шт.

10

NSS

NOT SOLD SEPARAT

PLUG expansion

6шт.

11

9625178

PLUG,9/16" - 18 ORB

5шт.

12

278548

PLUG,Hex, 7/16"-20 ORB

1шт.

13

238-6020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

5шт.

14

238-6024

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

4шт.

15

NSS

NOT SOLD SEPARAT

PLUG

1шт.

16

NSS

NOT SOLD SEPARAT

PLUG

1шт.

17

389948A1

COIL

1шт.

18

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

1шт.

19

389958A1

COIL

2шт.

20

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

2шт.

397024A1

SEAL KIT

seal, Includes: Ref. 4

1шт.

389952A1

SEAL KIT

seal, Includes: Ref. 5

1шт.

21

390301A1

CAP

2шт.

22

390300A1

CAP

2шт.

23

373418A1

VALVE

proportional, consists of: Ref. 24 - 26

1шт.

24

385901A1

COIL

2шт.

25

245487C1

ELEC CONNECTOR,Male, 4 Pin

1шт.

26

402323A1

KNOB

1шт.

27

245482A1

CONNECTOR, ELEC

CONNECTOR

1шт.

28

NSS

NOT SOLD SEPARAT

PLUG

1шт.
