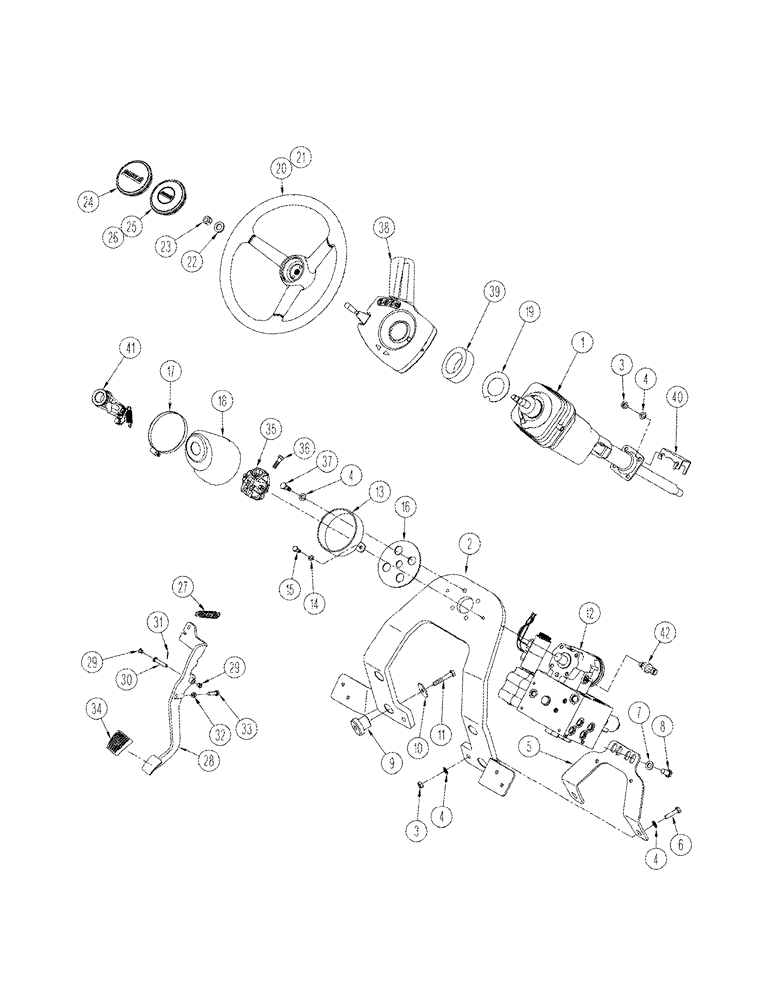

Запчасти Case IH STX325 (05-13) - STEERING WHEEL AND COLUMN ACCUSTEER TRACTOR (05) - STEERING

24

224819A2

CAP

standard cab

1шт.

361024A3

CAP

deluxe cab, luxury cab, Includes: Ref. 25 and 26

1шт.

25

NSS

NOT SOLD SEPARAT

CAP

1шт.

26

NSS

NOT SOLD SEPARAT

INSERT

1шт.

27

311812A1

SPRING

1шт.

28

311748A3

PEDAL

1шт.

29

282892A1

BUSHING,8mm ID x 9.6mm OD x 8mm L

2шт.

30

729-845

CLEVIS PIN,M8 x 45

1шт.

31

733-2012

COTTER PIN,M2 x 12

1шт.

32

829-1508

NUT,M8, Cl 10

1шт.

33

514-633

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

34

323657A1

PAD

foot

1шт.

35

L100096

ISOLATOR

1шт.

36

414-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

2шт.

38

360058A1

CONTROL

transmission, without self cancel, see Figure 05-17

1шт.

38

376785A1

CONTROL

transmission, with self cancel, see Figure 05-17

1шт.

39

253679A1

RING

control assy, used with Ref. 38

1шт.

376785A1

1шт.

40

379462A1

BRACKET

encoder

1шт.

41

60-7128T1

TRANSMITTER

see Figure 05-14

1шт.

42

375644A1

SENSOR

pressure

1шт.

37

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.
