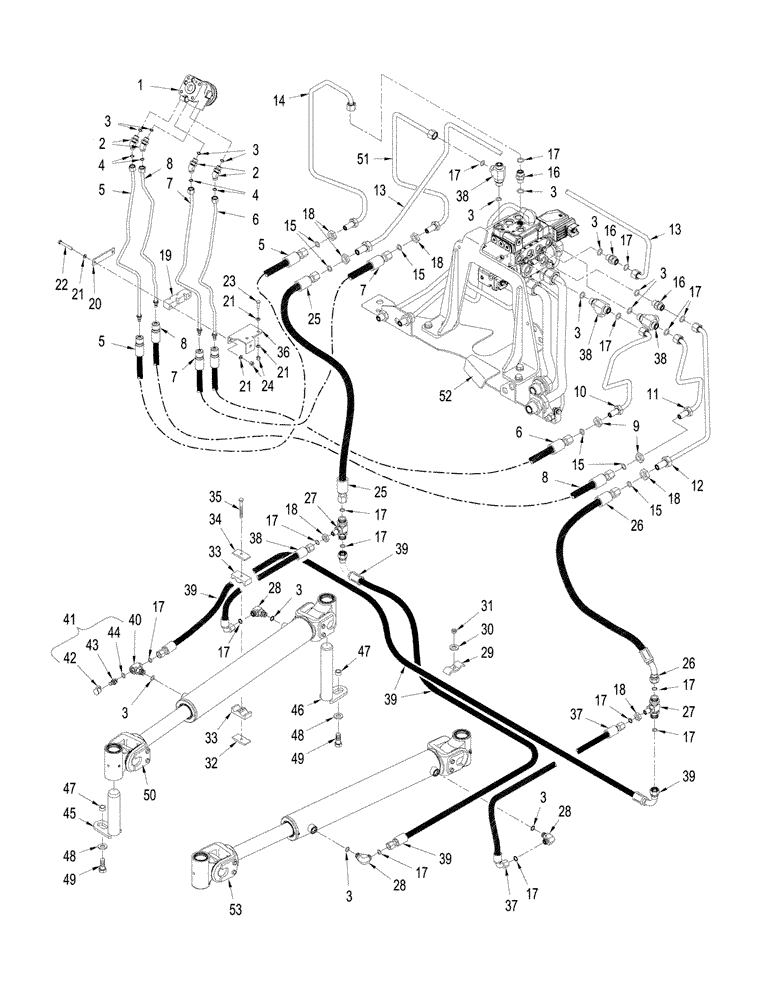

Запчасти Case IH STX280 (05-06) - HYDRAULICS - STEERING, WITH ACCUSTEER (05) - STEERING

1

87426127

HYDRAULIC STEERING

Pilot Steering, See Figure: 05-14

1шт.

2

700-446

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Inc. 3 & 4

4шт.

3

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

5

87308576

TUBE ASSY.,9.52 mm OD

to Port 'T'

1шт.

6

87308652

TUBE ASSY.,9.52 mm OD

to Port 'L'

1шт.

7

87308635

TUBE ASSY.,9.52 mm OD

to Port 'P'

1шт.

8

87308647

TUBE ASSY.,9.52 mm OD

to Port 'R'

1шт.

9

701-909

NUT,11/16" - 16

4шт.

10

87308568

HYD TUBE,12.70 mm OD

Port 'R'

1шт.

11

87308572

HYD TUBE,12.70 mm OD

Port 'L'

1шт.

12

87450242

TUBE,12.7 mm OD

Port 'CR'

1шт.

13

87450949

TUBE,9.4 mm ID x 12.7 mm OD

Port 'CL'

1шт.

14

87351173

TUBE,12.70 mm OD

Port 'TS'

1шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

5шт.

16

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 3 & 17

5шт.

17

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

18

701-903

NUT,13/16" - 16

4шт.

19

87436024

MOUNTING PARTS

Hose Mounting

1шт.

20

87403324

BRACKET

Mounting

1шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

22

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

2шт.

23

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

24

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

25

393606A1

HOSE

LH Articulation Cylinder to Priority Valve, 1752 mm (69")

1шт.

26

393607A1

HOSE

RH Articulation Cylinder to Priority Valve, 1933 mm (76")

1шт.

27

701-452

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Inc. 17

2шт.

28

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 3 & 17

3шт.

29

242563A1

CLAMP

1шт.

30

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

7шт.

31

829-1412

NUT,M12, Cl 10.9

1шт.

32

399431A1

PLATE

Support, Double Hose Clamp

2шт.

33

399102A1

CLAMP

Double Hose

4шт.

34

279519A1

LARGE PLATE

PLATE, LARGE Support, Double Hose Clamp

2шт.

35

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

4шт.

36

87435128

BRACKET, SUPPORTING

Tube Holder

1шт.

37

367244A1

HOSE,12.7mm ID x 550mm L

Return, Articulatin Cylinder to Priority Valve, 550 mm (21-5/8")

2шт.

38

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Inc. 3 & 17

3шт.

39

352114A1

HOSE

Supply, Articulation Cylinder to Priority Valve, 1460 mm (57-7/2")

2шт.

40

364967A1

TEE,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB x M14 x 1.5 Female ORB

Inc. 3 & 17

1шт.

41

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Inc. 42 - 44

1шт.

42

H434163

DUST CAP

1шт.

43

NSS

NOT SOLD SEPARAT

Fitting, Diagnostic, Inc. 44

1шт.

44

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

45

256295A1

PIN

2шт.

46

360493A1

PIN

2шт.

47

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

4шт.

48

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

4шт.

49

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

50

87447305

HYDRAULIC CYLINDER

Articulation, without Sensor, See Figure: 05-12

1шт.

50

87304291R

REMAN-HYD CYLINDER

STEIGER 280, STEIGER 330, Both (ASN Z6F105001) (NA), STX280, STX330, Both CASE IH (BTW Z6F100023 - Z6F105001), All 4WD TRACTOR, Articulation, without Sensor, Reman for New PN 87447305

1шт.

50

87304291C

CORE-HYD CYLINDER

Return Number

1шт.

51

87351175

TUBE,12.70 mm OD

Port 'PS'

1шт.

52

87436467

HYDRAULIC VALVE

Priority / EHPS, See Figure: 08-13, Also See Figure: 08-23 for Mounting Parts, Serial Range: -Z7F105452

1шт.

52

87585899

HYDRAULIC VALVE

Priority / EHPS, See Figure: 08-13, Also See Figure: 08-23 for Mounting Parts, Start Serial: Z7F105452

1шт.

53

87529570

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod

Articulation, with Sensor, See Figure: 05-13, Serial Range: -Z7F105441

1шт.

53

87552144

STEERING CYLINDER

Articulation, with Sensor, See Figure: 05-13 (01), Start Serial: Z7F105441

1шт.
