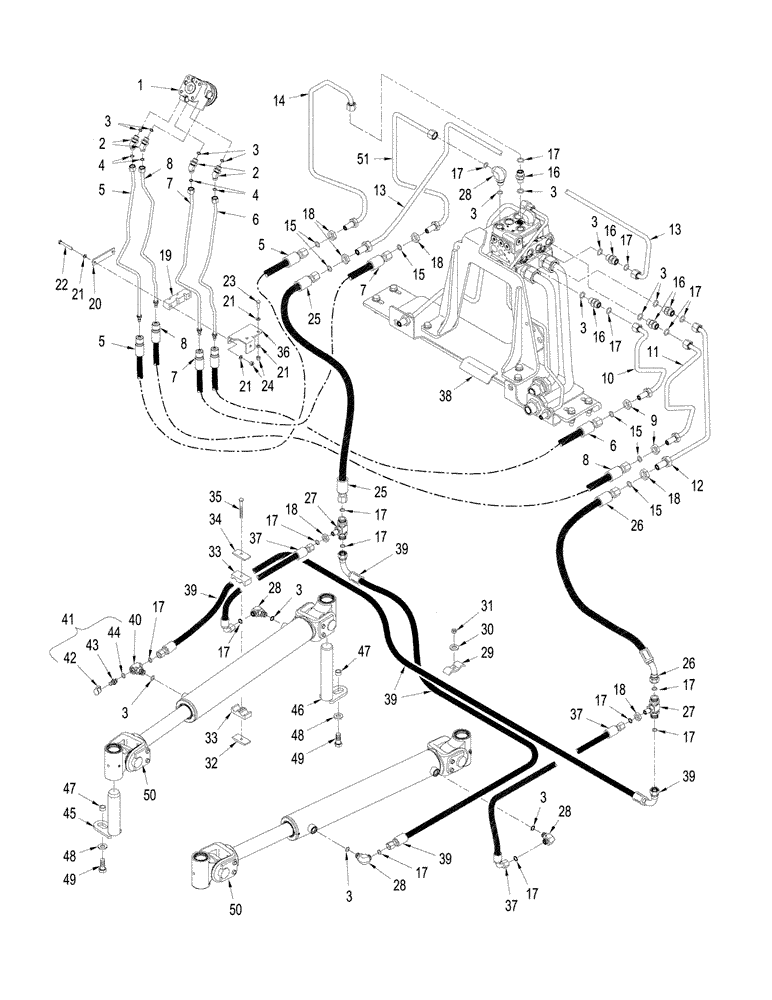

Запчасти Case IH STX280 (05-05) - HYDRAULICS - STEERING, WITHOUT ACCUSTEER (05) - STEERING

1

87426127

HYDRAULIC STEERING

Pilot Steering, See Figure: 05-14

1шт.

2

700-446

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Inc. 3 & 4

4шт.

3

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

5

87308576

TUBE ASSY.,9.52 mm OD

to Port 'T'

1шт.

6

87308652

TUBE ASSY.,9.52 mm OD

to Port 'L'

1шт.

7

87308635

TUBE ASSY.,9.52 mm OD

to Port 'P'

1шт.

8

87308647

TUBE ASSY.,9.52 mm OD

tp Port 'R'

1шт.

9

701-909

NUT,11/16" - 16

4шт.

10

87368663

HYD TUBE,9.4 mm ID x 12.7 mm OD x 284, 186 mm L

Port 'R'

1шт.

11

87368664

HYD TUBE,9.4 mm ID x 12.7 mm OD

Port 'L'

1шт.

12

87368662

HYD TUBE,9.4 mm ID x 12.7 mm OD x 362, 188 mm L

Port 'CR'

1шт.

13

87368661

HYD TUBE,9.4 mm ID x 12.7 mm OD x 332, 280 mm L

Port 'CL'

1шт.

14

87351173

TUBE,12.70 mm OD

Port 'TS'

1шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

5шт.

16

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 3 & 17

5шт.

17

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

18

701-903

NUT,13/16" - 16

4шт.

19

87436024

MOUNTING PARTS

Hose Mounting

1шт.

20

87403324

BRACKET

Mounting

1шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

22

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

2шт.

23

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

24

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

25

393606A1

HOSE

LH Articulation Cylinder to Priority Valve, 1752 mm (69")

1шт.

26

393607A1

HOSE

RH Articulation Cylinder to Priority Valve, 1933 mm (76")

1шт.

27

701-452

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Inc. 17

2шт.

28

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 3 & 17

4шт.

29

242563A1

CLAMP

1шт.

30

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

7шт.

31

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

32

399431A1

PLATE

Single Clamp

2шт.

33

399102A1

CLAMP

Single

4шт.

34

279519A1

LARGE PLATE

PLATE, LARGE Cover

2шт.

35

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

4шт.

36

87435128

BRACKET, SUPPORTING

Tube Holder

1шт.

37

367244A1

HOSE,12.7mm ID x 550mm L

Return, Articulation Cylinder to Priority Valve

2шт.

38

87442925

CONTROL VALVE

Priority / EHPS, See Figure: 08-12, Also See Figure 08-21 for Mounting Parts, Serial Range: -Z7F105376

1шт.

87442925C

CORE-VALVE HYD

CORE-HYD VALVE Return Number, HYDRAULIC VALVE - for N.A. Only

1шт.

38

87585897

HYDRAULIC VALVE

Priority / EHPS, See Figure: 08-12, Also see Figure: 08-21 for Mounting Parts, Start Serial: Z7F105376

1шт.

38

87585897R

REMAN-HYD VALVE

Remanufactured Hydraulic Valve

1шт.

38

87585897C

CORE-VALVE HYD

CORE-HYD VALVE Return Number, HYDRAULIC VALVE

1шт.

39

352114A1

HOSE

Supply, Articulation Cylinder to Priority Valve

2шт.

40

364967A1

TEE,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB x M14 x 1.5 Female ORB

Inc. 3 & 17

1шт.

41

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Inc. 42 - 44

1шт.

42

H434163

DUST CAP

1шт.

43

NSS

NOT SOLD SEPARAT

Fitting, Diagnostic, Inc. 44

1шт.

44

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

45

256295A1

PIN

2шт.

46

360493A1

PIN

2шт.

47

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

4шт.

48

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

4шт.

49

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

50

87447305

HYDRAULIC CYLINDER

Articulation, without Sensor, See Figure: 05-12

2шт.

50

87304291R

REMAN-HYD CYLINDER

STEIGER 280, STEIGER 330, Both (ASN Z6F105001) (NA), STX280, STX330, Both CASE IH (BTW Z6F100023 - Z6F105001), All 4WD TRACTOR, Articulation, without Sensor, Reman for New PN 87447305

2шт.

50

87304291C

CORE-HYD CYLINDER

Return Number

2шт.

51

87351175

TUBE,12.70 mm OD

Port 'PS'

1шт.
